RN9119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> RN9119

RN9119: Description10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size203KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

RN9119 Overview

10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN

RN9119 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

RN9119 Preview

Cross Reference Guide

RN9119 / SRN9119*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1000.0 MHz

9.0 dB Typical

7.0 dB Min

8.5 dB Typical

11.0 dB Max

21.0 dBm Typical

19.0 dBm Min

34.0 dBm Typical

40.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

15.0 Volts

100.0 mA

-55.0 - 85.0 °C

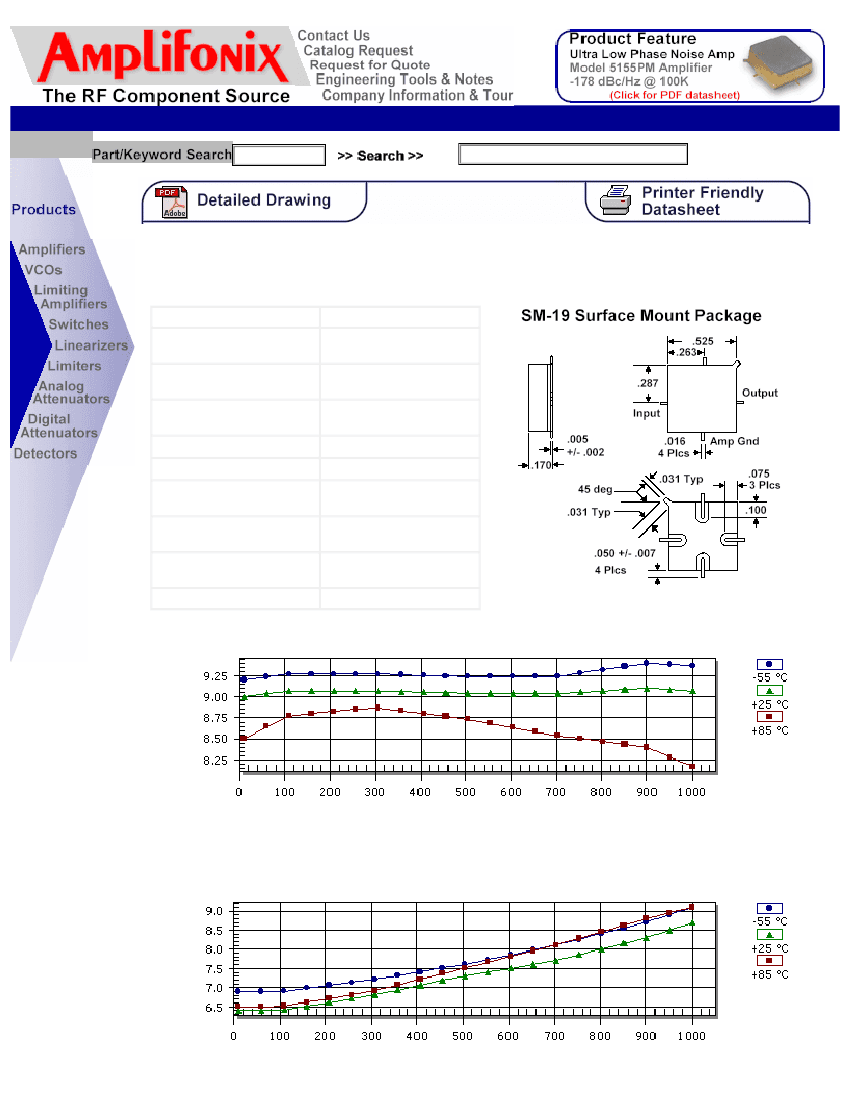

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

Frequency (MHz)

Input VSWR

Frequency (MHz)

Output VSWR

Frequency (MHz)

S-Parameters

Frequency S11 Mag S11 Ang S21 Mag S21 Ang S12 Mag S12 Ang S22 Mag S22 Ang

10.0

100.0

300.0

500.0

700.0

900.0

1000.0

0.150

0.220

0.270

0.190

0.130

-131.00

154.00

101.00

57.00

41.00

26.00

38.00

2.820

2.840

2.830

2.850

2.840

-170.00

157.00

135.00

105.00

75.00

44.00

27.00

0.150

0.170

0.180

0.190

0.210

0.220

13.00

0.00

-5.00

-11.00

-20.00

-31.00

-39.00

0.270

0.210

0.170

0.130

0.080

0.030

0.020

54.00

155.00

144.00

131.00

121.00

101.00

-47.00

Absolute Maximum Conditions

Maximum Operating Temperature

Maximum Case Temperature

Continuous RF Input Power

Maximum Peak Power

(3 µsec max)

-55.0 - 100.0 °C

125.0 °C

18.0 dBm

0.5 W

Maximum Storage Temperature

Maximum Supply Voltage

Short Term RF Input Power

(1 minute max)

-62.0 - 125.0 °C

18.0 Volts

50.0 mW

Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154

Tel: 215.464.4000 | FAX: 215.464.4001 | Email:

info@amplifonix.com

i2 Technologies US, Inc.

15445 Innovation Drive

San Diego, CA 92128

i2 Technologies US, Inc.

HTML Pages converted to PDF Document

This document contain component information from the

manufacturer's website which are not available in a revision

controlled document from the manufacturer. To facilitate the

addition of these parts into the Electronics Database, we are

converting the HTML pages related to that part, from the

manufacturer's website into Adobe PDF format. The contents of this

document is based on the information provided on the

manufacturer's website, therefore the information may have been

changed by the manufacturer since this was created.

Powering the Bottom Line ®

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

RN9119 Related Products

	RN9119	SRN9119
Description	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	7 dB	7 dB
Maximum input power (CW)	18 dBm	18 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
