BU-65612-P0-300 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BU-65612-P0-300

BU-65612-P0-300: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120; CategoryThe embedded processor and controller Microcontrollers and processors; File Size100KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BU-65612-P0-300 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120

BU-65612-P0-300 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	PGA
package instruction	PGA-120
Contacts	120
Reach Compliance Code	compliant
Address bus width
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	S-CPGA-P120
length	33.528 mm
Number of serial I/Os	2
Number of terminals	120
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum seat height	4.7498 mm
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	33.528 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

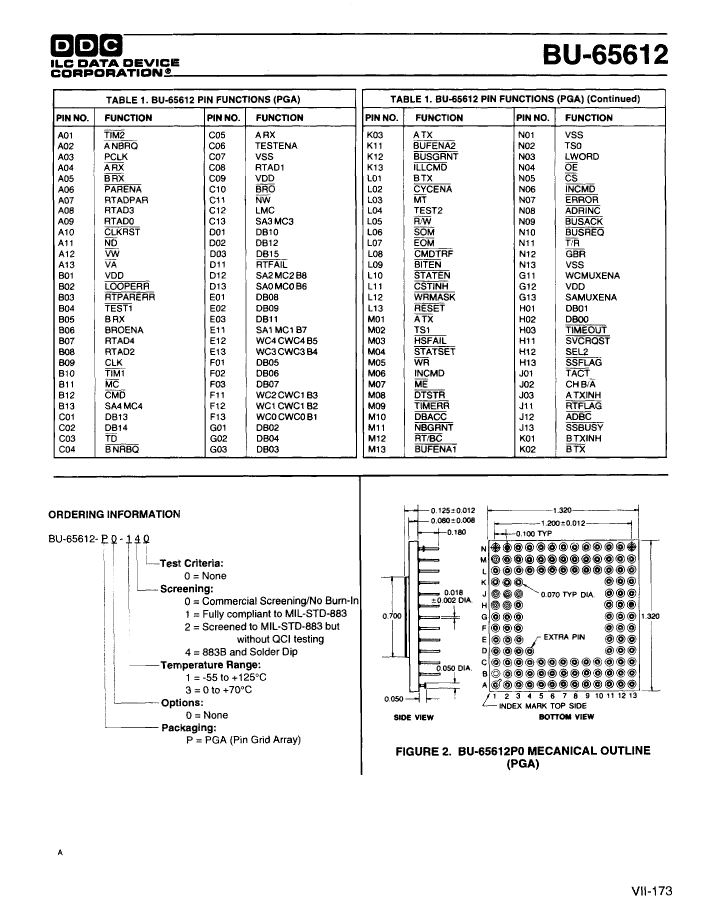

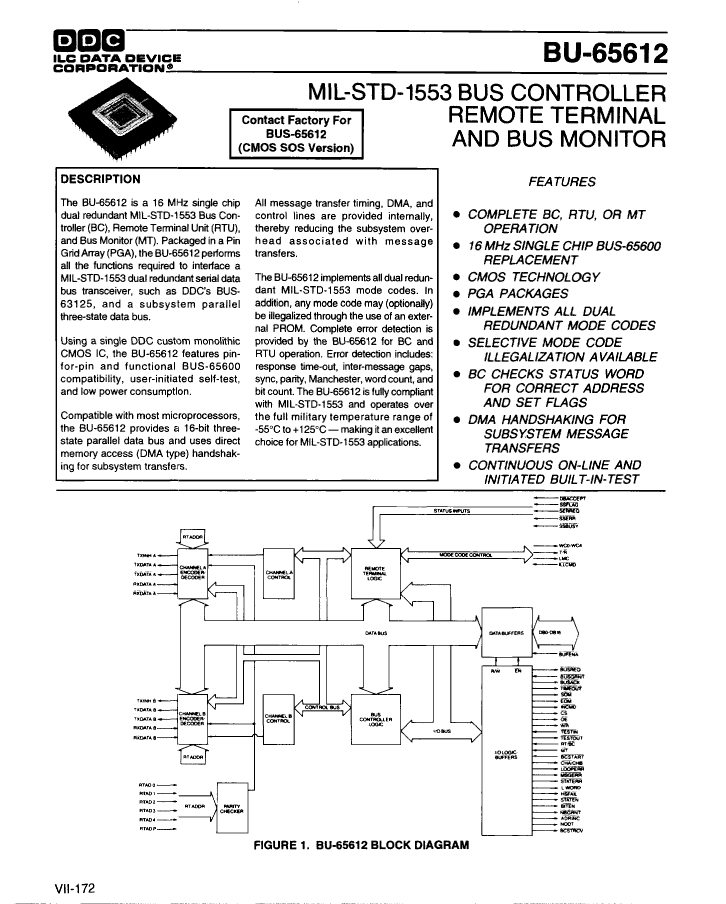

BU-65612-P0-300 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BU-65612-P0-300 Related Products

	BU-65612-P0-300	BU-65612-P0-100	BU-65612-P0-110	BU-65612-P0-120	BU-65612-P0-140
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA120, PGA-120
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	PGA	PGA	PGA	PGA	PGA
package instruction	PGA-120	PGA-120	PGA-120	PGA-120	PGA-120
Contacts	120	120	120	120	120
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
letter of agreement	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16	16
JESD-30 code	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120	S-CPGA-P120
length	33.528 mm	33.528 mm	33.528 mm	33.528 mm	33.528 mm
Number of serial I/Os	2	2	2	2	2
Number of terminals	120	120	120	120	120
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.7498 mm	4.7498 mm	4.7498 mm	4.7498 mm	4.7498 mm
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
width	33.528 mm	33.528 mm	33.528 mm	33.528 mm	33.528 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Filter level	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
