ELD-1124T datasheet, PDF - EEWORLD Datasheet

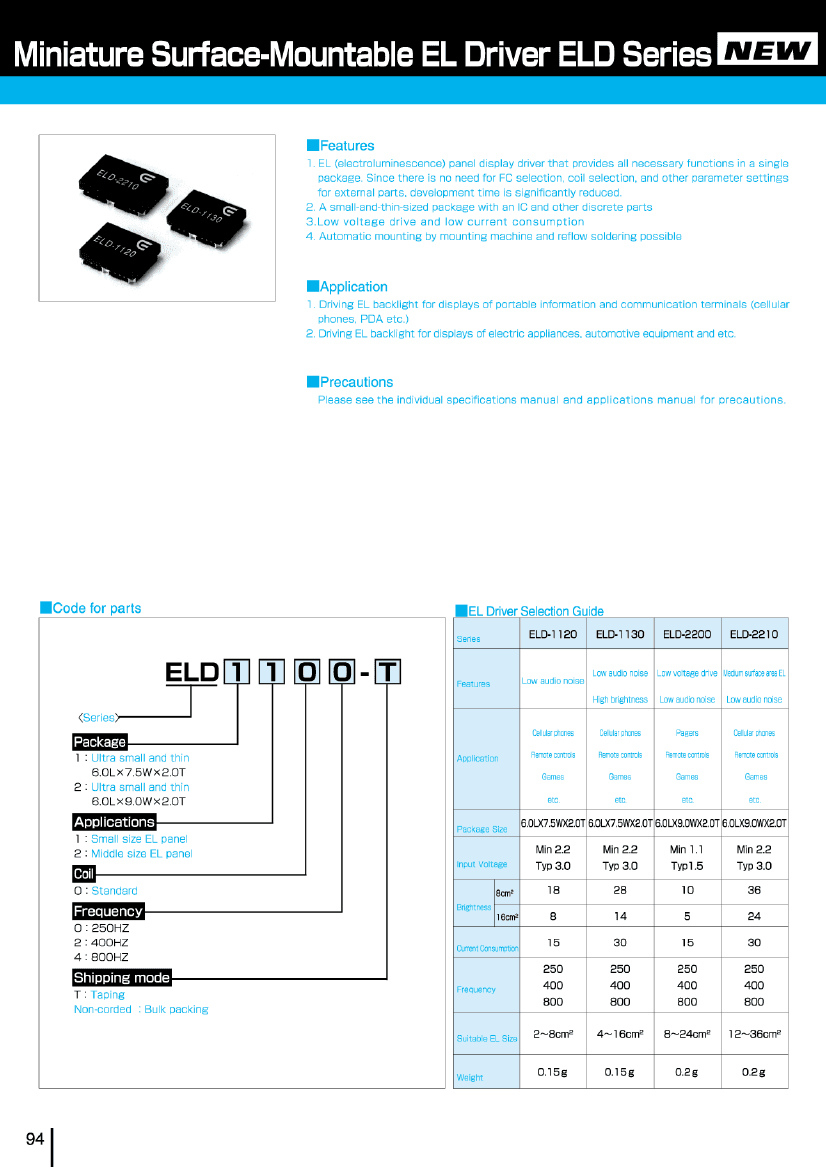

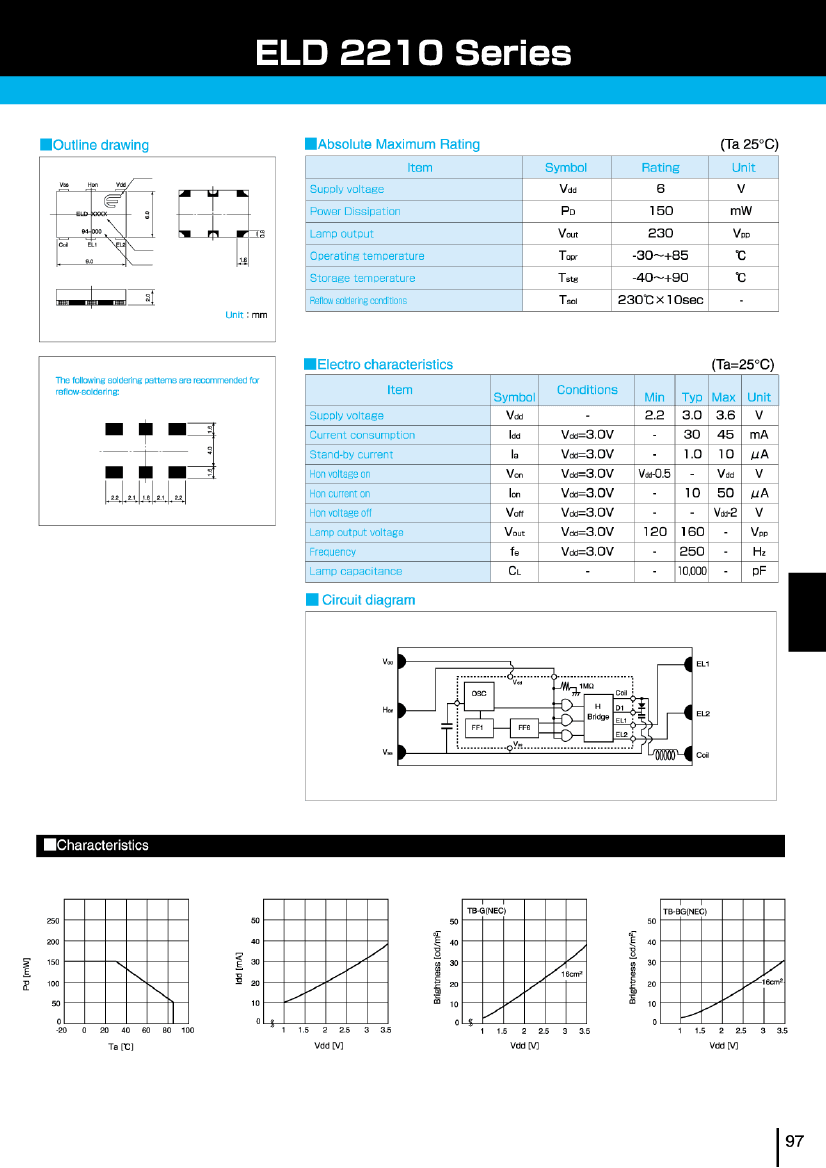

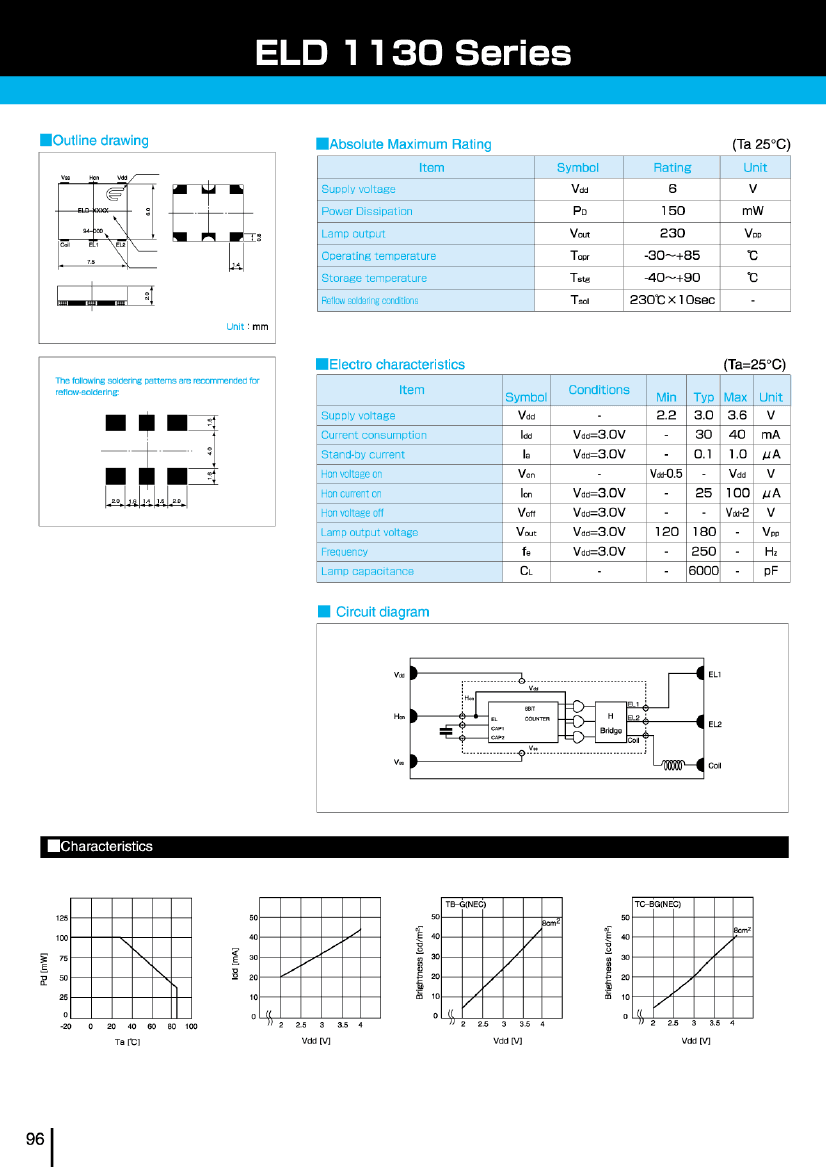

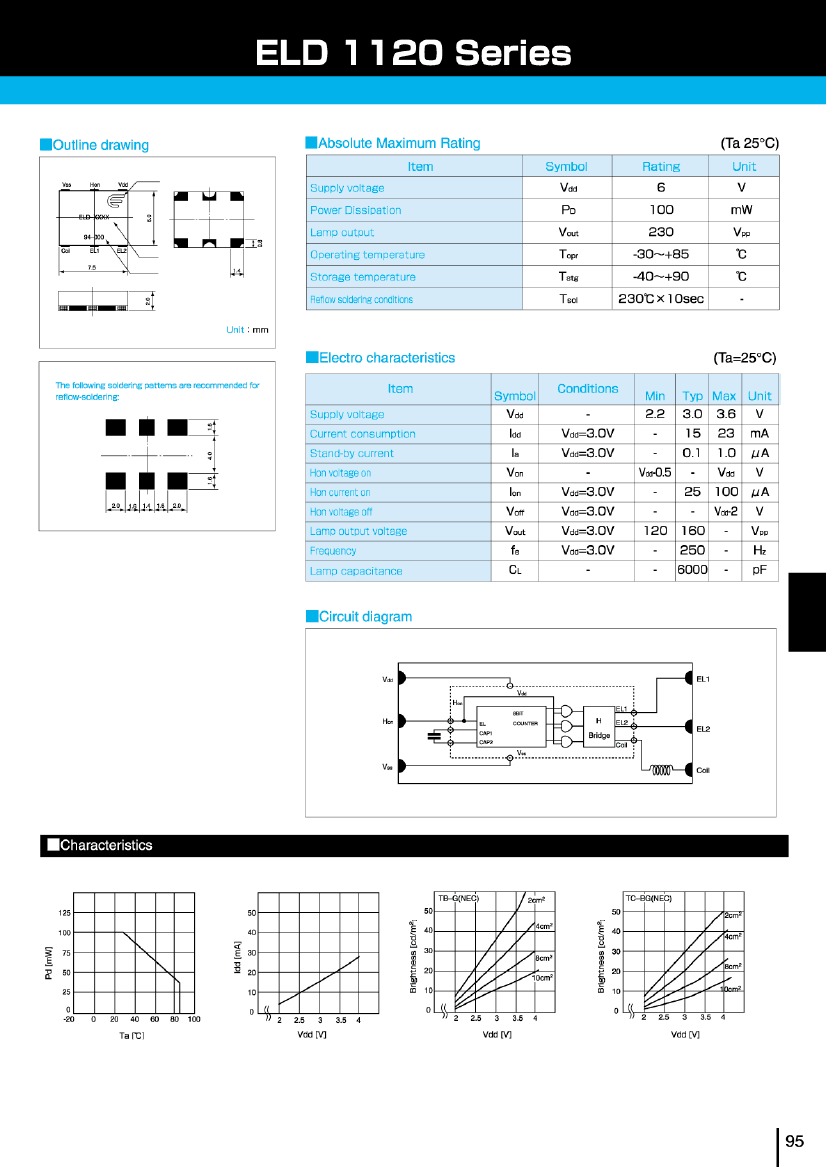

ELD-1124T: DescriptionEL Driver, 1-Segment, 6 X 7.50 MM, 2 MM HEIGHT, PACKAGE-6; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size453KB，6 Pages; ManufacturerFCT electronic

Download Datasheet Parametric View All

ELD-1124T Overview

EL Driver, 1-Segment, 6 X 7.50 MM, 2 MM HEIGHT, PACKAGE-6

Parameter Name	Attribute value
Maker	FCT electronic
Parts packaging code	SOIC
package instruction	6 X 7.50 MM, 2 MM HEIGHT, PACKAGE-6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Interface integrated circuit type	EL DISPLAY DRIVER
JESD-30 code	R-XDSO-N6
length	7.5 mm
Multiplex display function	NO
Number of functions	1
Number of segments	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	UNSPECIFIED
encapsulated code	SON
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.2 V
Nominal supply voltage	3 V
surface mount	YES
Temperature level	OTHER
Terminal form	NO LEAD
Terminal pitch	3.3 mm
Terminal location	DUAL
width	6 mm
