Power Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-257, Metal, 3 Pin,

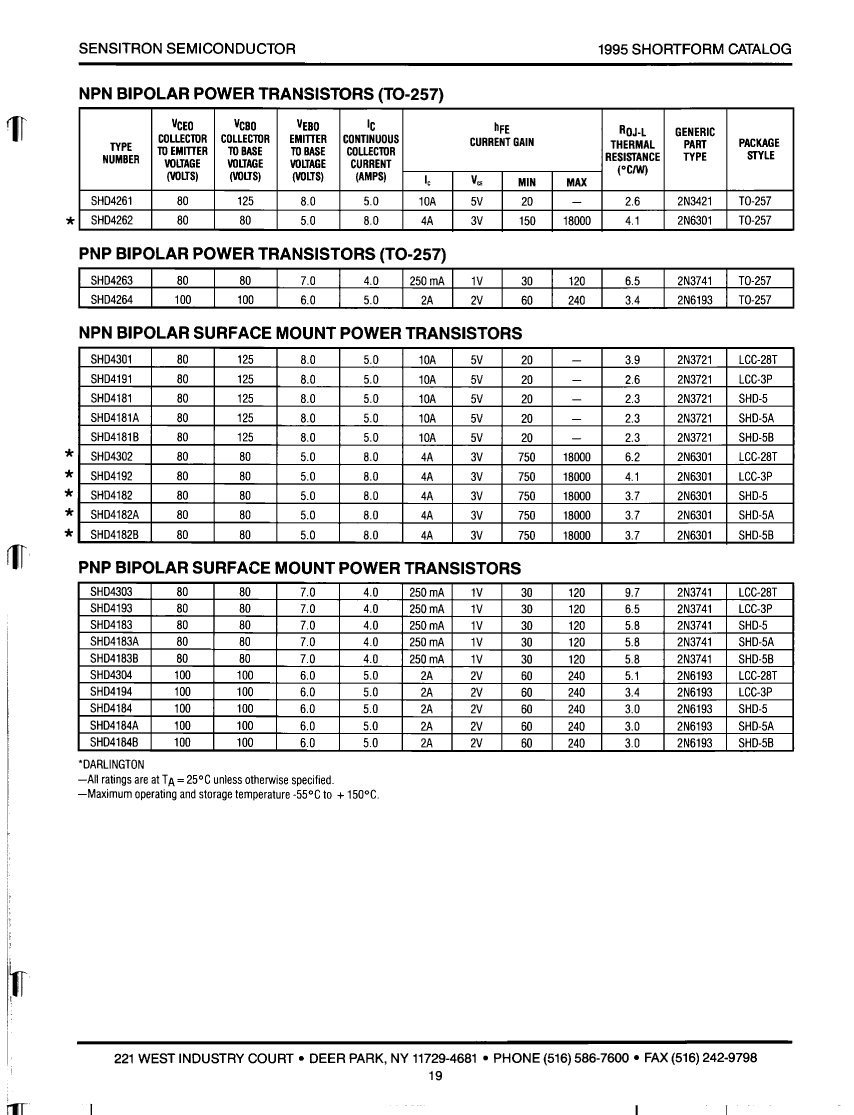

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | SENSITRON |
| package instruction | FLANGE MOUNT, R-MSFM-P3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 5 A |
| Collector-emitter maximum voltage | 80 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 20 |
| JEDEC-95 code | TO-257 |
| JESD-30 code | R-MSFM-P3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | METAL |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | PIN/PEG |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| SHD4261C | SHD4263C | SHD4263B | SHD4264B | SHD4264C | SHD4262B | SHD4262C | SHD4261B | |
|---|---|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 8A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 8A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-257, Metal, 3 Pin, | Power Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-257, Metal, 3 Pin, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON |
| package instruction | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 5 A | 4 A | 4 A | 5 A | 5 A | 8 A | 8 A | 5 A |
| Collector-emitter maximum voltage | 80 V | 80 V | 80 V | 100 V | 100 V | 80 V | 80 V | 80 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | DARLINGTON | DARLINGTON | SINGLE |
| Minimum DC current gain (hFE) | 20 | 30 | 30 | 60 | 60 | 150 | 150 | 20 |
| JEDEC-95 code | TO-257 | TO-257 | TO-257 | TO-257 | TO-257 | TO-257 | TO-257 | TO-257 |
| JESD-30 code | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | PNP | PNP | PNP | PNP | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
