AIF04ZPFC-01NNT datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AIF04ZPFC-01NNT

AIF04ZPFC-01NNT: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 1600W, Hybrid; CategoryPower/power management The power supply circuit; File Size114KB，2 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

AIF04ZPFC-01NNT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AIF04ZPFC-01NNT	-	-	View	Buy Now

AIF04ZPFC-01NNT Overview

AC-DC Regulated Power Supply Module, 1 Output, 1600W, Hybrid

AIF04ZPFC-01NNT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vertiv
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	85 V
JESD-30 code	R-XXMA-P24
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	24
Maximum output voltage	380 V
Minimum output voltage	288.8 V
Nominal output voltage	380 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1600 W
Fine-tuning/adjustable output	YES

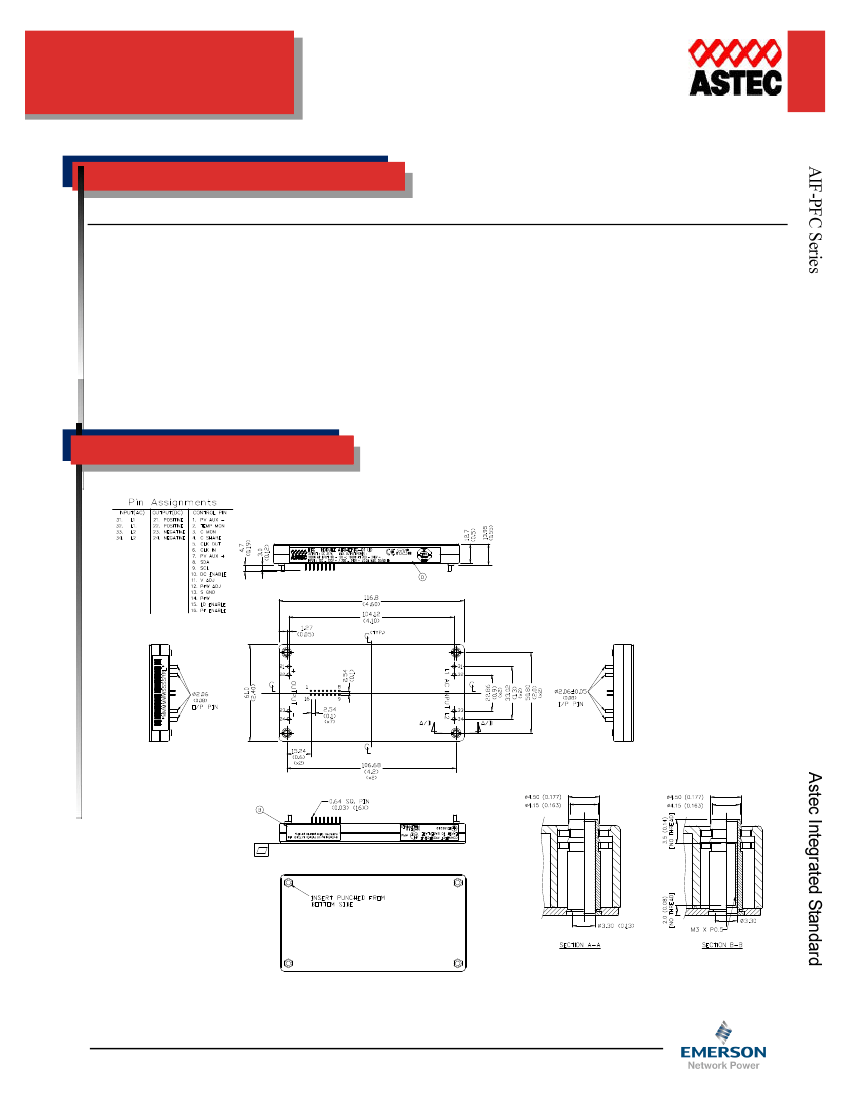

Preview

Download Datasheet

View All

1600 Watts

Total Power:

Input Voltages:

No. of Outputs:

1600 Watts

85 - 264VAC

Single

AIF - PFC Series

Electrical Specs

Input

Input range

Input Surge

Input Frequency

Efficiency

85 - 264VAC / 120 - 370VDC

(Configurable)

290VAC / 1s

50/60 Hz

95% (VI = 230Vac)

92% (VI = 115Vac)

Total Harmonic Distortion Less than 10%

Power Factor

0.99 typical (Po

≥

500W);

0.97 typical (Po

≥

1000W)

Special Features

•

Unity power factor

High efficiency - up to 95%

Universal input voltage and frequency range

Up to 1600W output power

Positive and Negative enable function

Parallelable with accurate current sharing

<10% harmonic distortion conforming to

IEC1000-3-2 Compliance

100°C baseplate operating temperature

DC Input option

Power fail warning signal

Enable output to control DC-DC Converter

EEPROM data storage via I2C Interface

External inrush current limited protection

Power Density up to 290W/in

Control

Power Fail Warning

Direct drive output to opto-isolator

Power Fail Warning Adjust 195 to 355Vdc adjustable

LD Enable

Direct drive output to opto-isolator

PFC Enable

TTL compatiable

Voltage Adjust

60% to 100% Vo

DC Input Enable

Clock Input (external sync)6Vp-p typical @ 1MHz ± 5%

Clock Output (int. clock) 6Vp-p typical @ 1MHz ± 5%

Temperature

Monitor Output

10mV/°C

Current Monitor Output

0 to 1mA (1mA = 4.2A output)

2C Interface

Output

Output Voltage

Current Share Accuracy

Overvoltage Protection

Power Limit for AC input

380V typical(Io =4.2A)

393V typical (Io = 0A)

10% max

430 max

Vin = 85Vac, Pmax = 1000W

Vin = 230Vac, Pmax = 1600W

Vin = 370Vdc, Pmax =1600W

Environmental

Operating temperature

-40°C to +100°C (baseplate temperature)

Storage temperature: -40°C to +120°C

Overtemperature protection: 120°C max

MTBF: 1 million hours

for DC input

Not

Nominal values apply with sense pins connected and other

control pin unconnected.

Specifications subject to change without notice.

Safety

cUL

TUV

EN60950 Licensed

CE Mark

1950 Recognized

Technical Support : (888) 41 - ASTEC or (407) 241-2752

Americas : (760) 930-4600

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
