DJ80A-300L-240F17 datasheet, PDF

DJ80A-300L-240F17: Description1-OUTPUT 400W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size81KB，2 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric Compare View All

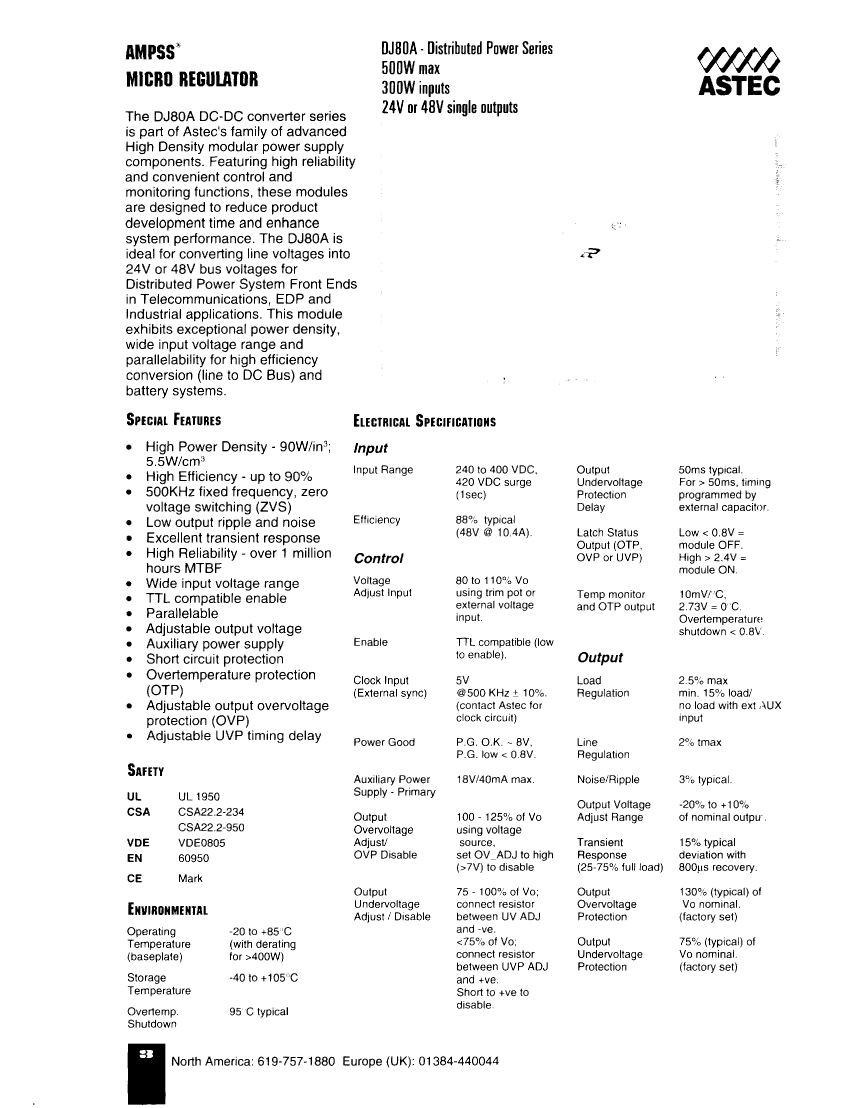

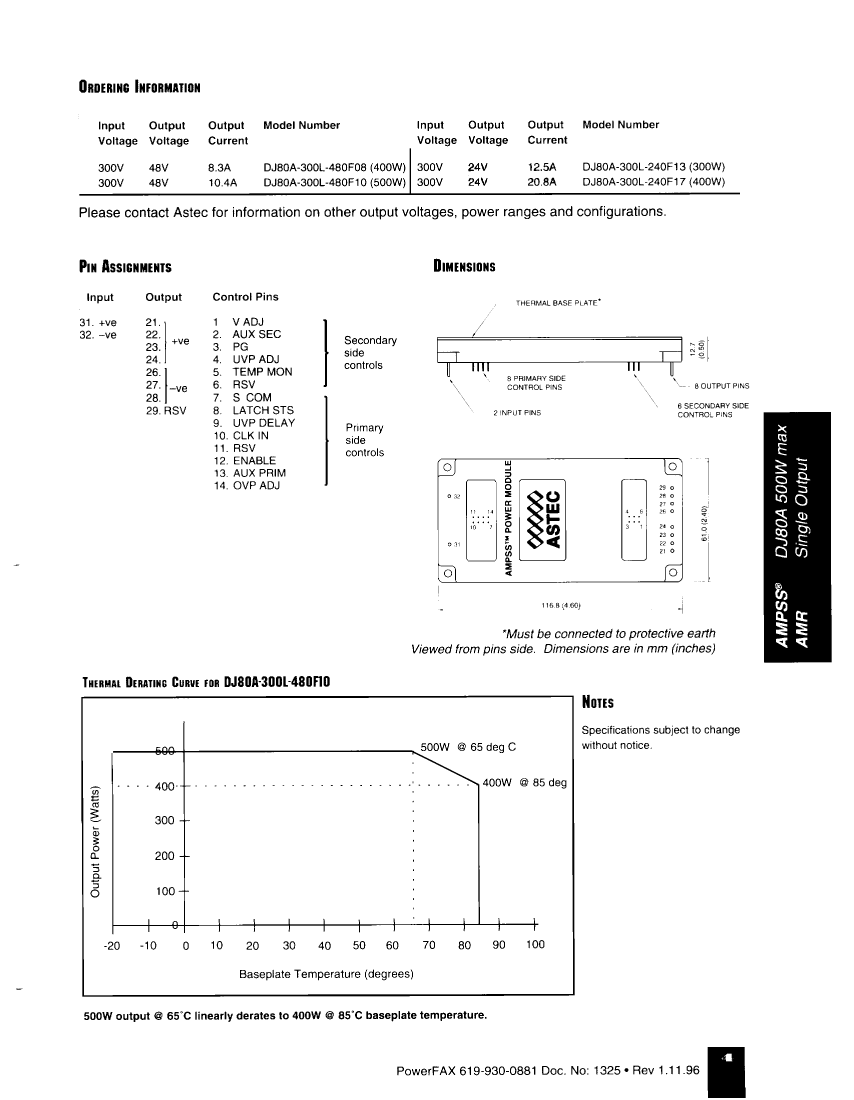

DJ80A-300L-240F17 Overview

1-OUTPUT 400W DC-DC REG PWR SUPPLY MODULE

Parameter Name	Attribute value
Maker	Emerson Embedded Power
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA; VDE; CE
Maximum input voltage	400 V
Minimum input voltage	240 V
Nominal input voltage	300 V
JESD-30 code	R-XXMA-X
Maximum grid adjustment rate	2%
Maximum load regulation	2.5%
Number of functions	1
Output times	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output voltage	26.4 V
Minimum output voltage	19.2 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	THERMAL; CURRENT; OUTPUT OVER VOLTAGE; INPUT LOW VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	400 W
Fine-tuning/adjustable output	YES

	DJ80A-300L-240F17	DJ80A-300L-240F13
Description	1-OUTPUT 400W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 300W DC-DC REG PWR SUPPLY MODULE
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA; VDE; CE	UL; CSA; VDE; CE
Maximum input voltage	400 V	400 V
Minimum input voltage	240 V	240 V
Nominal input voltage	300 V	300 V
JESD-30 code	R-XXMA-X	R-XXMA-X
Maximum grid adjustment rate	2%	2%
Maximum load regulation	2.5%	2.5%
Number of functions	1	1
Output times	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum output voltage	26.4 V	26.4 V
Minimum output voltage	19.2 V	19.2 V
Nominal output voltage	24 V	24 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	THERMAL; CURRENT; OUTPUT OVER VOLTAGE; INPUT LOW VOLTAGE	THERMAL; CURRENT; OUTPUT OVER VOLTAGE; INPUT LOW VOLTAGE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED
Maximum total power output	400 W	300 W
Fine-tuning/adjustable output	YES	YES
