KS74HCTLS163AJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> KS74HCTLS163AJ

KS74HCTLS163AJ: DescriptionBinary Counter, Synchronous, Up Direction, CMOS, CDIP16; Categorylogic logic; File Size451KB，9 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KS74HCTLS163AJ Overview

Binary Counter, Synchronous, Up Direction, CMOS, CDIP16

KS74HCTLS163AJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
Counting direction	UP
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.008 A
Operating mode	SYNCHRONOUS
Humidity sensitivity level	3
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40

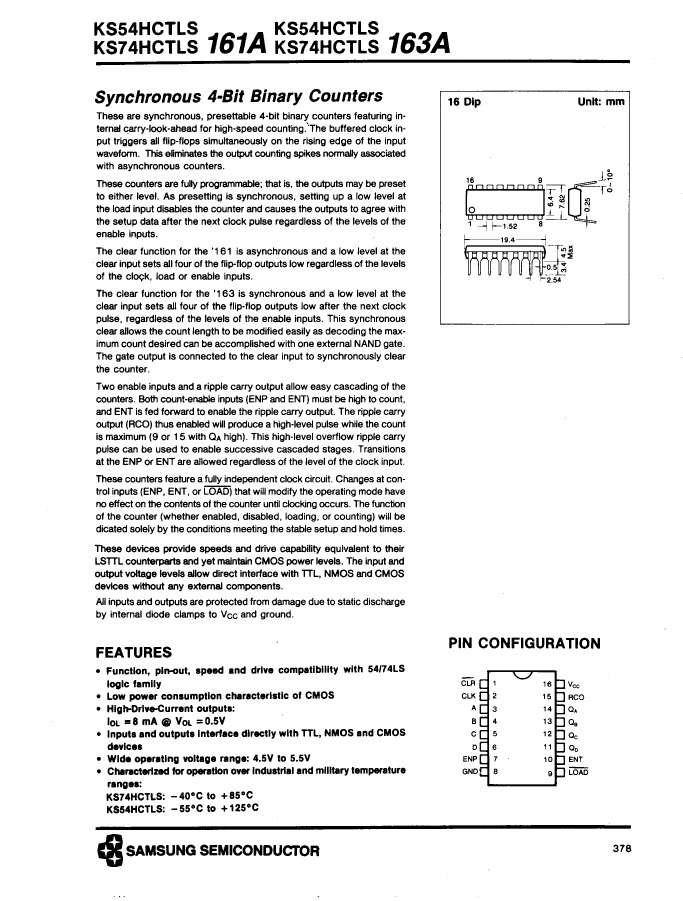

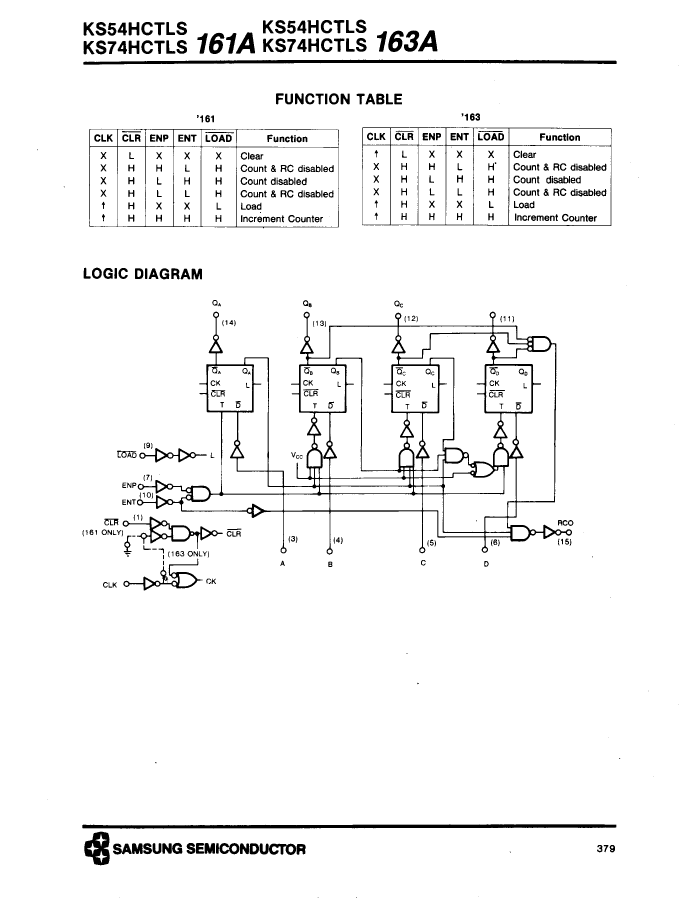

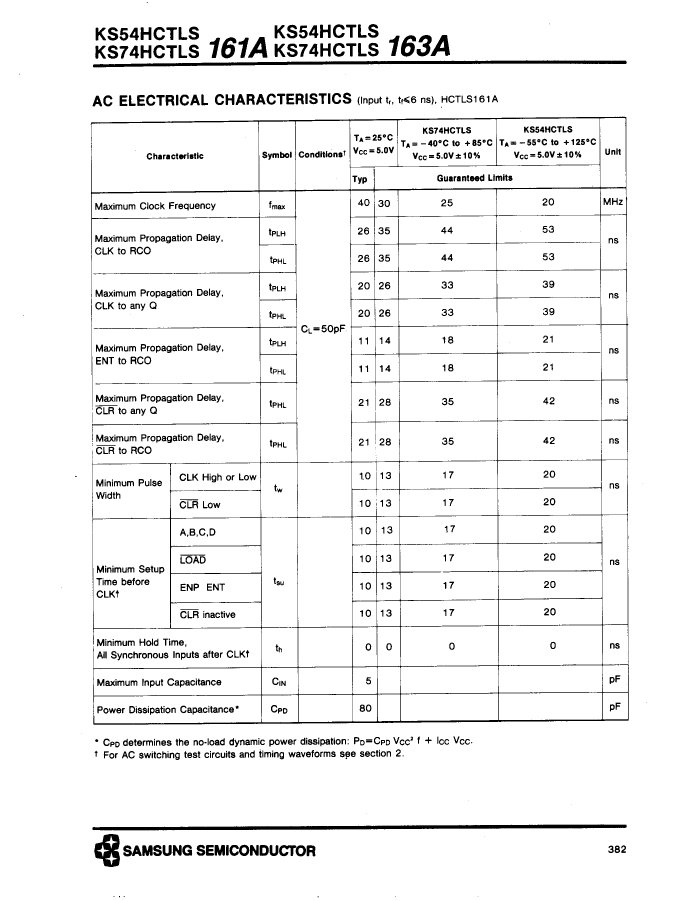

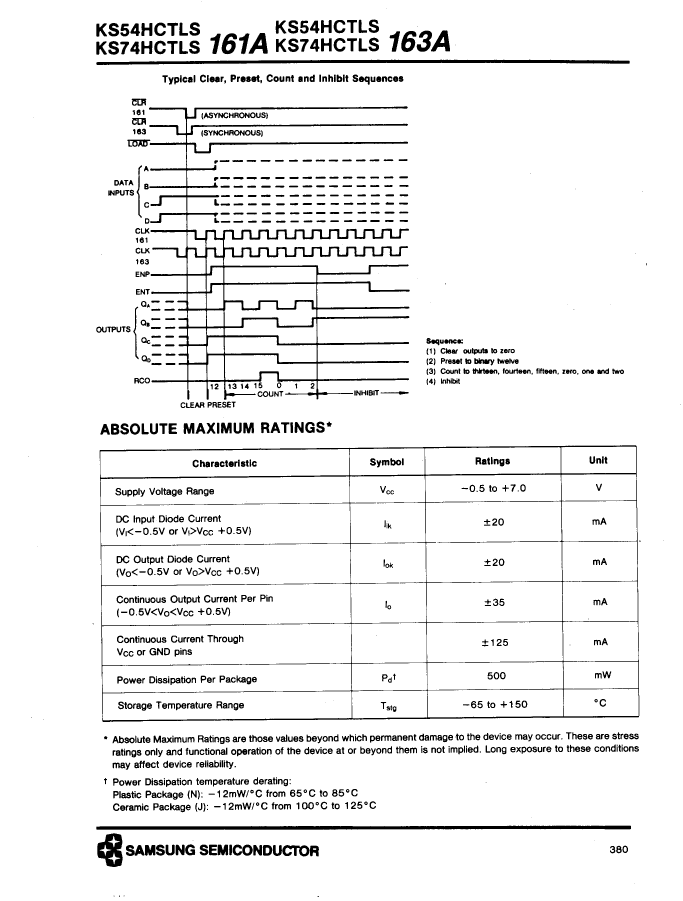

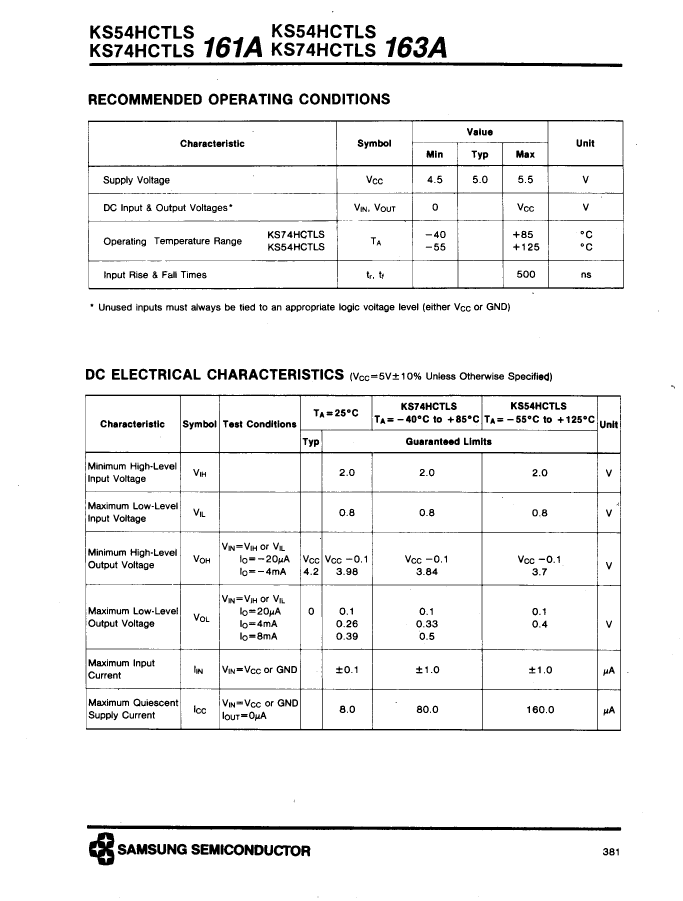

KS74HCTLS163AJ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KS74HCTLS163AJ Related Products

	KS74HCTLS163AJ	KS54HCTLS163AJ	KS74HCTLS163ADT	KS74HCTLS163AJ+	KS74HCTLS163AN	KS74HCTLS163AN+
Description	Binary Counter, Synchronous, Up Direction, CMOS, CDIP16	Binary Counter, Synchronous, Up Direction, CMOS, CDIP16	Binary Counter, Synchronous, Up Direction, CMOS, PDSO16	Binary Counter, Synchronous, Up Direction, CMOS, CDIP16	Binary Counter, Synchronous, Up Direction, CMOS, PDIP16	Binary Counter, Synchronous, Up Direction, CMOS, PDIP16
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant
Counting direction	UP	UP	UP	UP	UP	UP
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-PDSO-G16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz	20000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz
MaximumI(ol)	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Humidity sensitivity level	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
