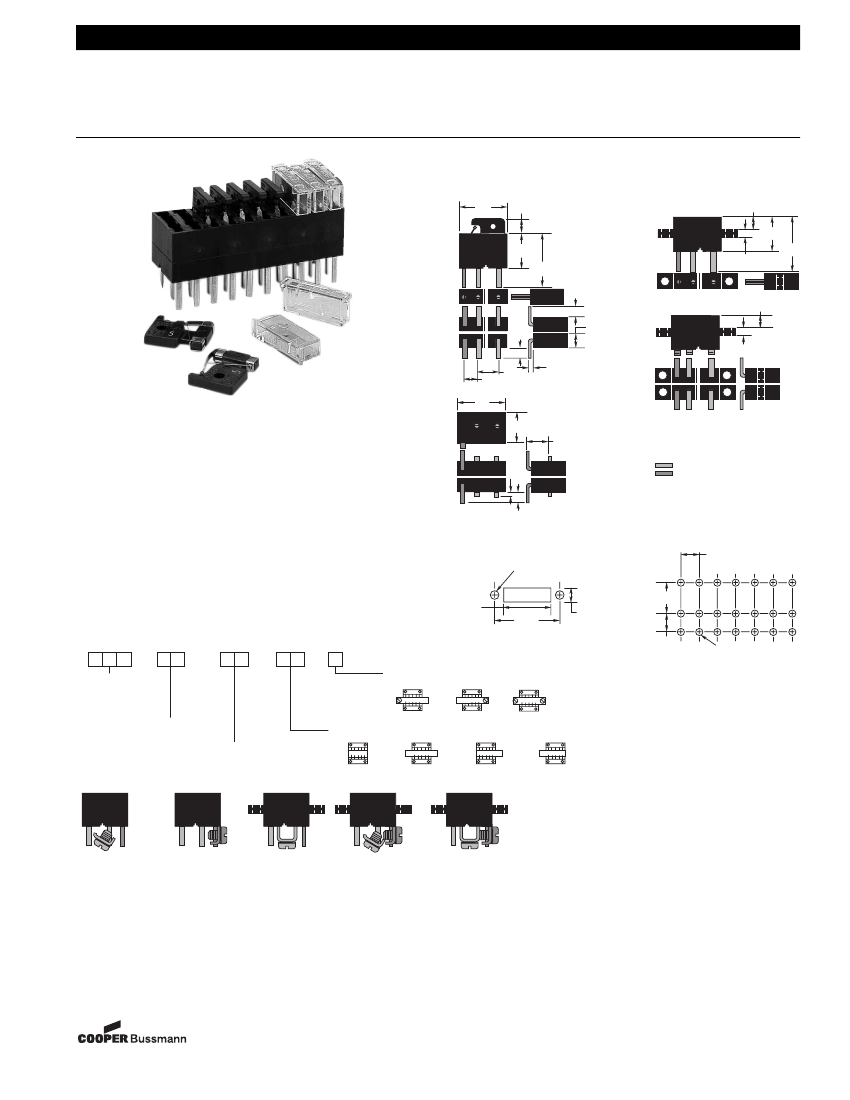

Bussmann

Fuseholders for GMT Type

Indicating Fuses

Dimensional Data

Printed Circuit Board Application

Shown With GMT Fuse Installed

.84"

(21.3mm)

HLS, HLT, PCT

Note: Similar Body Dimensions

of All Holders Are Identical.

.26"

(6.5mm)

.31" Approx.

(7.7mm)

.60"

(15.3mm)

.60"

(15.3mm)

.13"

.1"

(25.4mm)

HLT

.19"

(3.2mm)

HLS

(4.8mm)

.25"

(6.4mm)

.18"

(4.8mm)

HLS-F

HLS-C

.25"

(6.4mm)

.13"

(3.2mm)

.41"

.25"

(6.4mm)

(10.4mm)

.07"

(1.8mm)

HLT-F

.84"

(21.3mm)

HLT-D

.63"

(15.9mm)

CATALOG SYMBOL: HLS, HLT, PCT

FUSEHOLDERS FOR GMT TYPE INDICATING FUSES

ELECTRICAL RATING–60V DC, 125V AC

U.L. RECOGNIZED (GUIDE # IZLT2, FILE E14853)

15AMP (60V DC)

Materials:

Body:

Terminals:

Wire Wrap Terminals

.025"

.063"

(.64mm)

(1.6mm)

.45"

(11.4mm)

.11"

(2.8mm)

PCT-A

PCT

Fuse Terminal

Alarm Terminal

.19"

(4.8mm)

Thermosplastic, U.L. 94VO flammability rating

Tin-plated bifrucated copper

Panel Mounting Data

.15"

(3.8mm)

Dia.

.16"

(3.9mm)

Dia.

.41"

(10.4mm)

(6.4mm)

"A" Spaces

Tolerance to be non-accumulative

.25"

For use with

GMT

Type Indicating Fuses

Multiple Fuseholders with bus bars

Ordering Information–Catalog No.

.86"

(21.8mm)

1.21"

(30.8mm)

.27"

(6.7mm)

.25"

(6.4mm)

.08" Dia. Holes

(2.1mm) (3 Holes Per Poles of Fuseholder)

Termination Location

Body Style

HLT

HLS

(No flanges)

No. of Poles

thru

(Min. of 2 poles required for bus bars)

(Left only)

(Right only)

(Both ends)

Bus Bar Position

P1†

(Inside–

Both Sides)

Type of bus bars used

B1*, B2, B3,

B4, B5, SL**

(Short Leads .135")

ML**

(Medium Leads .250")

** Not available with bus bars

(Outside–

Both Sides)

(Outside–

Right Only)

(Outside–

Left Only)

(Angle Bar Only)*

("L" Bar Only)

("U" Bar Only)

(Angle & "L" Bars)

("L" &"U" Bars)

* Angle Bar

mounts on common or center terminals only.

†Minimum of 4 Poles Required.

**SL

Version is not available with bus bars.

The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled.This bulletin is intended to

clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any

products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-

ed, it should be tested by the user in all possible applications.

12-21-98

SB98107

Rev. A

Form No. HLS, HLT, PCT

Page 1 of 1

BIF Doc #5010
