M500360T1DKFREQ datasheet, PDF

M500360T1DKFREQ: DescriptionLVCMOS/TTL Output Clock Oscillator, 1MHz Min, 160MHz Max,; CategoryPassive components oscillator; File Size61KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M500360T1DKFREQ Overview

LVCMOS/TTL Output Clock Oscillator, 1MHz Min, 160MHz Max,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	25 ppm
frequency stability	10%
linearity	10%
Manufacturer's serial number	M5003
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVCMOS/TTL
Output load	2 TTL, 15 pF
physical size	16.71mm x 9.1mm x 7.5mm
longest rise time	10 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

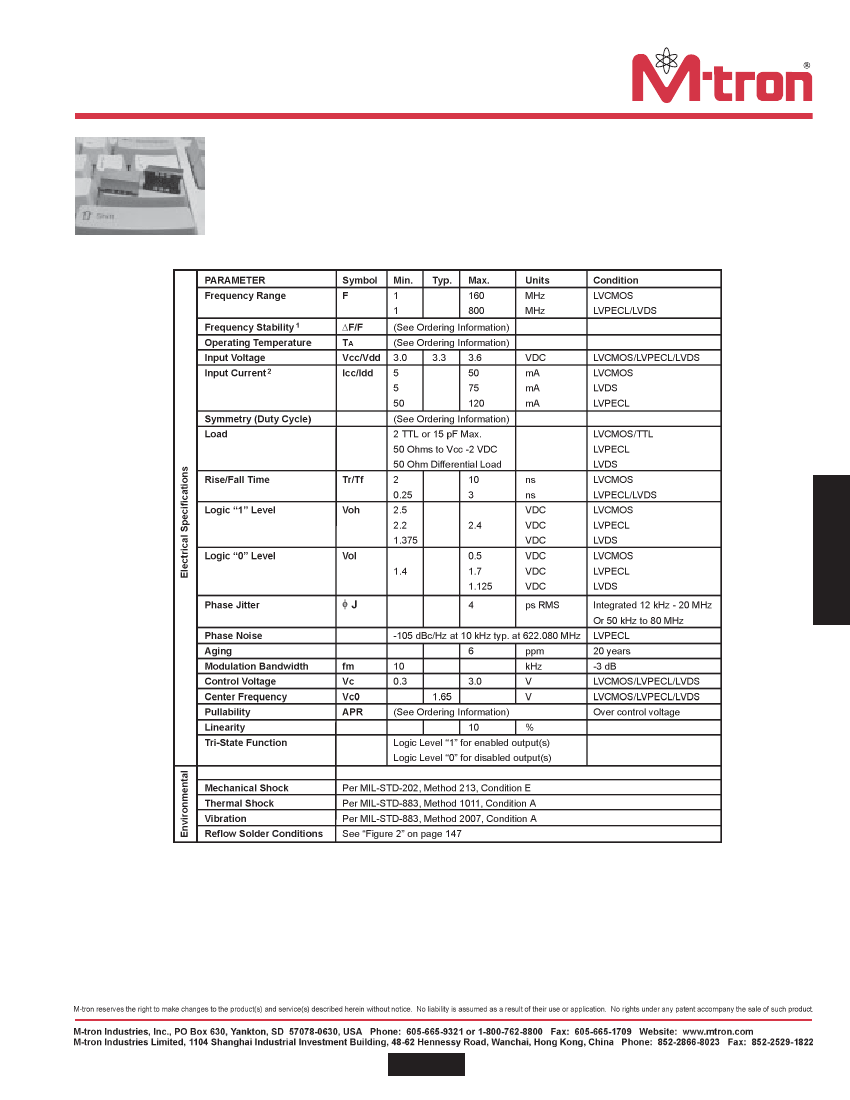

M5003 & M5004 Series

9x16 mm FR-4, 5.0 or 3.3 Volt, CMOS/TTL/PECL/LVDS, HPVCXO

•

Excellent stability inclusive of all

variations and 20 year life

•

Ideal for SONET, PCS base

stations and reference clock

applications

* APR includes stability over temperature, initial tolerance, and aging.

Contact the factory for 5.0 V availability.

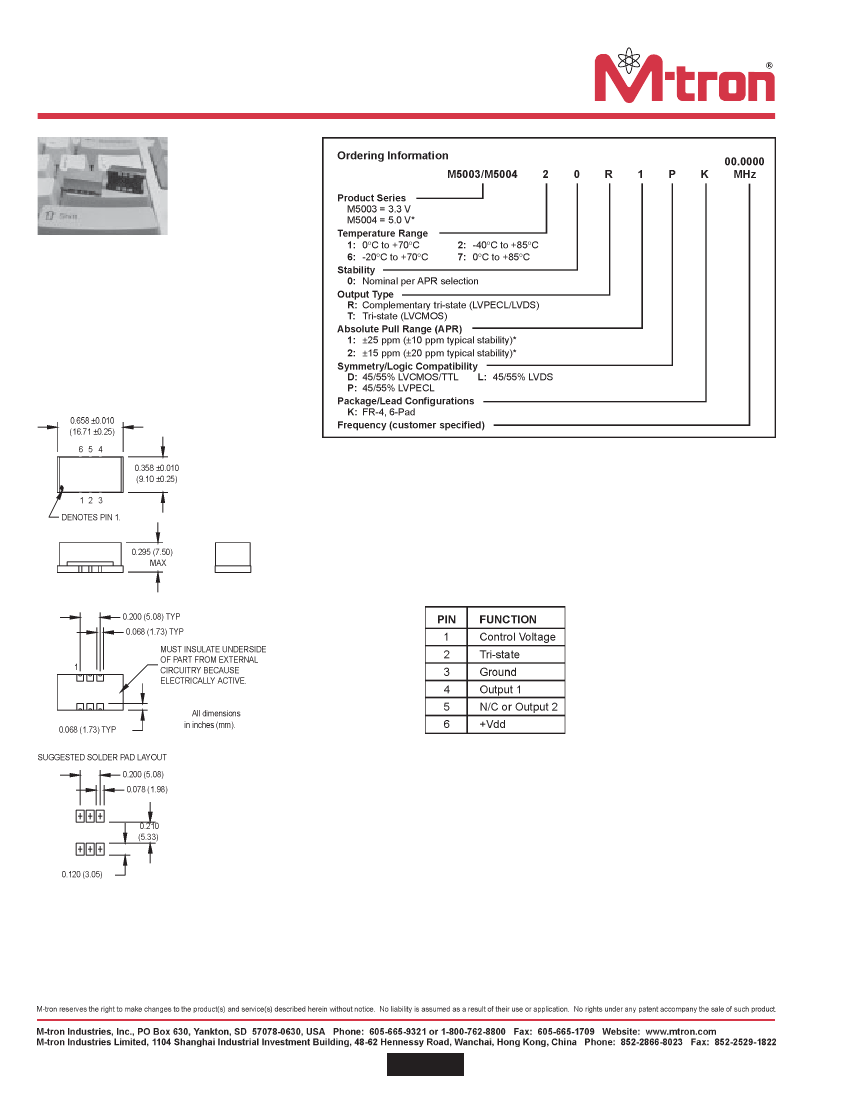

Pad Connections
