CT921CYF-560M: DescriptionGeneral Purpose Inductor, 56uH, 20%, 1 Element, SMD, 2524, CHIP; CategoryPassive components inductor; File Size157KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CT921CYF-560M Overview

General Purpose Inductor, 56uH, 20%, 1 Element, SMD, 2524, CHIP

CT921CYF-560M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	2524
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2524
structure	Shielded
DC Resistance	0.25 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	6.3 mm
Package form	SMT
Package width	6.2 mm
method of packing	TR
Maximum rated current	0.48 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DC RESISTANCE IS MEASURED AT 20% TOLERANCE
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

SMD Power Inductors

ctparts.com

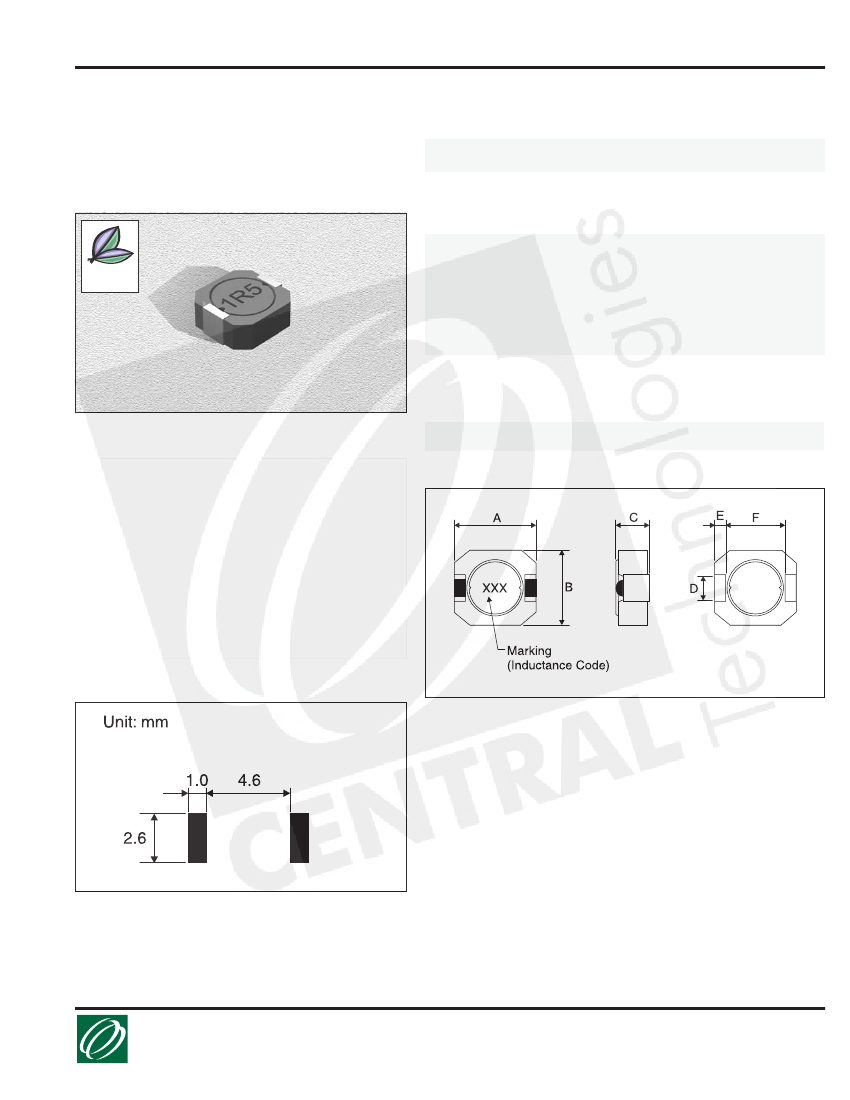

SPECIFICATIONS

CT921CYF Series

From 1.0 µH to 150 µH

Part

Number

CT921CYF-1R0M

CT921CYF-1R5M

CT921CYF-2R2M

CT921CYF-3R6M

CT921CYF-4R7M

CT921CYF-6R2M

CT921CYF-100M

CT921CYF-120M

CT921CYF-150M

CT921CYF-180M

CT921CYF-220M

CT921CYF-270M

CT921CYF-330M

CT921CYF-390M

CT921CYF-470M

CT921CYF-560M

CT921CYF-680M

CT921CYF-820M

CT921CYF-101M

CT921CYF-151M

Not shown at actual size.

Parts are available in ±20% tolerance only.

* Inductance drop = 30% typ. at IDC.

L Test

Freq.

(kHz)

100

*IDC

Max.

(A)

3.59

2.93

2.42

1.89

1.66

1.45

1.14

1.04

0.93

0.85

0.77

0.70

0.63

0.58

0.53

0.48

0.44

0.40

0.36

0.31

Inductance

(µH ±20%)

1.0

1.5

2.2

3.6

4.7

6.2

10

12

15

18

22

27

33

39

47

56

68

82

100

150

DCR

Ω

(Ω ±20%)

0.017

0.019

0.024

0.030

0.036

0.042

0.050

0.060

0.080

0.086

0.110

0.130

0.150

0.165

0.215

0.250

0.300

0.375

0.470

0.650

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

A

Max.

6.3

0.25

B

Max.

6.2

0.24

C

Max.

3.0

0.12

D

2.0±0.2

0.08±0.01

E

0.6±0.2

0.02±0.01

F

4.8±0.2

0.19±0.01

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±20%

Testing:

Tested on a HP4285A at 100 KHz , 0.1V

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

mm

inches

PAD LAYOUT

11.30.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
