TLP1039A
TOSHIBA Photointerrupter Infrared LED + Photo IC
TLP1039A
Domestic electrical appliances such as VTRs and
CD players
Office equipment such as photocopiers, printers
and fax machines
Vending machines, bank ATMs and automatic
ticket machines
Position detectors
The TLP1039A is a high-withstanding-voltage
photo-interrupter for digital output. The device combines a
high-optical-output GaAs infrared LED with a high-sensitivity,
high-gain Si photo-IC. The photo-IC, which supports a wide
range of systems (3.3 V to 12 V), enables the device to consume
less power than conventional devices. The device also features
a narrow slit width and high resolution.
The short lead package allows automatic mounting.
·
·
·
·
·
·
·
·
·
·
·
·
Low-back package: Package height 7.4 mm
Designed for direct mounting on printed circuit boards
(positioning pins included)
The short lead package allows automatic mounting
: Lead length 3.4 ± 0.3 mm
Permissible board thickness: 1.6 mm or less
Gap: 5 mm
Resolution: slit width 0.5 mm
Digital output (open-collector, high-level output when no light is present)
Direct connection to logic IC
Power supply voltage: V
CC
= 2.7 V~15 V
Switching time: t
pLH
= 15 µs (max)
Detector impermeable to visible light
Package material: Polybutylene-terephthalate (UL94V-0, black)
TOSHIBA
Weight: 0.5 g (typ.)
―
Maximum Ratings
(Ta
=
25°C)
Characteristics
Forward current
LED
Forward current derating
Reverse voltage
Detector
Supply voltage
Output voltage
Low-level output current (Ta
=
T
opr
)
(Ta
>
25°C)
(Ta
>
85°C)
Symbol
I
F
DI
F
/°C
V
R
V
CC
V
O
I
OL
T
opr
T
stg
(Note 1)
T
sol
Rating
50
-0.33
-2
5
15
15
16
-30~95
-40~100
260
Unit
mA
mA/°C
V
V
V
mA
°C
°C
°C
Operating temperature
Storage temperature
Soldering temperature (5 s)
Note 1: Soldering is performed 1.5 mm from the bottom of the package.
1
2002-09-20
TLP1039A
Recommended Operating Conditions
Characteristics
LED forward current
Supply voltage
Output voltage
Low-level output current
Operating temperature
Symbol
I
F
V
CC
V
O
I
OL
T
opr
Min
8
(Note 2)
2.7
¾
¾
-25
Typ.
¾
3.3
¾
¾
¾
Max
20
13.2
13.2
16
95
Unit
mA
V
V
mA
°C
Note 2: The value 8 mA takes account of 50% LED optical fluctuation. The initial value of the threshold input current
is 4 mA or less.
(unless otherwise specified: Ta
= -
30~95°C, V
CC
=
2.7~15 V)
Characteristics
Forward voltage
LED
Reverse current
Peak emission wavelength
operating supply voltage
Low-level supply current
Detector
High-level supply current
Low-level output voltage
High-level output current
Peak sensitivity wavelength
Propagation characteristics
H
®
L threshold input current
Hysteresis
Propagation delay time (L
®
H)
Propagation delay time (H
®
L)
Rise time
Fall time
Symbol
V
F
I
R
l
P
V
CC
I
CCL
I
CCH
V
OL
I
OH
l
P
I
FHL
I
FHL
/I
FLH
t
pLH
t
pHL
t
r
t
f
V
CC
=
3.3 V, I
F
=
15 mA,
R
L
=
10 kW, Ta
=
25°C
(Note 3)
Test Conditions
I
F
=
10 mA, Ta
=
25°C
V
R
=
5 V, Ta
=
25°C
I
F
=
15 mA, Ta
=
25°C
¾
I
F
=
15 mA, Ta
=
25°C
I
F
=
15 mA
I
F
=
0
I
OL
=
16 mA, I
F
=
15 mA,
Ta
=
25°C
I
OL
=
16 mA, I
F
=
15 mA
I
F
=
0, V
O
=
15 V
Ta
=
25°C
Ta
=
25°C
Min
1.00
¾
¾
2.7
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
Typ.
1.15
¾
940
¾
¾
¾
¾
0.05
¾
¾
900
¾
¾
1.5
¾
¾
0.8
0.02
Max
1.30
10
¾
15
1.6
2.0
1.2
0.3
0.4
6.3
¾
3
4
¾
15
9
¾
¾
ms
mA
nm
mA
¾
Unit
V
mA
nm
V
mA
mA
V
Electrical and Optical Characteristics
Note 3: The switching time measurement circuit and waveform are as follows:
10 k9
Constant-voltage
circuit
I
F
Amp
V
CC
=
3.3 V
R
L
V
OUT
I
F
t
pHL
V
OUT
t
f
50%
t
pLH
90%
10%
t
r
V
OH
1.5 V
V
OL
2
2002-09-20
TLP1039A
Markings
Monthly lot number
Month of manufacture (January to December denoted by letters A to L respectively)
Year of manufacture (Last digit of year of manufacture)
Precautions
·
When removing flux with chemicals after soldering, clean only the soldered part of the leads. Do not immerse
the entire package in the cleaning solvent. Chemical residue on the LED emitter or the photodetector inside the
photo-IC case may adversely affect the optical characteristics of the device and may drastically reduce the
threshold input current.
The case is made of polybutylene-terephthalate. Oil or chemicals may cause the package to melt or crack. Care
must be taken in relation to the environment in which the device is to be installed.
Mount the device on a level surface.
Output fluctuates for 100
ms
after power-on while the internal circuit stabilizes.
To stabilize the power line, insert a bypass capacitor of up to 0.01
mF
between V
CC
and GND, close to the device.
The threshold input current increases over time due to current flowing in the infrared LED. The design of
circuits which incorporate the device must take into account the change in threshold input current over time.
The change in threshold input current is equal to the reciprocal of the change in LED infrared optical output.
·
·
·
·
·
I FHL ( t )
æ
PO ( t )
ö
÷
=ç
I FHL (0)
ç
PO (0)
÷
ø
è
·
-
1
Choose a high-quality shutter material which is impermeable to light. If the material is of inferior quality, light
from the LED may pass through the shutter, causing the device to malfunction.
3
2002-09-20
TLP1039A

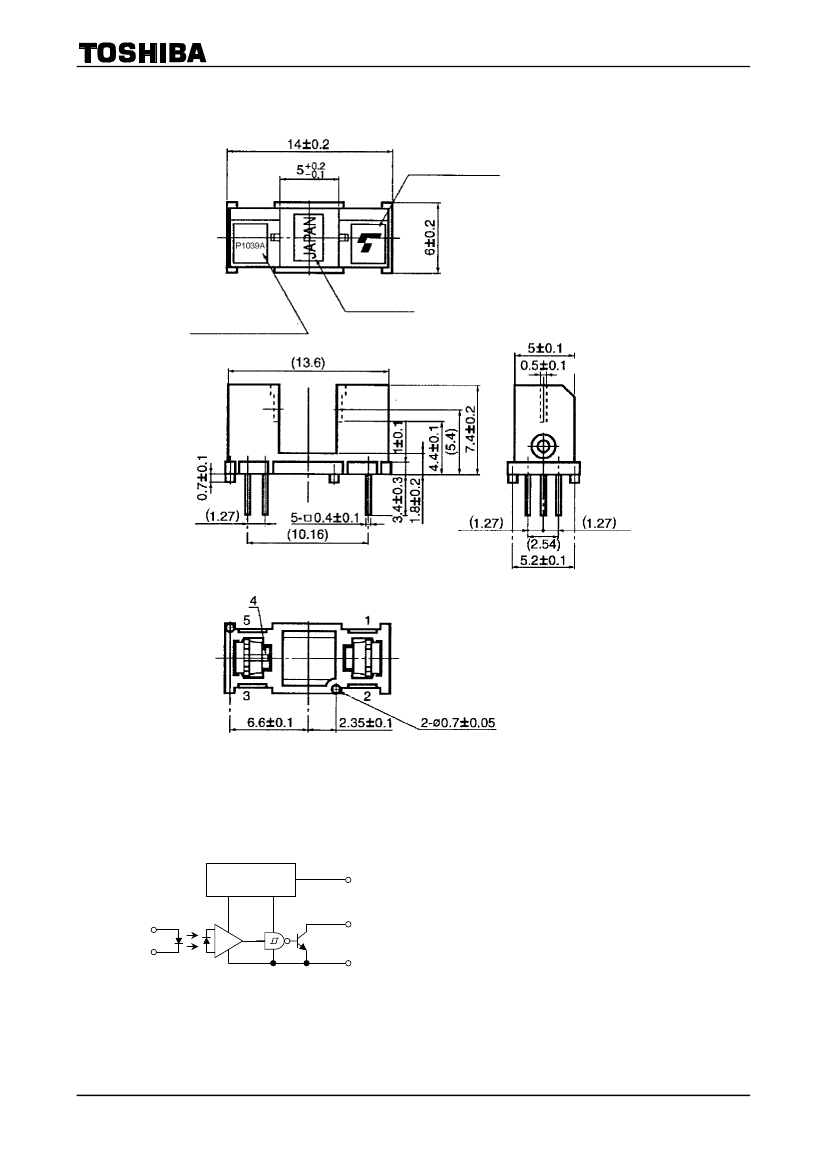

Package Dimensions
Unit: mm
Toshiba marking
Country of origin
Product number (TL omitted)
(Slit width)
Center of sensor
( ): reference value
Weight: 0.5 g (typ.)
Pin Connection
Constant-voltage
circuit
3
1
Amp
4
5
1: Anode
2: Cathode
3: V
CC
4: OUT
5: GND
2
4
2002-09-20
TLP1039A
I
F
– Ta
60
100
50
I
F
– V
F
(typ.)
(mA)
50
(mA)
Forward current I
F
Permissible forward current I
F
30
40
30
10
5
3
Ta
=
75°C
50 25
0
-25
20
10
0
-20
0
20
40
60
80
100
1
0.8
0.9
1.0
1.1
1.2
1.3
1.4
Ambient temperature Ta (°C)
Forward voltage
V
F
(V)
V
OL
– I
OL
0.1
(typ.)
10
t
pLH
, t
pHL
– I
F
(ms)
Ta
=
25°C
8
VCC
=
3.3 V
RL
=
10 kW
(typ.)
V
OL
(V)
Ta
=
25°C
0.05
0.03
VCC
=
3.3 V
IF
=
15 mA
Propagation delay time t
pLH
, t
pHL
Low-level output voltage
6
tpLH
0.01
4
0.005
0.003
0.002
0.3
0.5
1
3
5
10
30
2
tpHL
0
0
10
20
30
40
50
60
Low-level output current
I
OL
(mA)
Forward current
I
F
(mA)
t
r
, t
f
– R
L
20
10
Ta
=
25°C
VCC
=
3.3 V
5 I
=
15 mA
F
3
tr
1
0.5
0.3
0.1
0.05
0.03
0.01
0.1
tf
(typ.)
9
t
pLH
, t
pHL
– R
L
(ms)
8
7
6
5
4
3
2
1
0
0.1
tpHL
tpLH
Ta
=
25°C
VCC
=
3.3 V
IF
=
15 mA
(typ.)
0.3 0.5
1
3
5
10
30 50 100
300 500
Propagation delay time t
pLH
, t
pHL
Rise/Fall time
t
r
, t
f
(ms)
0.3 0.5
1
3
5
10
30 50
100
Load resistance R
L
(k9)
Load resistance R
L
(k9)
5
2002-09-20
