BL-C34/2G-41E: DescriptionSingle Color LED, Green, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size123KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BL-C34/2G-41E Overview

Single Color LED, Green, Diffused, T-1, 3mm, ROHS COMPLIANT PACKAGE-4

BL-C34/2G-41E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown
color	GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	30.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	9.6 mm
method of packing	BULK
peak wavelength	568 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	45 deg

BL-C34/2G-41E Preview

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-C34/2G-41E

●

Features:

1. Chip material: GaP/GaP

2. Emitted color : Green

3. Lens Appearance : Green Diffused

4. Designed for ease in circuit board assembly.

5. Black case enhance contrast ratio.

6. Solid state light source.

●

Package dimensions

4.3(.169)

2.3(.091)

TYP.

9.0(.354)

3.0(.118)

5.0(.197)

9.6(.378)

Cathode

7. Reliable and rugged.

8. This product don’t contained restriction

substance, compliance ROHS standard.

0.5(.020)

SQ. TYP.

3.4(.134) MIN.

90

5

2.54(.100)

5.0(.197) 2.5(.098)

Notes:

●

Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

●

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Forward Current

Peak Forward Current*

1

Reverse

Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Pd

I

F

I

FP

V

R

Topr

Tstg

Tsol

Rating

80

30

150

5

-40

℃

~80

℃

-40

℃

~85

℃

260

℃

(for 5 seconds)

Unit

mW

mA

V

*

1

Condition for I

FP

is pulse of 1/10 duty and 0.1msec width.

Ver.2.0 Page: 1 of 2

2.1

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-C34/2G-41E

●

Electrical and optical characteristics(Ta=25℃)

Parameter

Forward Voltage

Luminous Intensity

Symbol

V

F

Iv

I

R

λp

λd

∆λ

2θ

1/2

Condition

I

F

=20mA

I

F

=20mA

V

R

=5V

I

F

=20mA

I

F

=20mA

I

F

=20mA

I

F

=20mA

Min.

-

560

-

Typ.

2.2

30

-

568

-

30

45

Max.

2.6

-

100

-

576

-

Unit

V

mcd

Reverse Current

Peak Wave Length

Dominant Wave Length

Spectral Line Half-width

Viewing Angle

µA

nm

deg

●

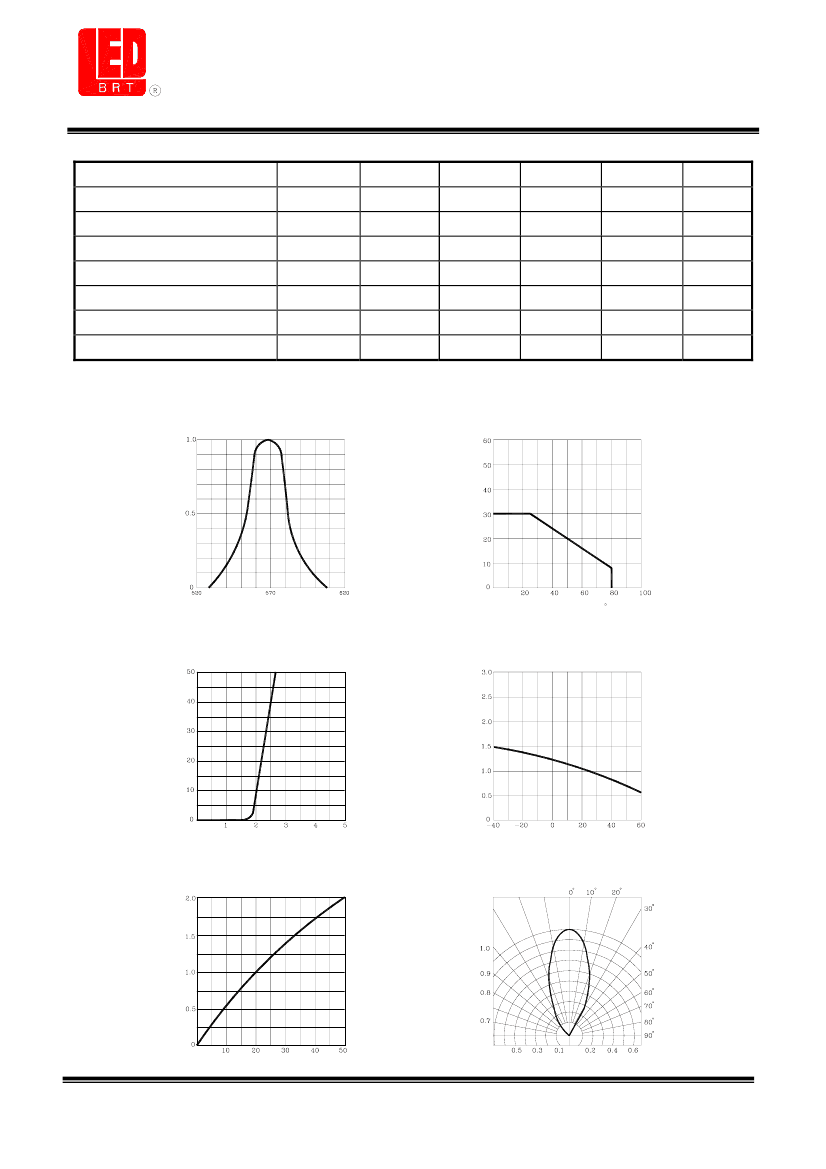

Typical electro-optical characteristics curves

Fig.1 Relative intensity vs. Wavelength

Fig.2 Forward current derating curver

vs. Ambient temperature

Relative radiant intensity

wavelength

λ

(nm)

Forward current (mA)

Ambient temperature ta(

℃

)

Fig.3 Forward current

vs. Forward voltage

Relative luminous intensity

Fig.4 Relative luminous intensity

vs. Ambient tenperatur

Forward current (mA)

Forward voltage (V)

Fig.5 Relative luminous intensity

vs. Forward current

Relative Radiant Intensity

Ambient temperature Ta(

℃

)

Fig.6 Radiation diagram

Relative luminous intensity(@20mA)

Forward current (mA)

Ver.2.0 Page: 2 of 2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
