DG202BK-4 datasheet, PDF - EEWORLD Datasheet

DG202BK-4: DescriptionSPST, 4 Func, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size410KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

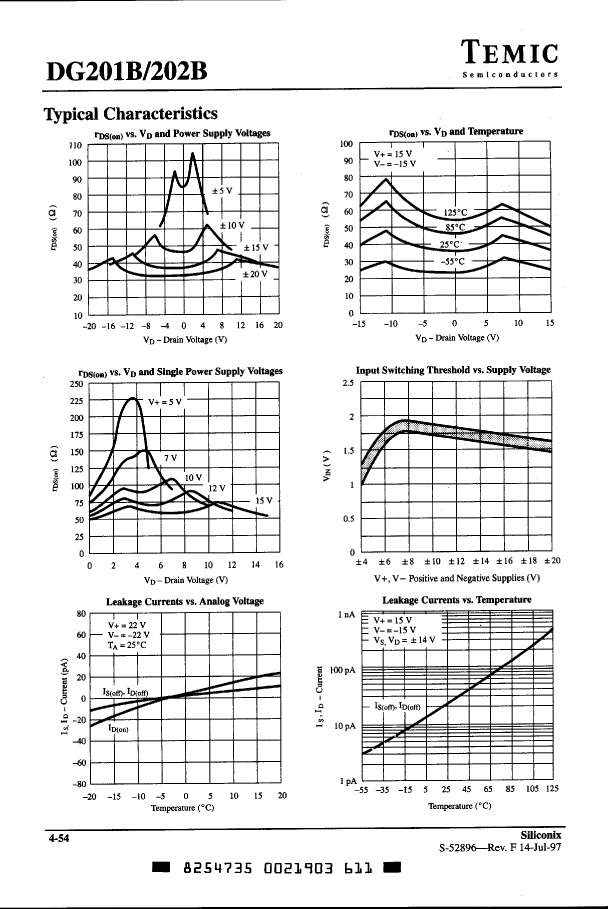

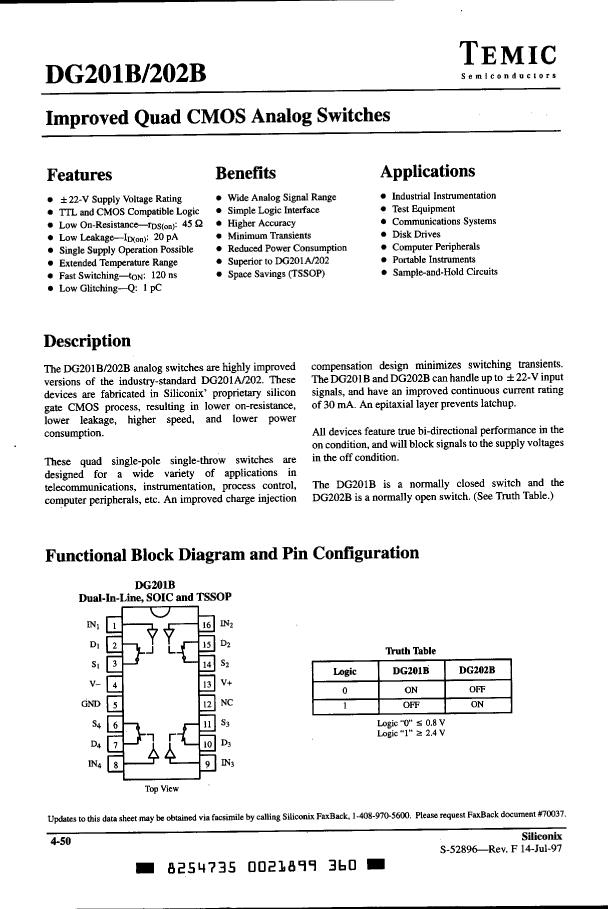

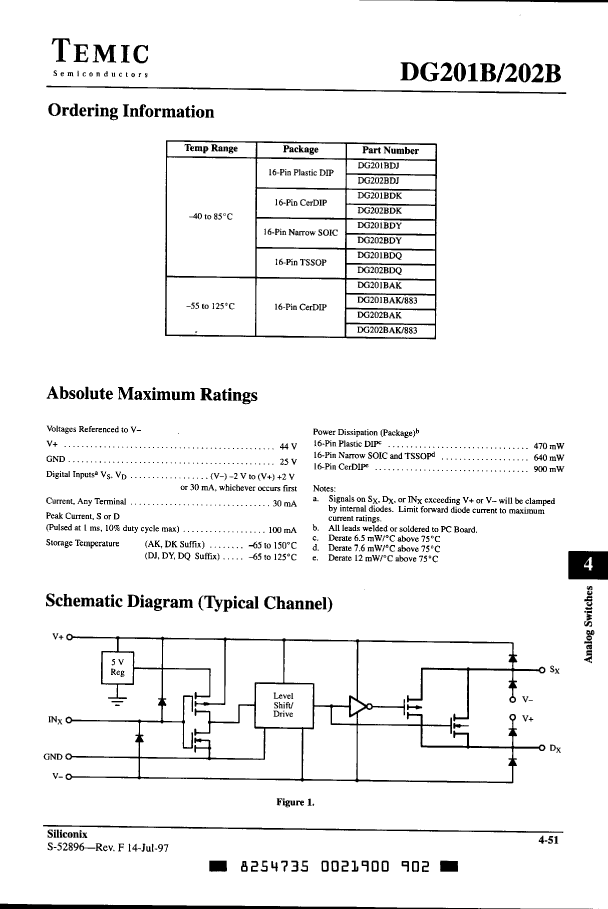

DG202BK-4 Overview

SPST, 4 Func, CMOS, CDIP16

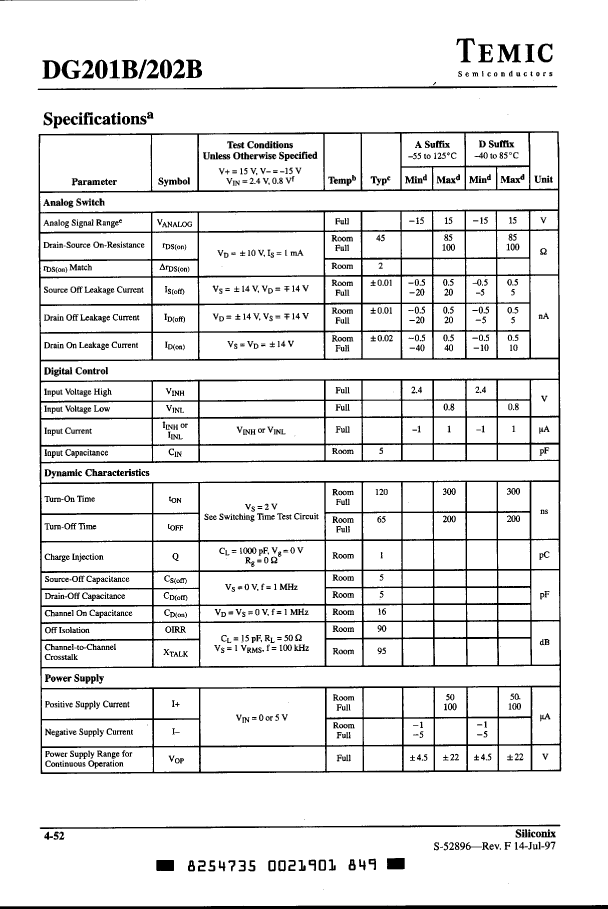

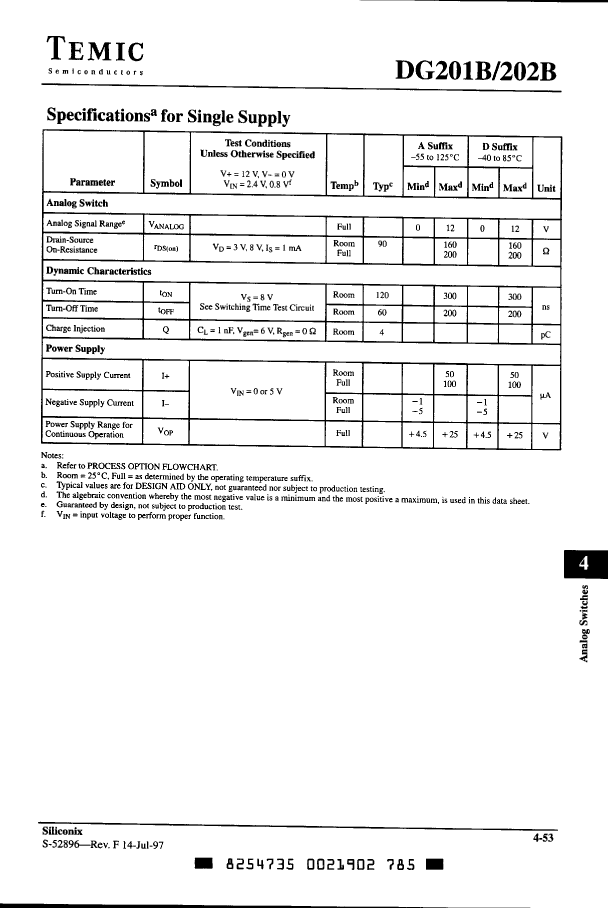

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of functions	4
Number of terminals	16
Maximum on-state resistance (Ron)	250 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	DG202BK-4	DG202CJ-4
Description	SPST, 4 Func, CMOS, CDIP16	SPST, 4 Func, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible
Maker	Vishay	Vishay
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
normal position	NO	NO
Number of functions	4	4
Number of terminals	16	16
Maximum on-state resistance (Ron)	250 Ω	250 Ω
Maximum operating temperature	85 °C	70 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS
Temperature level	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
