General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, HALOGEN FREE AND ROHS COMPLIANT
UP2UC-331-R Parametric
Parameter Name
Attribute value
Is it lead-free?
Lead free
Is it Rohs certified?
conform to
Maker
Cooper Industries
Reach Compliance Code
unknown
ECCN code
EAR99
core material
FERRITE
DC Resistance
1.02 Ω
Nominal inductance(L)
330 µH
Inductor Applications
POWER INDUCTOR
Inductor type
GENERAL PURPOSE INDUCTOR
Manufacturer's serial number
UP2UC
Number of functions
1
Number of terminals
2
Maximum operating temperature
125 °C
Minimum operating temperature
-40 °C
self resonant frequency
4.5 MHz
Shape/Size Description
RECTANGULAR PACKAGE
shield
NO
surface mount
YES
Terminal location
DUAL ENDED
Terminal shape
WRAPAROUND
Test frequency
0.1 MHz
Tolerance
20%

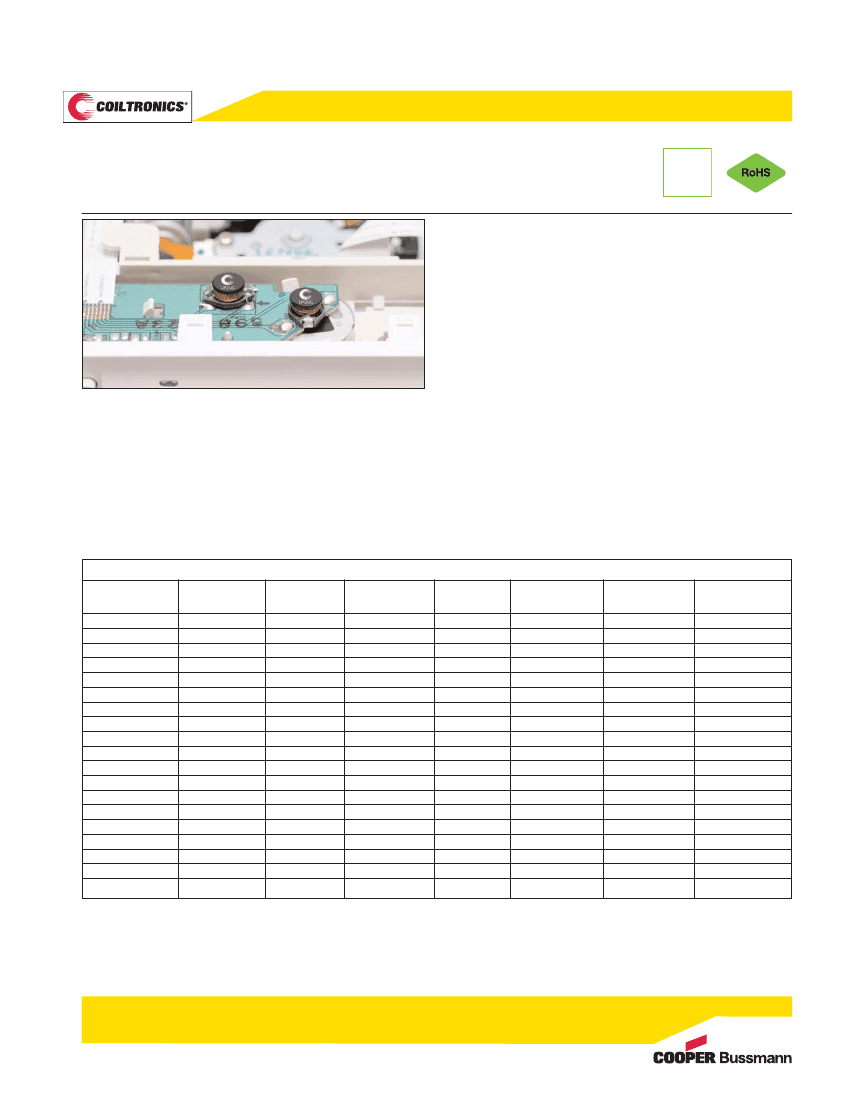

UP2UC-331-R Preview
High Power, Drum Inductors
UNI-PAC™ UP2UC Series
Applications
•
•
•
•
•
•
•
Buck or boost inductor
PDAs
Desktop computer
DVD Players
Portable power devices
Output filter chokes
Test equipment instrumentation
HF
FREE
HALOGEN
SMD Device
Description
•
•
•
•
•
•
Halogen Free, RoHS compliant
125°C maximum total temperature operation
9.5 x 12.7 x 5.21mm drum core
Ferrite core material
Inductance range from 1.0μH to 1000μH
Current range from 0.30 to 9.0 amps
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating temperature range: -40°C to +125°C
(ambient plus self-temperature rise)
• Solder reflow temperature: J-STD-020D compliant
Packaging
• Supplied in tape and reel packaging, 600 parts per reel,
13” diameter reel
Product Specifications
OCL
Part Number
UP2UC-1R0-R
UP2UC-1R5-R
UP2UC-2R2-R
UP2UC-3R3-R
UP2UC-4R7-R
UP2UC-6R8-R
UP2UC-100-R
UP2UC-150-R
UP2UC-220-R
UP2UC-330-R
UP2UC-470-R
UP2UC-680-R
UP2UC-101-R
UP2UC-151-R
UP2UC-221-R
UP2UC-331-R
UP2UC-471-R
UP2UC-681-R
UP2UC-102-R
5
1
µH ± 20%
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100
150
220
330
470
680
1000
Irms
Amps
6.8
6.4
6.1
5.4
4.8
4.4
3.9
3.1
2.7
2.1
1.8
1.5
1.3
1.0
0.80
0.60
0.50
0.40
0.30
2
Isat
3
Amps@25°C
9.0
8.0
7.0
6.4
5.4
4.6
3.8
3.0
2.6
2.0
1.6
1.4
1.2
1.0
0.80
0.60
0.50
0.40
0.30
SRF MHz
Typical
100
90.0
80.0
65.0
45.0
38.0
30.0
27.0
19.0
15.0
12.0
10.0
9.0
6.0
5.0
4.5
3.5
2.5
2.0
DCR mΩ@20°C
Typical
4.0
4.4
5.8
9.9
12.0
25.8
25.9
35.4
55.9
81.6
120
145
211
347
491
750
1188
1811
2757
DCR mΩ@20°C
Maximum
9.0
10.0
12.0
15.0
18.0
27.0
38.0
46.0
85.0
100
140
200
280
400
610
1020
1270
2020
3000
K-factor
4
216
177
130
114
92.52
77.72
62.68
49.82
41.34
34.09
29.00
24.59
20.89
15.80
13.04
10.85
9.39
7.56
6.13
1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.25Vrms, 0.0Adc
2 Irms: DC current for an approximate
ΔT
rise of 40°C without core loss. Derating is necessary for
AC currents. PCB layout, trace thickness and width, air-flow and proximity of other heat generat-
ing components will affect the temperature rise. It is recommended the part temperature not
exceed 125°C under worst case operating conditions verified in the end application.
3 Isat: Peak current for approximately 7.5% rolloff at 25°C.
4 K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L *
ΔI
, Bp-p: (Gauss),
K: (K-factor from table), L: (inductance in
μH), ΔI
(peak-to-peak ripple current in amps).
6 Part Number Definition: UP2CU-xxx-R
• UP2CU = Product code and size
• xxx= Inductance value in
μH,
R = decimal point. If no R is present, then third digit
equals the number of zeros.
• “-R” suffix = RoHS compliant
0609
BU09493
Page 1 of 4
Data Sheet: 4369
Dimensions - mm
Tolerances are ±0.254mm unless otherwise specified.
Top V iew
9.3
±0.2
S ide V iew
5.21
m ax
2.54
±0.2
B ottom V iew
R ecom m ended P ad Layout
2.79
ref
S chem atic
12.7
±0.25
U P 2U C -
xxx
w w llyy R
1
2
Part Marking: UP2UC
1
8.4
±0.15
2.54
±0.2
7.62 typ
7.62
ref
2
2.92
ref
xxx = Inductance value in
μH
(R = Decimal point). If no “R” is present, then the third digit equals the number of zeros.
wwllyy = Date code
R = Revision level
Packaging Information - mm
4.0
2.0
16
1.5 dia.
1.75
11.5
24 ±0.30
13.4
UP2UC-
xxx
wwllyy R
UP2UC-
xxx
wwllyy R
UP2UC-
xxx
wwllyy R
5.5
Section A-A
4.40
9.70
User direction of feed
Supplied in tape-and-reel packaging, 600 parts per reel, 13” diameter reel.
Temperature Rise vs. Total Loss
60
T e m p e ra tu re R is e (°C )
50
40
30
20
10
0
0
0.1
0.2
0.3
0.4
0.5
0.6
To ta l L o s s (W )
0609
BU09493
Page 2 of 4
Data Sheet: 4369
Core Loss
C o r e Lo s s v s . Bp -p
10
5 0 0 kHz
4 0 0 kHz
1
3 0 0 kHz
2 0 0 kHz
1 0 0 kHz
C o re L o ss (W )
0 .1
0 .0 1
0 .0 0 1
0 .0 0 0 1
0 .0 0 0 0 1
100
1000
10000
Bp -p (G a u s s )
inductance Characteristics
% of O C L v s I
s a t
110%
100%
90%
80%
-4 0 °C
% of OC L
70%
+2 5 °C
60%
+8 5 °C
50%
40%
30%
20%
10%
100%
120%
140%
160%
180%
20%
40%
60%
80%
0%
0%
% o f I
s at
0609
BU09493
Page 3 of 4
Data Sheet: 4369
Solder Reflow Profile
T
P
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
T
L
Preheat
A
t
t
P
T
C
-5°C
T
ab
l
e
1 -
S
t
a
n
da
r
d S
nP
b S
ol
de
r (T c)
Package
Thickness
<2.5mm
_
>2.5mm
Volume
mm
3
<350
235°C
220°C
Volume
mm
3
_
>350
220°C
220°C
Temperature
T
smax
T
ab
l
e
2 - L
ead
(P
b
) Fr
ee S
ol
de
r (T c)
T
smin
t
s
Volume
Package
mm
3
Thickness
<350
<1.6mm
260°C
1.6 – 2.5mm 260°C
>2.5mm
250°C
Time
Volume
mm
3
350 - 2000
260°C
250°C
245°C
Volume
mm
3
>2000
260°C
245°C
245°C
25°C
Time 25°C to Peak
Reference JDEC J-STD-020D
Profile Feature
Preheat
and Soak
• Temperature min. (Tsmin)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
Average ramp up rate Tsmax to Tp
Liquidous temperature (T
L
)
Time
at
liquidous (tL)
Peak package
body
temperature (TP)*
Time (tp)** within 5 °C of the specified classification temperature (Tc)
Average ramp-down rate (Tp to Tsmax)
Time 25°C to Peak Temperature
Standard SnPb Solder
100°C
150°C
60-120 Seconds
3°C/
Second
Max.
183°C
60-150 Seconds
Table 1
20
Seconds**
6°C/ Second
Max.
6
Minutes Max.
Lead (Pb) Free
Solder
150°C
200°C
60-120 Seconds
3°C/
Second
Max.
217°C
60-150 Seconds
Table 2
30
Seconds**
6°C/ Second
Max.
8 Minutes Max.
*
Tolerance for peak profile temperature (Tp) is
defined as a
supplier minimum
and a
user maximum.
**
Tolerance for time
at
peak profile temperature (tp) is
defined as a
supplier minimum
and a
user maximum.
