PEAK HOLD DETECTOR
PH300
STATE-OF-THE-ART
PERFORMANCE
• High Speed (250 ns rise time)
• Extremely Low Droop Rate (10 nV/ms)
• Low Power (<36 mW)
• Ramp & Dump Hold Discharge

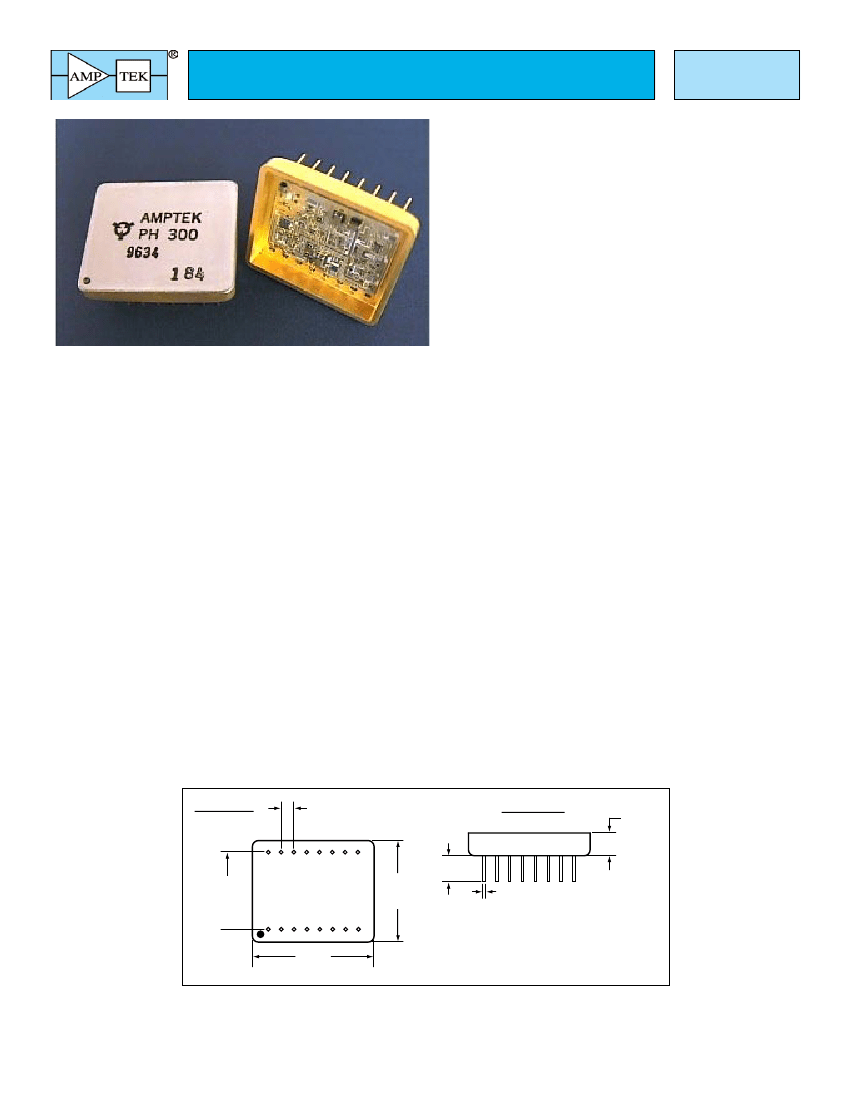

Model PH300 is a high performance, thin film hybrid, peak-hold unit, designed to track and hold the peak
of analog input signals with rise times (10% to 90% of V
max
) as short as 250 ns. The unit also has the lowest
Droop Rate of the held voltage available and consumes less than 36 mW of power in quiescent mode.
While this unit was designed for use in satellite instrumentation, the following unique characteristics make
it equally useful in a broad range of space, laboratory and commercial applications.
FEATURES
• Operates from -55 °C to +125 °C
• Small size (16 pin hybrid DIP)
• Very low power (36 mW quiescent)
• High speed
• Low droop rate
• Ramp discharge
• Fast reset
• Build-in linear gate
• Internal hold capacitor
• High reliability screening
• One year warranty
APPLICATIONS
• Aerospace
• Portable instrumentation
• Nuclear monitoring
• Particle, x-ray and gamma ray detection
• Imaging
• Research experiments
• Medical and nuclear electronics
• Electro-optical systems
PH300 Mechanical Diagram
TOP VIEW
0.100 TYP.
(2.540)
16
0.600
(15.240)
1
0.95
(24.13)
8
9
0.80
(20.32)
0.25
(6.350)
0.018 TYP.
(0.457)
inches
(mm)
SIDE VIEW
0.24
(6.096)
DIMENSIONS:
Tel:
+1 (781) 275-2242
Fax:
+1 (781) 275-3470
email:
sales@amptek.com
www.amptek.com
AMPTEK
INC.
14 DeAngelo Drive, Bedford, MA 01730-2204 U.S.A.
SPECIFICATIONS
INPUT CHARACTERISTICS
Signal -
Analog
Linear Gate
Control -
Digital
Reset
Control
- Digital
Range: 0 to (V
+
- 1.5V)
Input impedance: >1 kΩ
Rise time (10% - 90%): 250 ns (min)
Logic level: TTL
Gate open: HIGH
Gate closed: LOW
Gate turn on/off: 40 ns (60 ns max)
Ramp slew rate: 5 V/µs to 0.001 V/µs
Ramp control: TTL
Ramp active: LOW
Fast reset: <800 ns (dump
mode)
Dump control: TTL
Dump active: LOW
Range-load >5 kΩ: 0 to (V
+
- 1.5 V)
(typical)
Output slew rate: 30 V/µs
Droop rate: <1
µV/µs
(-55
°C
to +85
°C)
<10
µV/µs
(+85
°C
to +125
°C)
<10 nV/µs (1 nV/µs typ) @ +25
°C
Linearity:
±0.01%
(typical)
DC offset:
±2
mV (max)
Output current: Internally limited to 15 mA
Logic level: TTL
V
in
> V
out
: HIGH
V
in
< V
out
: LOW
Propagation delay: <500 ns (typical)
Internal: 470 pF
±5%
External: 50 pF - 1000 pF (optional)
PIN
1
PIN DESCRIPTION
DESCRIPTION
IN
is the analog input of the PH300. This input accepts a positive signal. The input
signal should not be driven greater than the positive analog power supply, or less
than -0.5 V. Schottky diode input protection is recommended.
V-
(-5 V to -6 V)
RCEXT
is a node that allows connection of an external hold resistor and hold
capacitor. When internal hold components are used, RCEXT is left unconnected.
HRES
is the node of the internal hold resistor.
HCAP
is the node of the internal hold capacitor. This node is normally connected
to HRES and DSCHG.
DSCHG
is a node of the current generator used to reset the hold capacitor of the
PH300. The RAMP reset current is set by an external current source or an external
resistor. This node is in a high impedance state when PH300 is in hold mode.
Normally this node is connected to the HCAP node.
ISET
is a node of the current mirror that sets the discharge current. This node
sinks positive current. The discharge current is twice the current at this node. An
external resistor R can be connected between ISET and ground. In this case the
reset current is approximately set to: 2*(Vˉ+ 0.6 V)/(R + 500 Ω).
NOTE! To ensure proper PH300 tracking mode operation, a reset current must be
set regardless of the reset scheme (RAMP or DUMP) used to discharge the hold
capacitor.
GND
DUMP
(active low) is a TTL compatible signal used for fast reset of the PH300. This
signal must be used only in conjunction with the RAMP signal. The DUMP signal
can be active only when RAMP is active. A LOW state of this signal causes the
discharge current to peak up to 20 μA, causing fast discharge of the hold capacitor.
The duration of the DUMP signal should be keep as short as possible, since the high
reset current increases substantially the power consumption of the PH300. A fixed
duration of 1 μs usually is sufficient to completely reset the built in hold capacitor.
The PKDT signal can be used as an indicator for the discharge of the hold capacitor
and may provide a function to control the duration of the DUMP signal.
RAMP
(active low) is a TTL compatible input that controls the linear discharge of
the PH300. When this signal is LOW, the DSCHG node sinks current that resets the
hold capacitor. Since the reset current is constant, the output of PH300 decays
linearly.
GATE
(open high) is a TTL compatible logic input that controls the linear gate of
the PH300. When GATE is in an active HIGH state, the linear gate is open and the
error amplifier of the PH300 can sense the input signal. When GATE is inactive,
the error amplifier input is tied to ground.
PKDT
is an TTL output that indicates the state of the PH300. When this signal is
LOW, the PH300 is in a hold mode.
V
d
(+5 V)
V
+
(+5 V to +12 V)
COMP
is a node for frequency compensation of the PH300 when an external hold
capacitor is used. In this case a resistor between 20 and 100 Ω can be used to reduce
output signal oscillations. This resistor must be connected between COMP and V
+
.
When the internal hold capacitor is used, COMP must be connected to V
+
.
OUT
is the analog output of the PH300. This output is protected for short circuits to
ground or any voltage between ground and the positive analog power supply.
WARNING! Shorting this output to any negative voltage may destroy the PH300
circuit. This output can drive capacitive loads up to 50 pf (typical). For higher
capacitive loads, use a resistor of 50 to 100 Ω in series with OUT. Range is 0 to
(V
+
- 1.5 V), typical.
2
3
4
5
6
OUTPUT CHARACTERISTICS
Analog
7
8
9
Digital Peak
Detect
Hold
Capacitor
ENVIRONMENT
Case
Operating: -55
°C
to +125
°C
Temperature
Storage: -55
°C
to +150
°C
Radiation
Screening
Power Supply
Analog
Hardness: 10
5
rad(Si) (optional with
PH300RH only)
Amptek High Reliability
Quiescent power: <36 mW @ -5V/+10V
V+: +5 V to +12 V (absolute maximum 18 V)
V¯: -5 V to -6 V (absolute maximum (V+
- V¯) <30 V)
Quiescent I+: <2.4 mA (-55
°C
to +125
°C)
Quiescent I¯: <2.4 mA (-55
°C
to +125
°C)
V
d
: +5 V (absolute maximum +7 V)
Quiescent I
d
: <0.01 mA (-55
°C
to +125
°C)
Hermetic, 16 pin hybrid, 600 mil DIP
10
11
12
13
14
15
Digital
Package
16
FUNCTIONAL DIAGRAM
PRINCIPLE OF OPERATION (con’t)
HOLD MODE
In this mode, the charging diode is reverse biased and the
voltage across the hold capacitor is held equal to V
max
. The
peak-detector logic output is in the active state. The leakage
currents of the components connected to the hold capacitor
causes it to discharge. The rate of this discharge is the droop
rate of the PH300.
Peak
Detector
PKDT
GATE
Ampli er
IN
Gate
Charging
Diode
Bu er
OUT
RCEXT
HRES
HCAP
DSCHG
Hold
Resistor
DISCHARGE MODE
COMP
Hold
Capacitor
Reset
Circuit
ISET
RAMP
DUMP
V+
V-
Vd
GND
PRINCIPLE OF OPERATION
The PH300 is a peak-hold device, designed to track an ana-
log input pulse and keep the maximum amplitude as a peak
voltage on a hold capacitor. Major functional elements are
identified in the functional diagram above. An innovative
boot-strap circuit in the input stage of the output buffer ampli-
fier, minimizes the droop error which occurs during periods
of long peakhold duration.
Inputs to the
IN
terminal are gated through a linear gate (gate
input), which is controlled by a TTL compatible logic signal.
When the gate is open (gate high), the input signal is sensed
by the error amplifier. When the gate is closed (gate low), the
input to the error amplifier is grounded and the input signal
does not have any effect on the output of PH300.
During the rise time of the input signal, the hold capacitor is
charged through a charging diode and a hold resistor. For the
PH300, this mode of operation is referred to as the
charging
mode.
The device goes into
hold mode
as soon as the input
reaches V
max
and starts to decay. This state can be terminated
by discharging the hold capacitor. When the circuitry to ac-
complish this is enabled, the PH300 is placed in
discharge
mode.
A special case of the
discharge mode
is the
tracking
mode.
Additional information on each of these operational
modes follows.
The hold capacitor could be intentionally discharged by
enabling the reset circuit within the PH300. Two types of
reset are possible. They are: (i) ramp or linear reset and (ii)
dump or fast reset.
In ramp
discharge mode,
the hold capacitor is discharged
through a constant current draw, which is set with an external
resistor or by an external current source. Constant current
discharge results in a linear decrease of the held voltage.
This operating mode is used in Wilkinson type analog to
digital converters.
In fast
discharge mode,
the hold capacitor is discharged
through a large current draw for a short period of time. The
frequency and duration of this mode of operation determines
the upper limit of power consumption for the device.
TRACKING MODE
Negative feedback to the amplifier could become active
(and correspondingly the peak-detector logic output goes to
the
inactive state)
in
discharge mode
operation, if the hold
capacitor voltage becomes less than or equal to the voltage
at the amplifier input. Therefore, if the discharge rate of
the hold capacitor is higher than the decay rate of the input
signal, the output of the PH300 will follow the input even
when the signal is decaying. This mode of PH300 operation
is referred to as the
tracking mode.
INPUT PROTECTION - CAUTION
CHARGING MODE
The hold capacitor is charged during the rise time of the input
signal. The rise time of the input pulses can be as short as 250
ns. When the PH300 is in
charging mode,
negative feedback
is applied to the amplifier through the high impedance output
buffer. Under this condition, the output voltage follows the
input signal and the peak-detector logic output is in the
in-
active state.
The feedback circuit brakes immediately after
the input goes through a maximum level and starts decaying.
The PH300 then enters
hold mode.
The input (Pin 1) of the PH300 connects internally
directly to an input of a CD4066 Quad Bilateral
Switch. V
dd
, the positive supply for this chip, con-
nects to V+ (+5 to +12V), Pin 14 of the PH300 and
V
ss
connects to GND, Pin 8.
Normal precautions
for the use of the CD4066 must be observed
with the PH300 to avoid damage.
These pre-
cautions include keeping the input voltage within
(V
ss
- 0.5V) and (V
dd
+ 0.5V).
In particular, care should be taken that these condi-
tions are not violated on power-up or power-down,
or when a connector is mated or de-mated with
power on.
Input protection can be provided by a current-limit-
ing resistor (>200 Ω) in series with the input, or by
connecting a diode from the input (Pin1) to ground
(Pin 8), with anode grounded.
+10 V
+5 V
APPLICATION NOTES
V
+
COMP
INPUT
GATE
RAMP
DUMP
INPUT
GATE
RAMP
DUMP
ISET
GND
V
d
PKDT
OUT
RCEXT
HRES
HCAP
DSCHG
V-
RAMP
OUT
PEAK
DETECTOR
OUTPUT
IN
PKDT
-5 V
T
C
H
D
T
Figure 1. - PH300 typical wiring diagram.
Figure 1 shows a typical wiring diagram of PH300 using
the internal hold and reset components. The board design
should prevent any possible paths for leakage currents to
the DSCHG, HCAP, HRES and RCEXT nodes.
Figure 3. - Timing diagram illustrating RAMP
reset of PH300.
IN
A
B
C
D
OUT
IN
RAMP
DUMP
OUT
PKDT
T
C
H
D
T
GATE
RAMP
PKDT
Figure 4. - Timing diagram illustrating DUMP
reset of PH300.
Figures 3 and 4 illustrate the modes of operation
of the PH300 with RAMP and DUMP reset of the
hold capacitor. The linear gate is open. The modes
of operation are indicated with bold characters as
follows:
C
=
charging mode
D
=
discharge mode
H
=
hold mode
T
=
tracking mode
Figure 2. - Gate function of PH300.
Figure 2 shows the use of the linear gate. Four pulses marked
A, B, C, and D are applied to the input of PH300. The linear
gate is open for the first three pulses and closed for the last
pulse, D. The PH300 is not discharged between the pulses.
Only the peaks of the pulses A and C will be detected. Pulse B
passes through the linear gate. However, since its amplitude
is less than the held amplitude of pulse A, there is no change
of the PH300 output. Pulse D does not affect the held peak
voltage of pulse C because the linear gate is closed.
Tel:
+1 (781) 275-2242
Fax:
+1 (781) 275-3470
email:
sales@amptek.com
www.amptek.com
AMPTEK
INC.
14 DeAngelo Drive, Bedford, MA 01730-2204 U.S.A.
京公网安备 11010802033920号
EEWORLD
