2-330061-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-330061-1

2-330061-1: DescriptionCABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-330061-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-330061-1	-	-	View	Buy Now

2-330061-1 Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG

2-330061-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Factory Lead Time	17 weeks
Other features	APPLICABLE CABLES: RG-174/U; RG-188/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	330061
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

AMP/Tyco

Coaxial Connectors

AMP

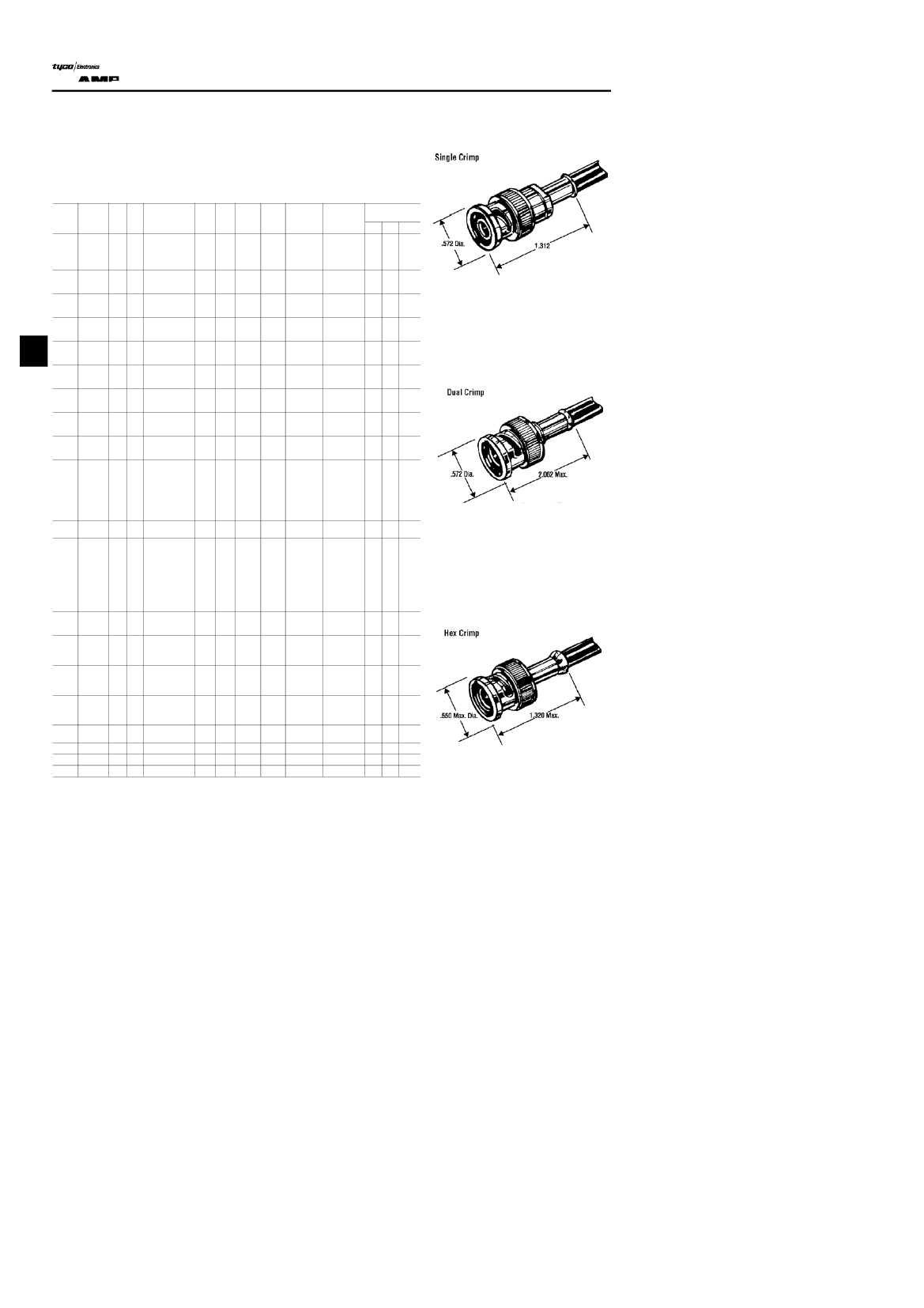

BNC RF connectors have bayonet-lock coupling. AMPÕs exclusive single and dual crimp terminations insure positive

insulation grip and require absolutely no soldering. They provide termination at the lowest overall applied cost.

Rating:

500 volts (RMS).

Frequency:

0-2.5 GHz for single crimp; 0-2 GHz for 75 ohm; 0-4 GHz for all others.

Style:

Mil Type or

Commercial (Com.).

Crimping tools for the connectors are listed on page 413.

BNC 50 or 75 Ohm, Straight Crimp Plugs

Standard single (S), dual (D), and hex (H) crimp termination plugs. Contact plating is gold (G), silver (S), or tin (T). Body plating

is nickel (N) or silver (S). The dielectric is polyethylene (PE), polymethylpenlene (PM), polypropylene (PP) or teflon

(T).

Stock

No.

512-2074

512-2000

512-2318

512-2046

512-2001

Mfr.Õs

Type

225395-7

1-227079-6

2-330061-1

2-331350-4

2-221128-1

Crimp Ohms

Type

For RG/U

Cable

174, 188, 188A, 316

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

179, 179A, 179B,

161, 187, 187A,

Belden 9221

Belden 8218

58, 58A, 58B, 58C

223, 55, 55A, 55B

***

Belden 8281, 9141,

9231, Western

Electric 724, 728,

3049, AT&T 728

Belden 8281, 9141,

9231, Western

Electric 724, 728,

3049, AT&T 728

Belden 8281, 9141,

9231, Western

Electric 724, 728,

3049, AT&T 728

Belden 9907, 89907,

RG-141

Belden 88241

AT&T 734A

AT&T 735A

Contact Body Dielectric

Plating Plating

Style

Mil type

Com.

Mil type

Com.

Mil type

Interchangeable

EACH

Dies for

CERTI-CRIMP

Hand Tool PROCRIMPER

Hand Tool

1-24 25-99 100-499

220009-1

220009-5

69245-1

220009-1

220009-5

58436-3

2.55

1.47

9.63

3.79

1.77

2.30

1.32

8.67

3.41

1.60

1.92

1.10

7.23

2.84

1.33

1.89

512-2076

225395-8

2.52 2.27

512-2004

2-227079-2

Com.

69245-1

1.47 1.32

1.10

512-2312

2-329446-1

Mil type

220009-5

9.61 8.65

7.21

512-2048

2-331350-5

Mil type

69477-2

10.29 9.26

7.72

512-2003

2-221128-3

Com.

58436-3

1.77 1.60

1.33

512-2008

413589-8

Com.

58425-2

3.17 2.86

2.38

512-2032

221185-8

Com.

318451-2

1.89 1.70

1.42

512-2080

1-225395-0

512-2006

1-227079-9

512-2030

413589-3

512-2025

512-2005

512-2022

512-2010

512-2015

512-2012

512-2300

512-2310

512-2017

221128-1

1-221128-0

225395-1

227079-1

227079-5

227079-9

2-329082-1

2-329444-1

2-331350-1

Mil type

Com.

Mil type

Com.

Mil type

Com.

Mil type

Com.

Mil type

Mil typeà

Com.

Mil type

69477-2

69477-4

69478-1

220187-1

69140-1

69478-1

220187-1

69477-1

220187-2

69141-1

69477-1

220043-1

58330-1

58425-2

58436-1

220189-3

58435-1

220189-3

58435-1

58436-1

220189-4

58435-1

58085-1

58425-1

58085-1

58435-1

58425-1

220189-6

2.55 2.30

1.47 1.32

3.30 2.89

1.59

1.77

2.55

1.47

1.32

7.43

8.67

3.87

1.43

1.60

2.30

1.32

1.19

6.69

7.87

3.41

1.91

1.10

2.38

1.19

1.33

1.92

1.10

.99

5.58

6.56

2.84

1.92

.99

1.33

1.19

1.89

1.10

5.58

6.56

3.23

1.42

2.38

1.42

1.33

2.38

3.35

512-2066

225395-3

512-2014

227079-6

512-2007

512-2026

512-2023

512-2016

512-2088

512-2024

512-2302

512-2028

512-2042

512-2034

512-2037

1-221128-1

221128-2

225395-2

227079-7

1-227079-1

227079-3

2-329083-1

2-329445-1

331350

221185-2

413589-2

2.55 2.30

1.32 1.19

1.77

1.59

2.52

1.47

7.43

8.75

4.31

1.89

3.17

1.60

1.43

2.27

1.32

6.69

7.87

3.92

1.70

2.86

512-2036

221185-9

512-2043

1-221128-7

512-2044

413589-9

512-2058

4-331350-0

1.89 1.70

1.77 1.60

3.17 2.86

4.65 4.06

512-2045

1-221128-2

Com.

58436-2

1.77 1.60

1.33

512-2049

413589-5

Com.

852922-3

3.17 2.86

2.38

512-8668

2-221128-7

512-2053

413589-1

512-2054

413589-7

512-2055

1-413589-0

Com.

58436-1

852922-3

58425-1

1.77 1.60

3.17 2.86

3.17 2.89

3.17 2.86

1.33

2.38

Included in PRO-CRIMPER II assembly 58433-1. Included in PRO-CRIMPER II assembly 58433-2. Weatherproof - M39012/16B0004. àM39012/16B0008.

**59, 59A, 59B, 62, 62A, 62B, 124, 140, 210, Belden 9291, 9209, 9268. ***Belden 8212, 9104, 9112, 9240, 9167, 9259, 9266, Times FM-59, (RG59 type with

20 AWG C.C.).

410

ALLIED

For Local Personalized Service Call 1-800-433-5700

2-330061-1 Related Products

	2-330061-1	227079-1	413589-1	413589-8
Description	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	unknow	unknow	unknown	not_compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	2.5 GHz	4 GHz	2 GHz	2 GHz
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.35	1.3	1.3	1.3
Other features	APPLICABLE CABLES: RG-174/U; RG-188/U	-	APPLICABLE CABLES: BELDEN 88241; RG 302/U; RG 62A/U	APPLICABLE CABLES: RG 179/U; RG 179A/U; RG 179B/U; RG 161/U; RG 187/U; RG 187A/U; BELDEN 9221
Contact to complete cooperation	NOT SPECIFIED	-	GOLD	NOT SPECIFIED
Contact material	BRASS	-	BRASS	NOT SPECIFIED
Coupling type	BAYONET	-	BAYONET	BAYONET
DIN compliance	NO	-	NO	NO
Filter function	NO	-	NO	NO
IEC compliance	NO	-	NO	NO
insulator material	TEFLON	-	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	-	NO	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	-	NO	NO
Base Number Matches	1	1	-	1
