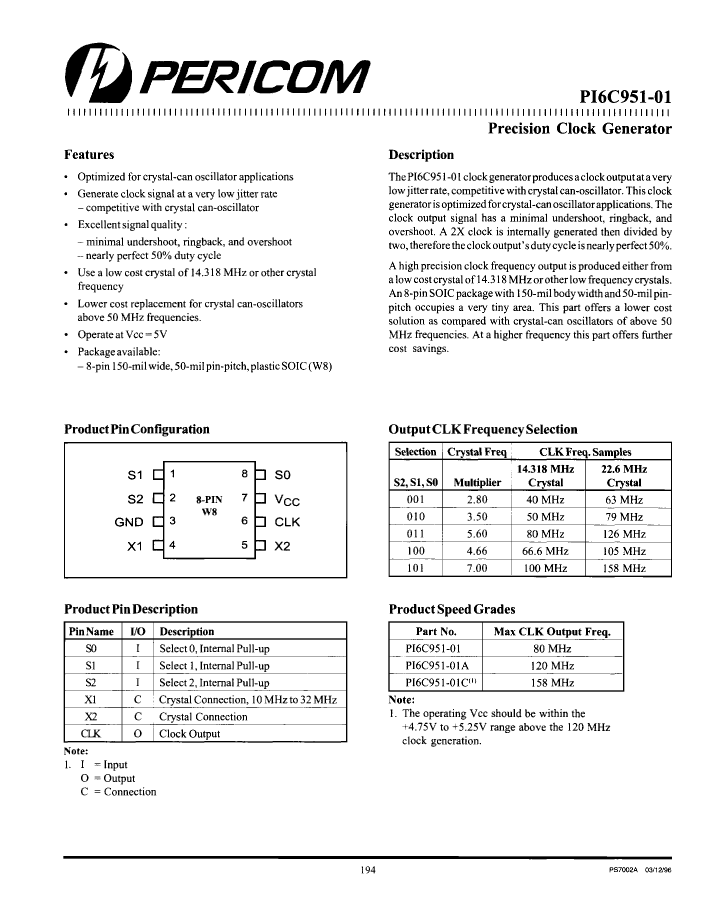

Preview

PI6C951-01CWX: DescriptionClock Generator, 158MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size81KB，2 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI6C951-01CWX Overview

Clock Generator, 158MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8

PI6C951-01CWX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC
package instruction	0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	158 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum slew rate	20 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

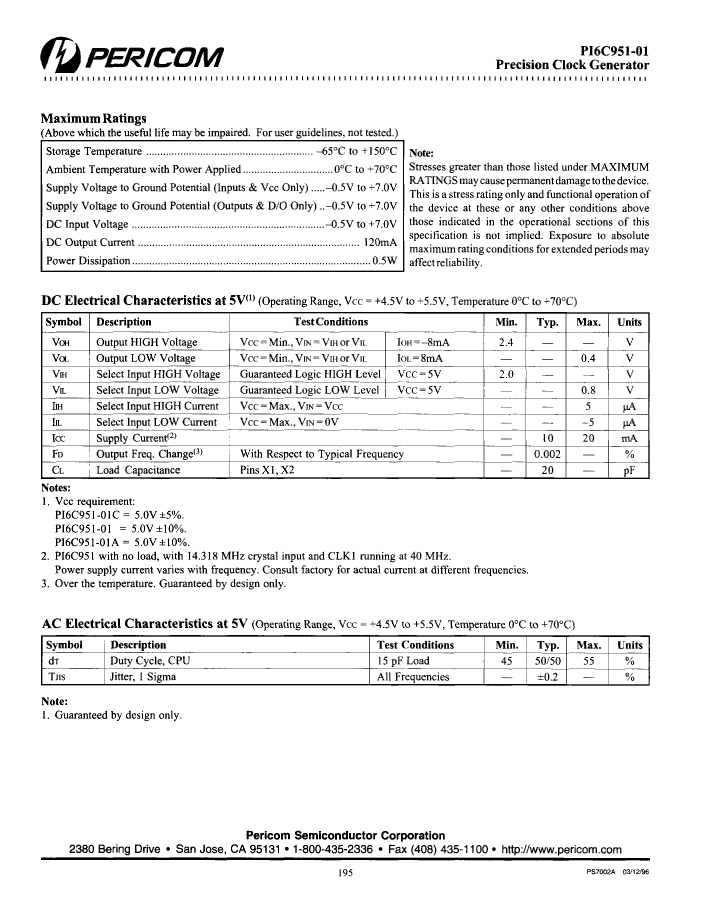

Preview

Download Datasheet

View All

PI6C951-01CWX Related Products

	PI6C951-01CWX	PI6C951-01WX	PI6C951-01W	PI6C951-01CW	PI6C951-01AW	PI6C951-01AWX
Description	Clock Generator, 158MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	Clock Generator, 80MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	Clock Generator, 80MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	Clock Generator, 158MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	Clock Generator, 120MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	Clock Generator, 120MHz, CMOS, PDSO8, 0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	SOP,	SOP, SOP8,.25	0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8	0.150 INCH, 1.27 MM PITCH, PLASTIC, SOIC-8
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output clock frequency	158 MHz	80 MHz	80 MHz	158 MHz	120 MHz	120 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Master clock/crystal nominal frequency	14.318 MHz	14.318 MHz	14.318 MHz	14.318 MHz	14.318 MHz	14.318 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
