P80C31UFBB-T: DescriptionIC 8-BIT, MICROCONTROLLER, PQFP44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size95KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P80C31UFBB-T Overview

IC 8-BIT, MICROCONTROLLER, PQFP44, Microcontroller

P80C31UFBB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	QFP,
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	33 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.1 mm
Maximum slew rate	72 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

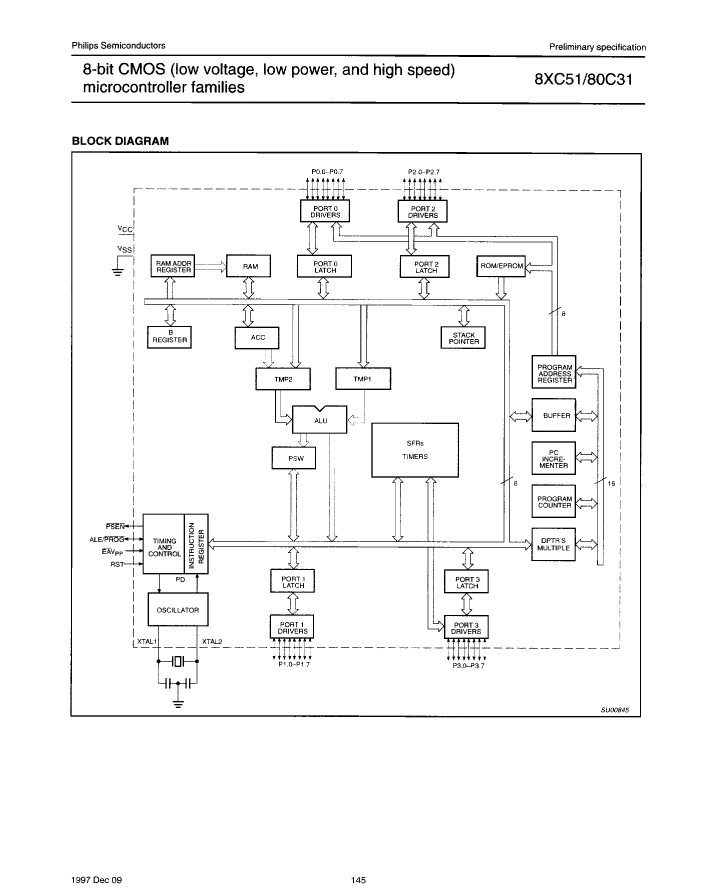

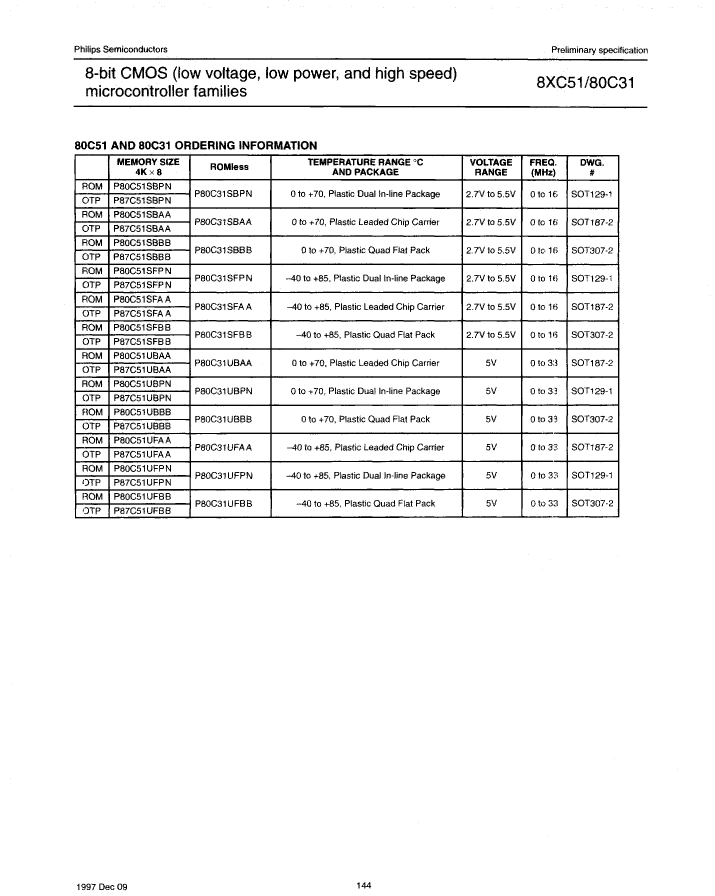

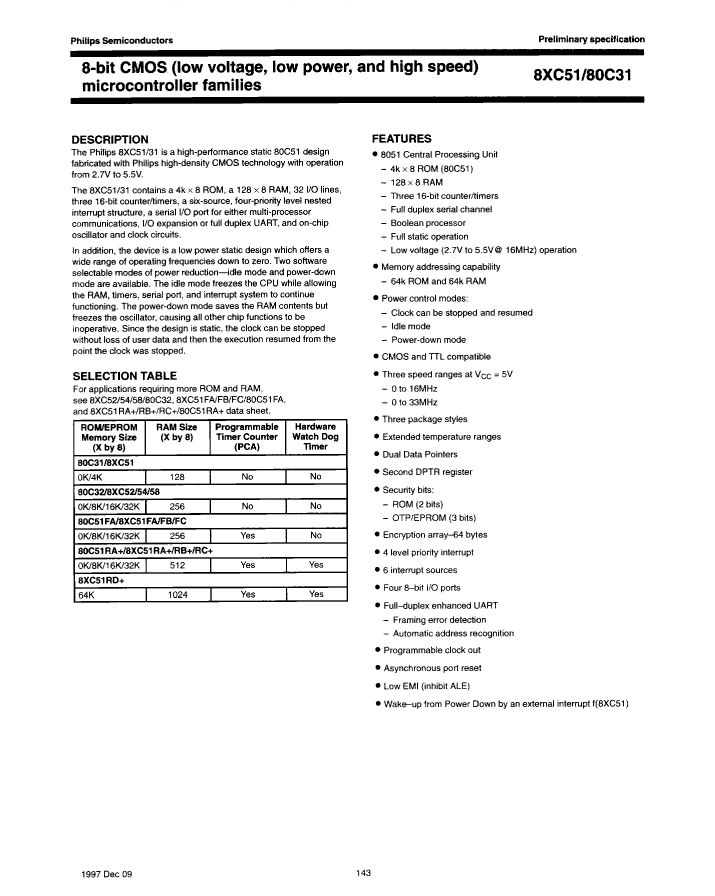

Preview

Download Datasheet

View All

P80C31UFBB-T Related Products

	P80C31UFBB-T	P80C31UBAA-T	P80C31UFAA-T	P80C31UBBB-T	P80C51UBBB-T	P87C51UBBB-T	P87C51UFBB-T	P80C51UFBB-T
Description	IC 8-BIT, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, MICROCONTROLLER, PQCC44, Microcontroller	IC 8-BIT, MICROCONTROLLER, PQCC44, Microcontroller	IC 8-BIT, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, MROM, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, OTPROM, 33 MHz, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, MROM, MICROCONTROLLER, PQFP44, Microcontroller
package instruction	QFP,	QCCJ,	QCCJ,	QFP,	QFP,	QFP,	QFP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
maximum clock frequency	33 MHz	33 MHz	33 MHz	33 MHz	33 MHz	33 MHz	33 MHz	33 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44
length	10 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Number of I/O lines	32	32	32	32	32	32	32	32
Number of terminals	44	44	44	44	44	44	44	44
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	QCCJ	QFP	QFP	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	4.57 mm	4.57 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm	2.1 mm
Maximum slew rate	72 mA	72 mA	72 mA	72 mA	72 mA	72 mA	72 mA	72 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	J BEND	J BEND	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	10 mm	10 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	-	1	1	1	1	1	1	-
