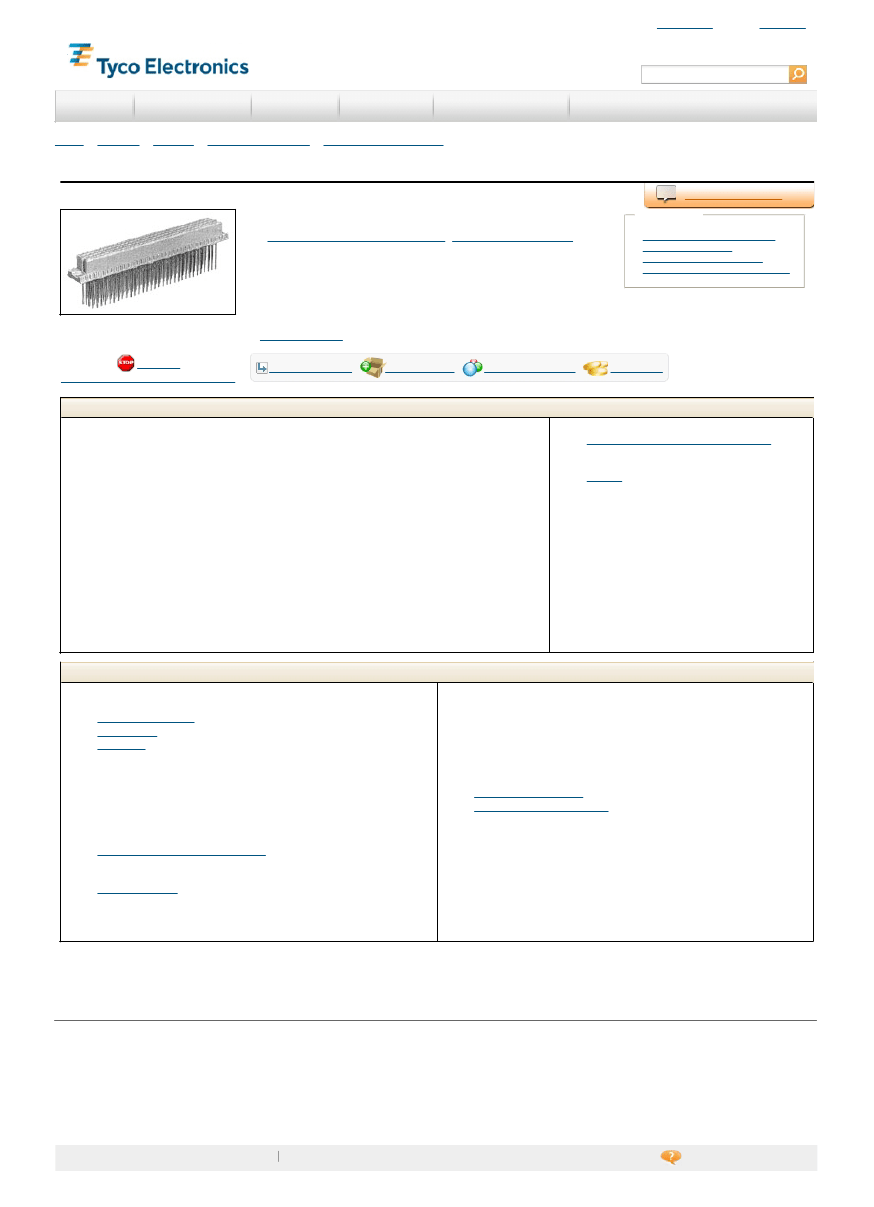

216416-1 Product Details
Live Product Chat
Eurocard Four-Row And Five-Row Assemblies
C onve rte d to EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
216416-1
T E I nternal N umber: 2 1 6 4 1 6 - 1
Product Highlights:
l
C onnector Type = Receptacle
l
128 Positions
l
Number of Rows = 4
l
Vertical Mount Angle
l
DIN Level = I
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Product Images:
l
Recommended PC Board Hole Pattern
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
C onnector Type = Receptacle
l
Number of Positions
= 128
l
Mount Angle
= Vertical
l
DIN Level
= I
l
PC B Thickness (Minimum) (mm [in]) = 1.57 [0.062]
l
Size = Standard
l
Post Type = C ompliant Post
l
C olor = Gray
l
C omment = Seating tool required.
Termination Related Features:
l
Termination Post Length (mm [in])
= 17.00 [0.669]
Body Related Features:
l
Number of Rows
= 4
l
Rows Loaded = A, B, D, C
l
C ontact C ross Section (mm [in]) = 0.64 [.025] Sq.
Contact Related Features:
l
C ontact Base Material = Phosphor Bronze
Housing Related Features:
l
Housing Material = Polyester
l
Housing Flammability Rating = UL 94V-0
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
l
RoHS/ELV C ompliance History = C onverted to comply with RoHS
directive
Other:
l
Brand = AMP
