216416-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 216416-4

216416-4: DescriptionCONNECTOR,DIN-41612,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

216416-4 Overview

CONNECTOR,DIN-41612,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,COMPLIANT FIT TERMINAL

216416-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.516 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	128
Base Number Matches	1

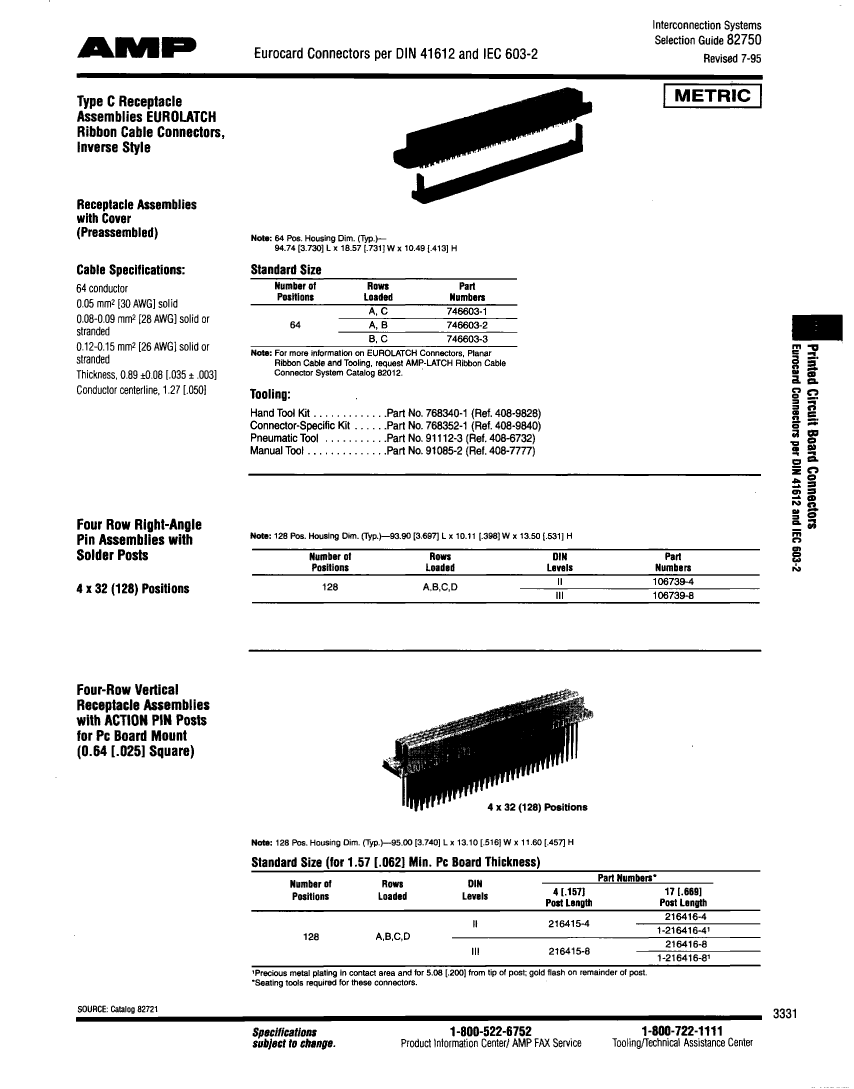

Preview

Download Datasheet

View All

216416-4 Related Products

	216416-4	216416-8	STL12-B03-VTT-38U	STL2-0584PGG-178-14PCTRU
Description	CONNECTOR,DIN-41612,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,COMPLIANT FIT TERMINAL	CONNECTOR,DIN-41612,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,COMPLIANT FIT TERMINAL	Board Connector, 38 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle
Reach Compliance Code	unknow	unknow	compliant	compliant
body width	0.516 inch	0.516 inch	0.079 inch	0.219 inch
body length	3.74 inch	3.74 inch	2.992 inch	0.7 inch
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	500VAC V	1000VAC V
insulator material	POLYESTER	POLYESTER	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.079 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	2	2
Number of rows loaded	4	4	1	2
Maximum operating temperature	125 °C	125 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	STAGGERED	RECTANGULAR
Rated current (signal)	1.5 A	1.5 A	1.5 A	3 A
Guideline	UL, CSA	UL, CSA	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.0066 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	128	128	38	14
Is it Rohs certified?	conform to	-	conform to	conform to
ECCN code	EAR99	-	EAR99	EAR99
subject depth	0.457 inch	0.457 inch	0.083 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch
PCB contact row spacing	2.54 mm	2.54 mm	-	3.81 mm
