PUMA64SDVA512T1X datasheet, PDF

Datasheet> All Categories > storage> storage> PUMA64SDVA512T1X

PUMA64SDVA512T1X: DescriptionSynchronous DRAM Module, 8MX72, CMOS, PQFP160, 28 X 28 MM, 5.02 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-160; Categorystorage storage; File Size160KB，4 Pages; ManufacturerAPTA Group Inc

Download Datasheet Parametric Compare View All

PUMA64SDVA512T1X Overview

Synchronous DRAM Module, 8MX72, CMOS, PQFP160, 28 X 28 MM, 5.02 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-160

PUMA64SDVA512T1X Parametric

Parameter Name	Attribute value
Maker	APTA Group Inc
Parts packaging code	QFP
package instruction	QFP,
Contacts	160
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Other features	AUTO/SELF REFRESH
JESD-30 code	S-PQFP-G160
length	27.6 mm
memory density	603979776 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	160
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
organize	8MX72
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	5.02 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	27.6 mm

Preview

Download Datasheet

View All

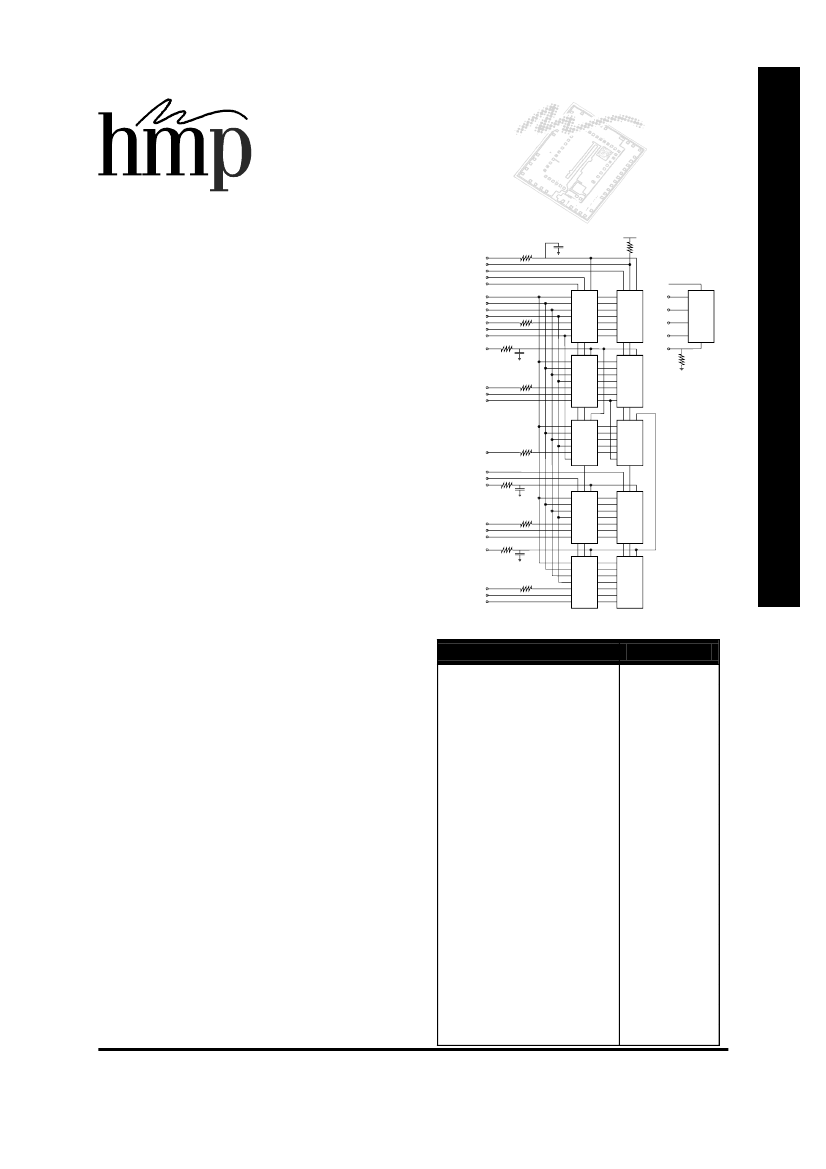

8M x 64 (72) Synchronous DRAM

PUMA 64SDVA512X

Issue 5.0 December 1999

Description

The PUMA64SDVA512X is a cost effective,

unbuffered synchronous DRAM ECC Memory

component organised as 8M x 64 (or 72). It uses ten

4M x 16 SDRAM devices in a 160 pin Plastic Quad

Flat Pack (PQFP) package to achieve up to twice the

density of existing standard solutions. The device is

designed to be soldered direct to the PCB,

eliminating all socket reliability problems.

PC-100 compatible variants are available which can

sustain data transfer rates up to 100MHz. 66MHz

variants are also available. All control, data and

address input circuits are sampled on the positive

edge of the system clock for fully synchronous

operation.

A 256byte EEPROM is used to implement serial

presence detect capability on board the module. The

lower 128 bytes is reserved for module configurations

programmed by the factory. The upper 128bytes are

available for customer use.

Block Diagram

Ω

CLK2

CKE1

/CS1

CKE0

/CS0

/RAS

/CAS

/WE

A(11:0), BA0~1

D(15:0)

DQM0

DQM1

CLK0

10pf

15pf

Vdd

10k

SCL

SDA

Ω

4M x 16

SDRAM

4M x 16

SDRAM

SPD

EEPROM

Ω

47k

Ω

D(47:32)

DQM4

DQM5

4M x 16

SDRAM

4M x 16

SDRAM

Ω

CB(7:0)

4M x 16

SDRAM

4M x 16

SDRAM

/CS3

/CS2

CLK3

Ω

15pf

Ω

D(31:16)

DQM2

DQM3

Ω

CLK1

10pf

4M x 16

SDRAM

4M x 16

SDRAM

Features

• Unbuffered synchronous DRAM module organised

as 2 banks of 4Mx64 (or 72)

• 3.3V + 0.3V power supply.

• Commercial and Industrial temperature grades

• Space saving 28mm square 160pin PQFP package

(0.65mm pin pitch).

• PC 100 compatible operation.

Ω

D(63:48)

DQM6

DQM7

4M x 16

SDRAM

4M x 16

SDRAM

Pin Functions

Description

Address Input

Select Bank

Data I/O

Clock Input

Clock Enable Input

Chip Select

Row Address Strobe

Column Address Strobe

Write Enable

Data I/O Mask

Power

Ground

Serial Data I/O

Serial Clock

Address in EEPROM

Write Protection

Check Bits

Do Not Use

No Connection

Signal

A0~A11

BA0~BA1

D0~D63

CLK0~CLK3

CKE0~CKE1

/CS0~3

/RAS

/CAS

/WE

DQM~7

VDD

VSS

SDA

SCL

SA0~2

CB0~7

DNU

•

4 internal SDRAM banks

•

Fully synchronous operation to rising edge of sys-

tem clock.

•

Auto refresh and self refresh modes (4K/64ms)

•

Sequential and interleved burst mode operation

•

Programmable burst length (1,2,4,8,Full page)

•

Serial presence detect EEPROM

•

On board decoupling capacitors

Package Details

PUMA 64 - Plastic 160pin PQFP package

Max. Dimensions - 31.35 x 31.35 x 5.02

Max. over pins

All dimensions in mm.
