NDS8410S62Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> NDS8410S62Z

NDS8410S62Z: DescriptionSmall Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8; CategoryDiscrete semiconductor The transistor; File Size112KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

NDS8410S62Z Overview

Small Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8

NDS8410S62Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	10 A
Maximum drain-source on-resistance	0.015 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G8
Number of components	1
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

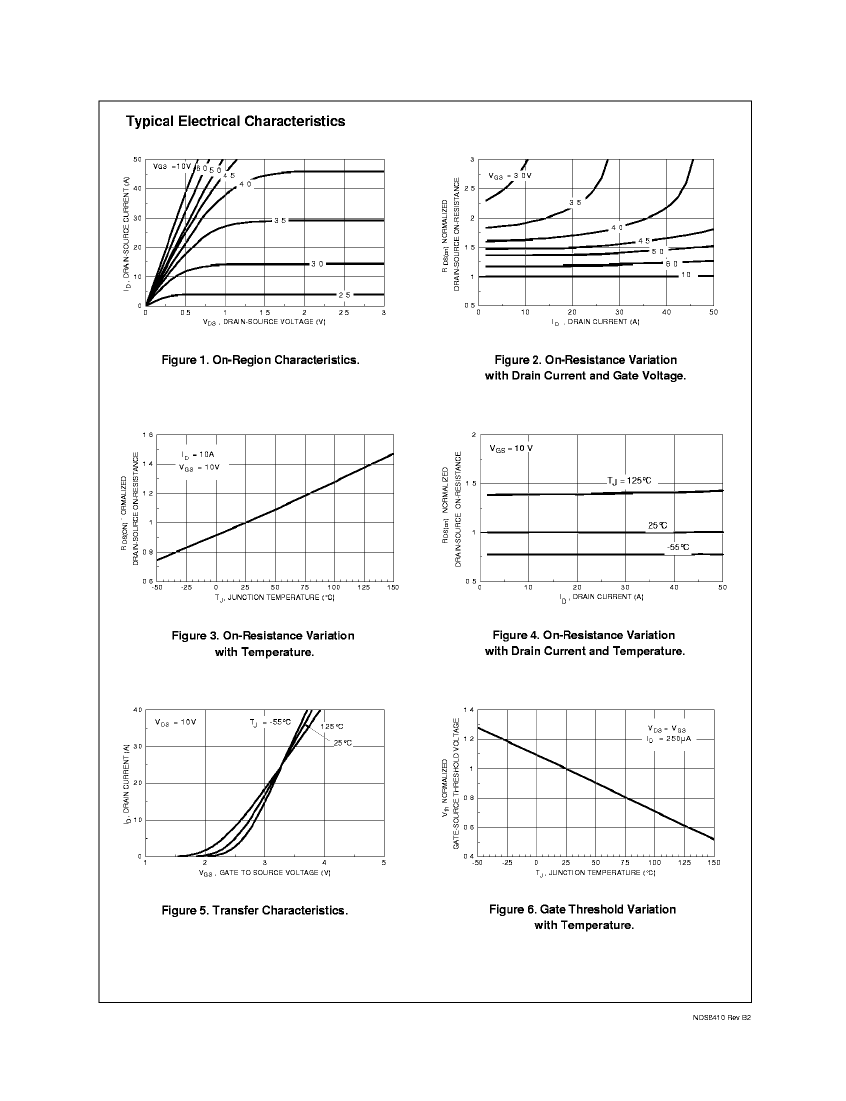

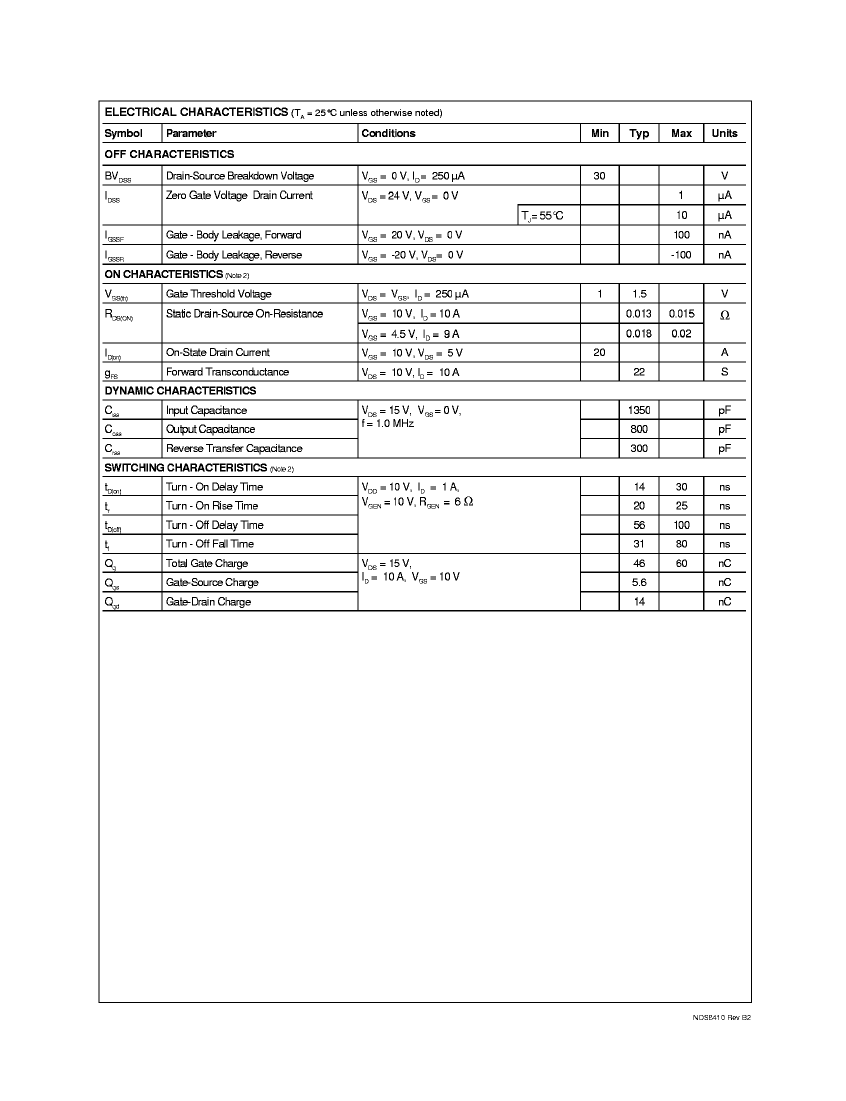

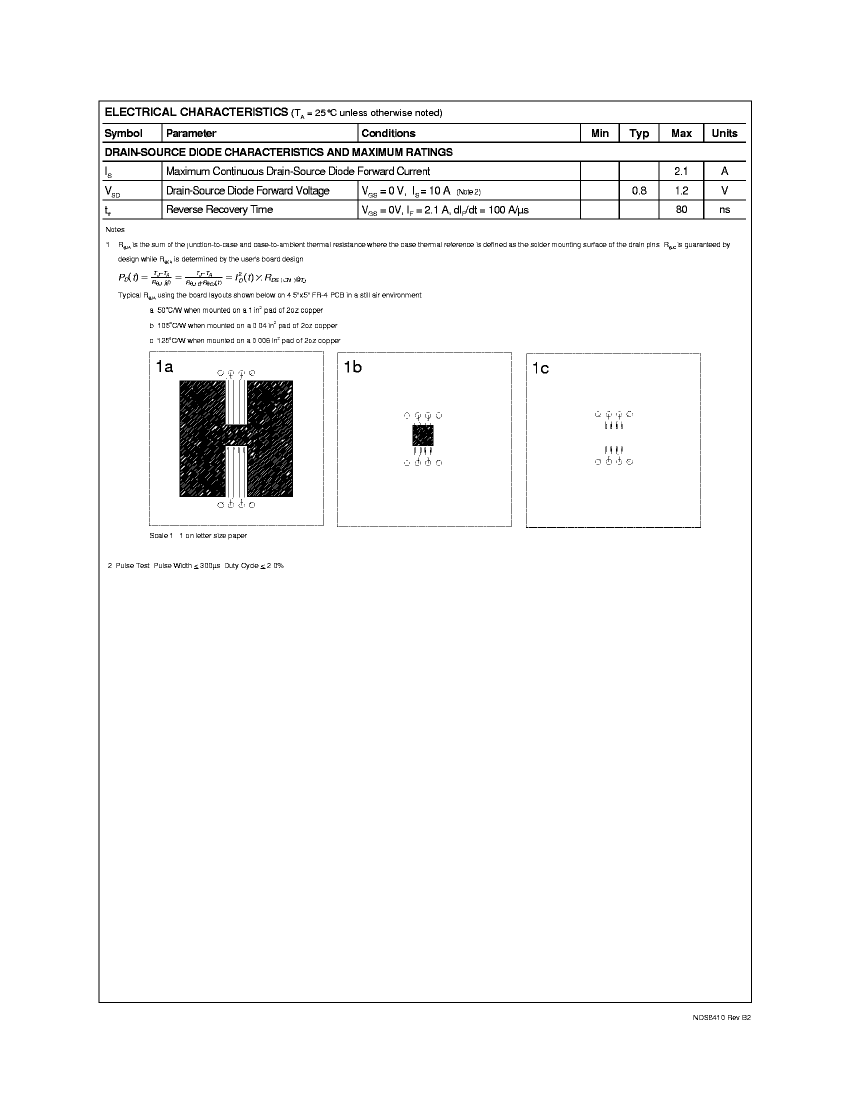

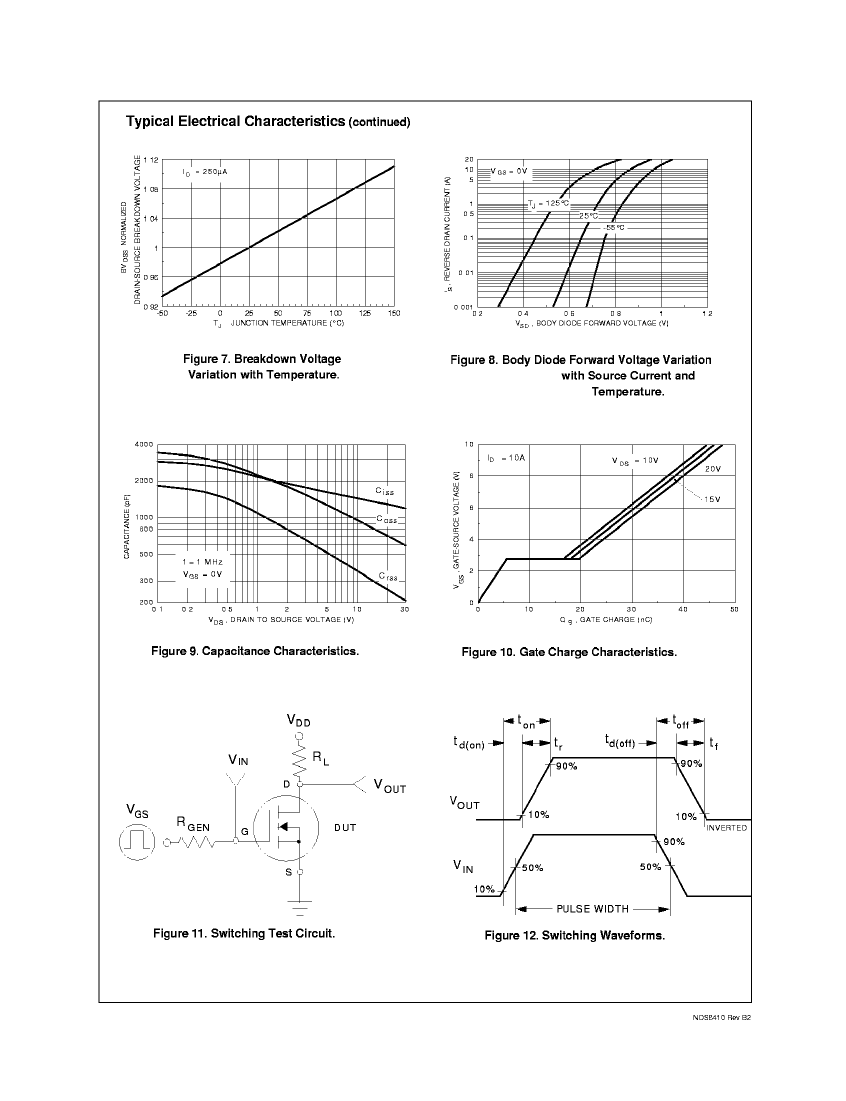

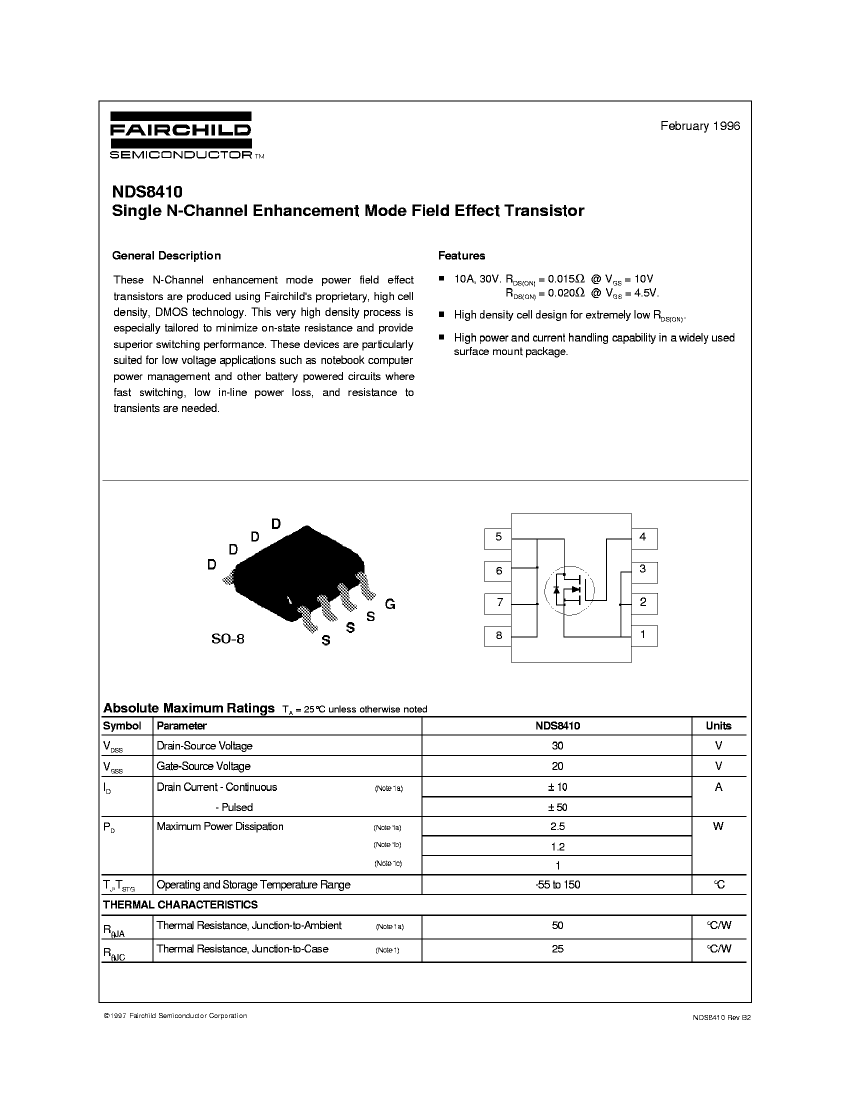

Preview

Download Datasheet

View All

NDS8410S62Z Related Products

	NDS8410S62Z	NDS8410L99Z	NDS8410D84Z	NDS8410L86Z
Description	Small Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8	Small Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8	Small Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8	Small Signal Field-Effect Transistor, 10A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8
Parts packaging code	SOT	SOT	SOT	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V	30 V	30 V	30 V
Maximum drain current (ID)	10 A	10 A	10 A	10 A
Maximum drain-source on-resistance	0.015 Ω	0.015 Ω	0.015 Ω	0.015 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
Number of components	1	1	1	1
Number of terminals	8	8	8	8
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Maker	Fairchild	-	Fairchild	Fairchild
