PI6C9910H: DescriptionPLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), CMOS, PDSO24, 0.209 INCH, SSOP-24; Categorylogic logic; File Size184KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI6C9910H Overview

PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), CMOS, PDSO24, 0.209 INCH, SSOP-24

PI6C9910H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP, SSOP24,.3
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
series	6C
Input adjustment	MUX
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	8.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	PLL BASED CLOCK DRIVER
MaximumI(ol)	0.046 A
Number of functions	1
Number of inverted outputs
Number of terminals	24
Actual output times	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	0.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.75 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
minfmax	80 MHz

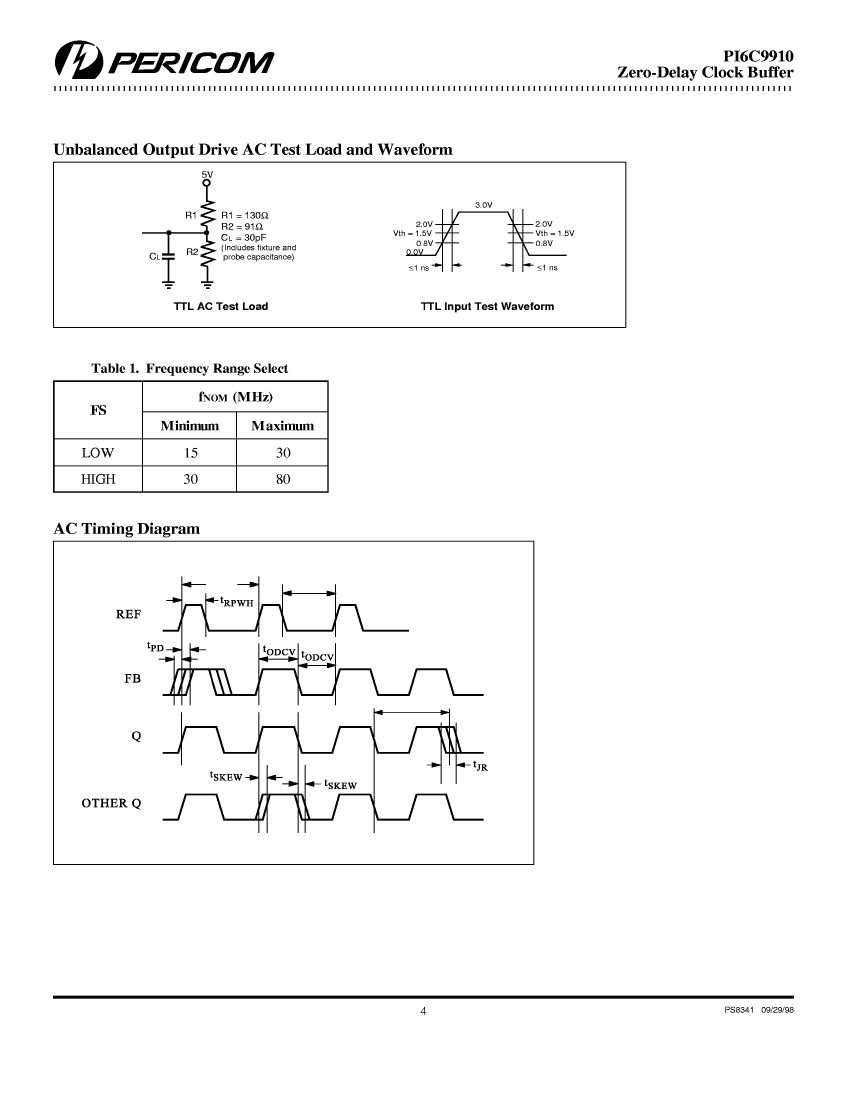

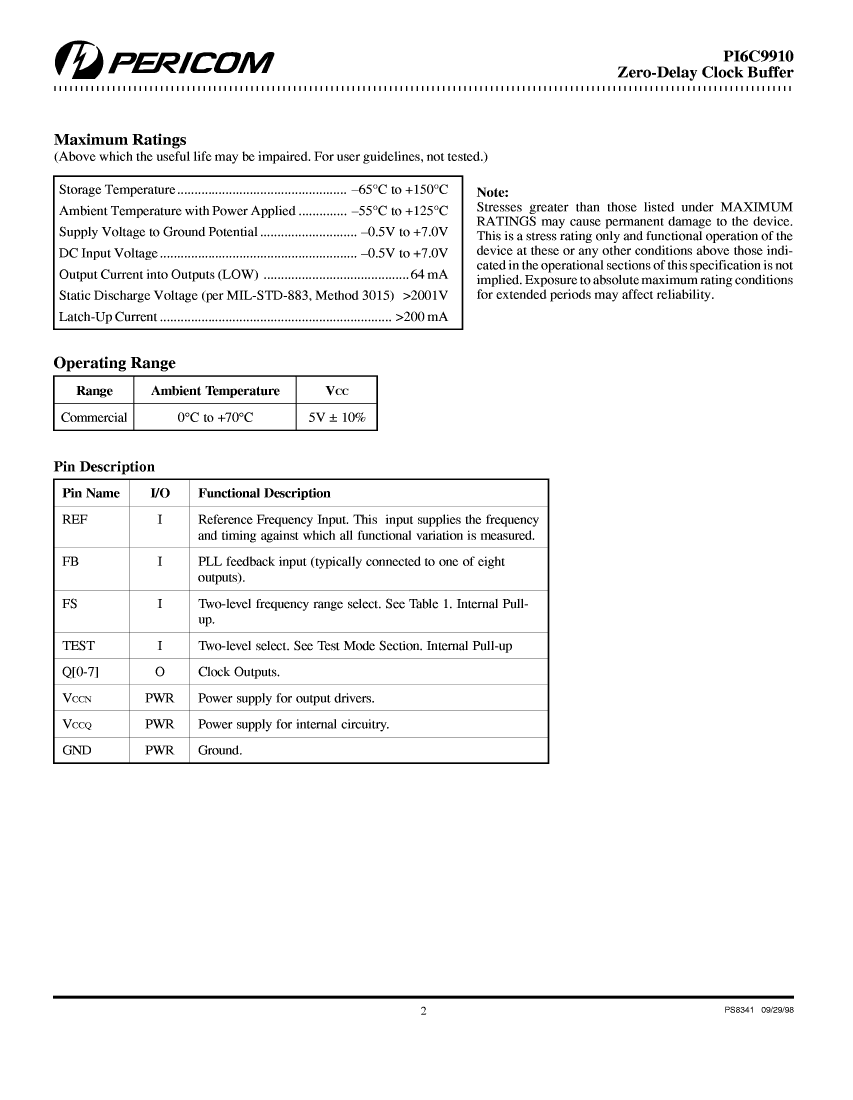

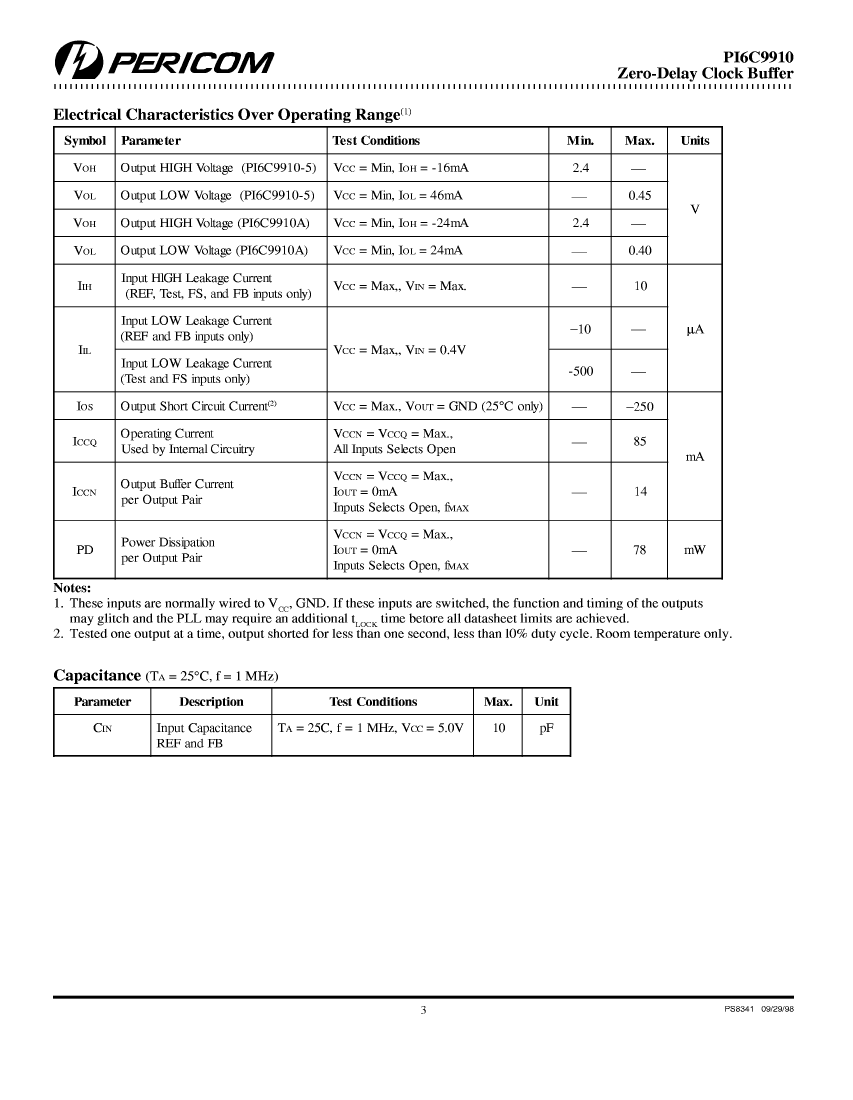

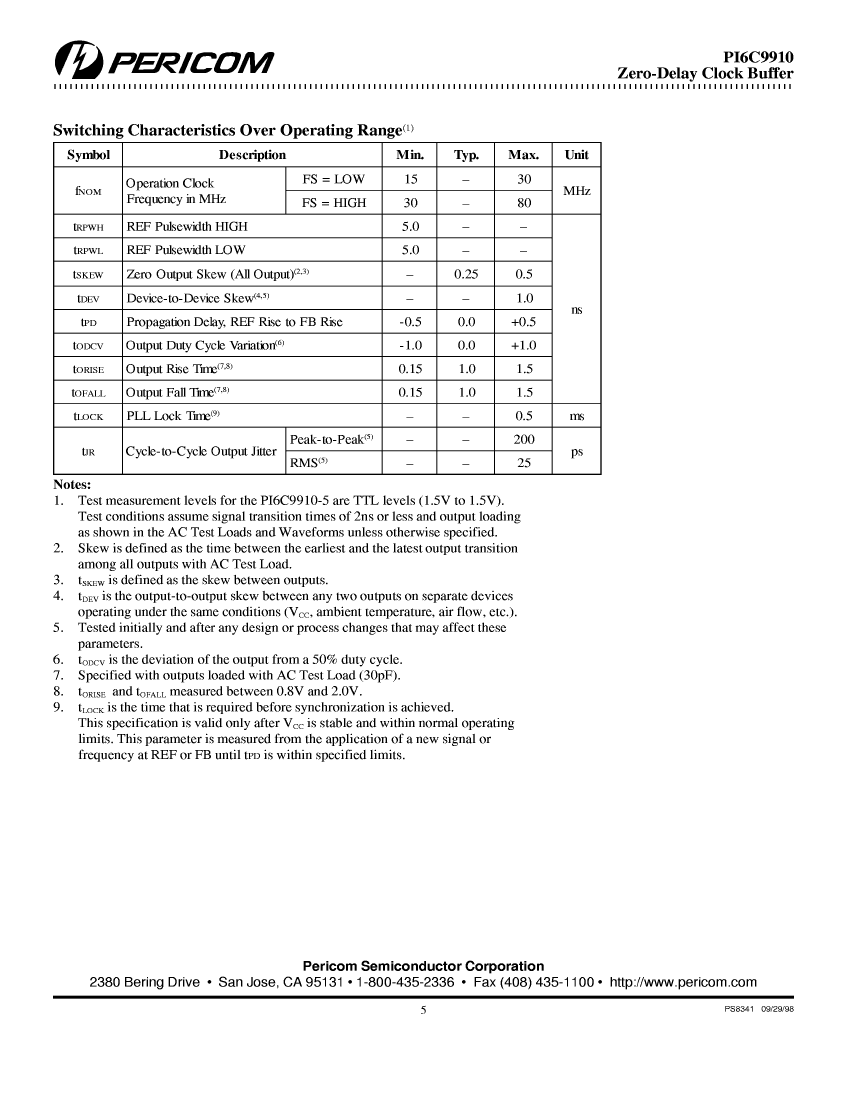

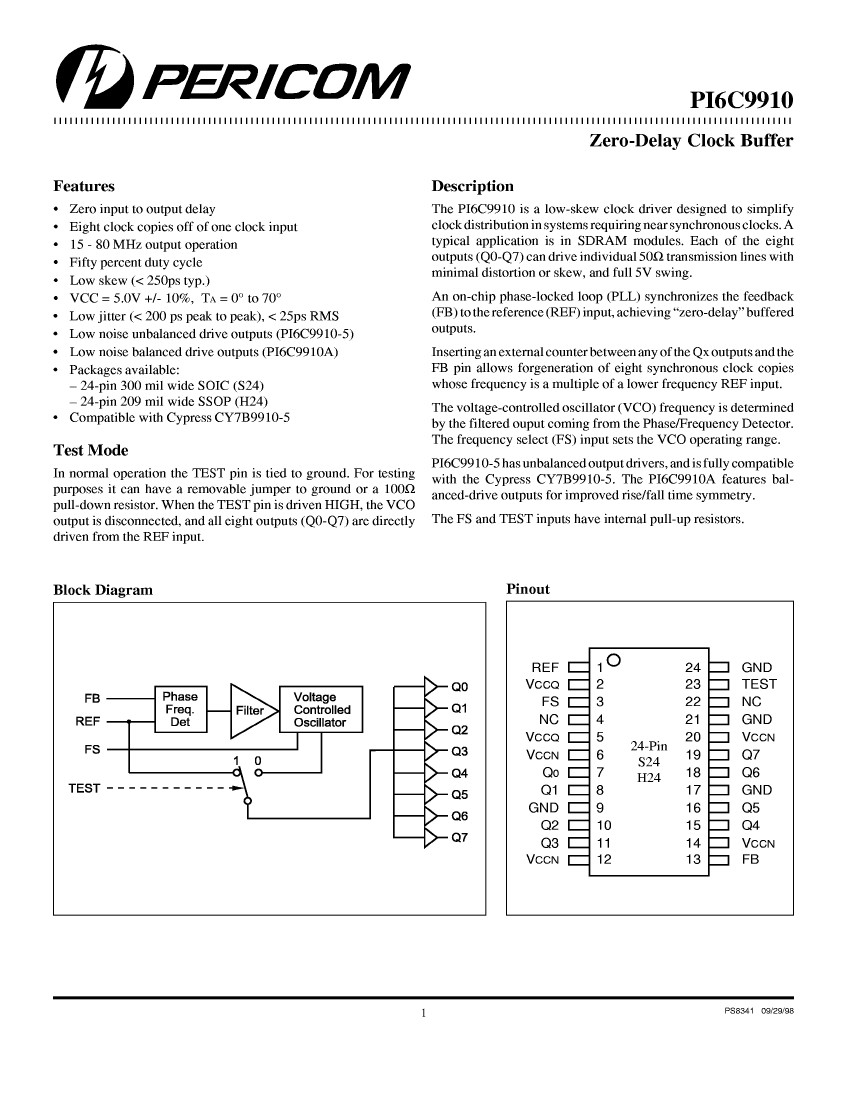

PI6C9910H Preview
