PI74ALPTX16244A: DescriptionBus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48; Categorylogic logic; File Size163KB，8 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74ALPTX16244A Overview

Bus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48

PI74ALPTX16244A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP48,.3,20
Contacts	48
Reach Compliance Code	compliant
ECCN code	EAR99
Control type	ENABLE LOW
series	ALPT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	12.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/3.3 V
Prop。Delay @ Nom-Sup	6 ns
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm

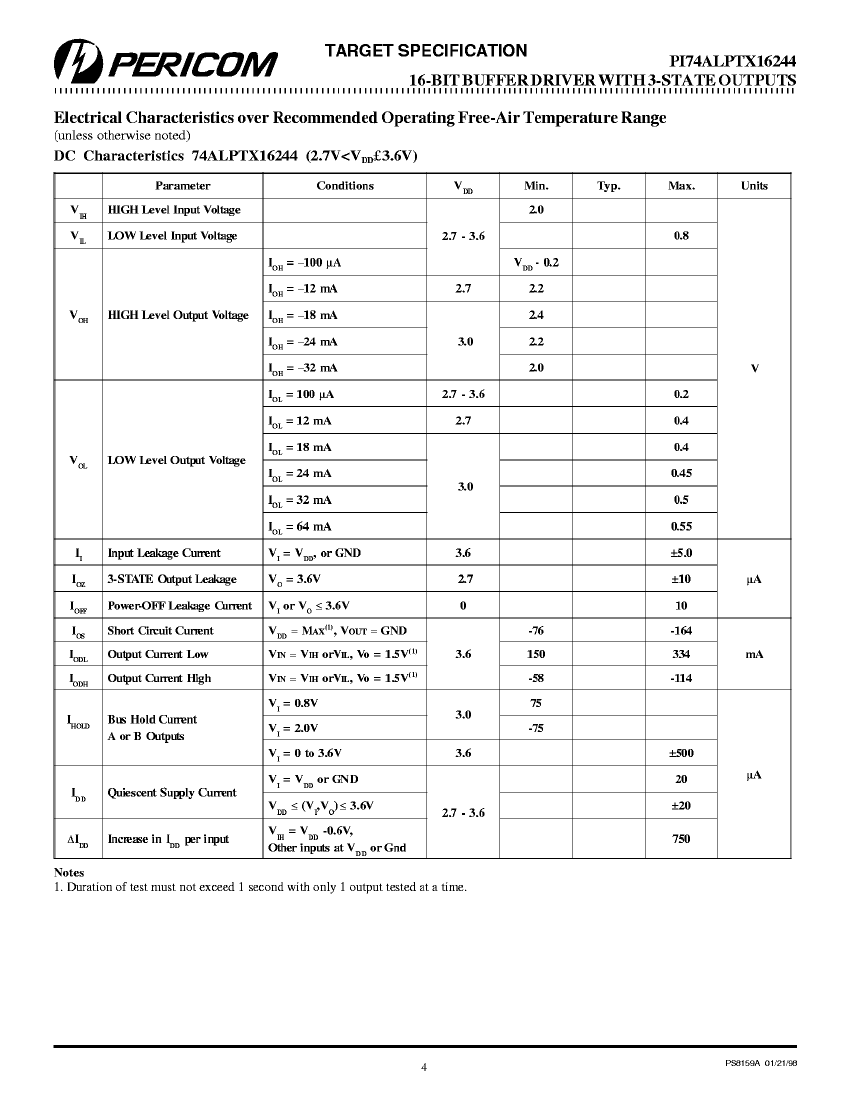

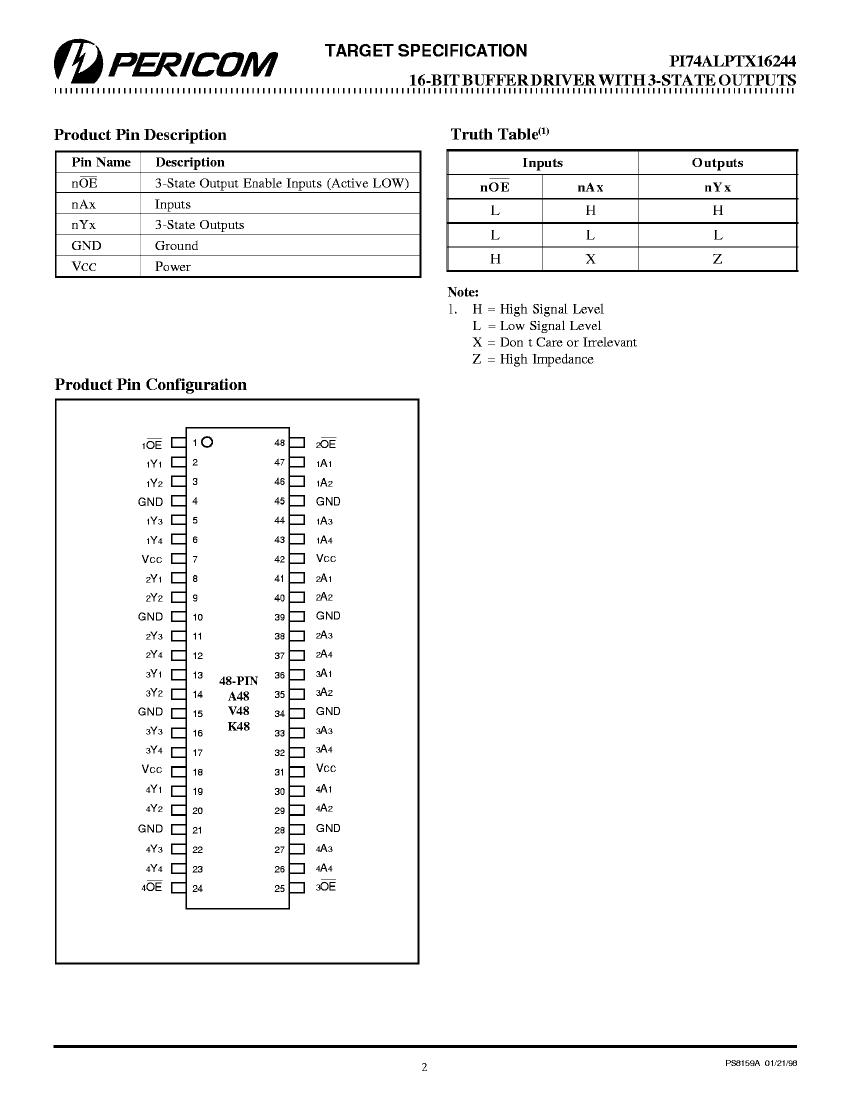

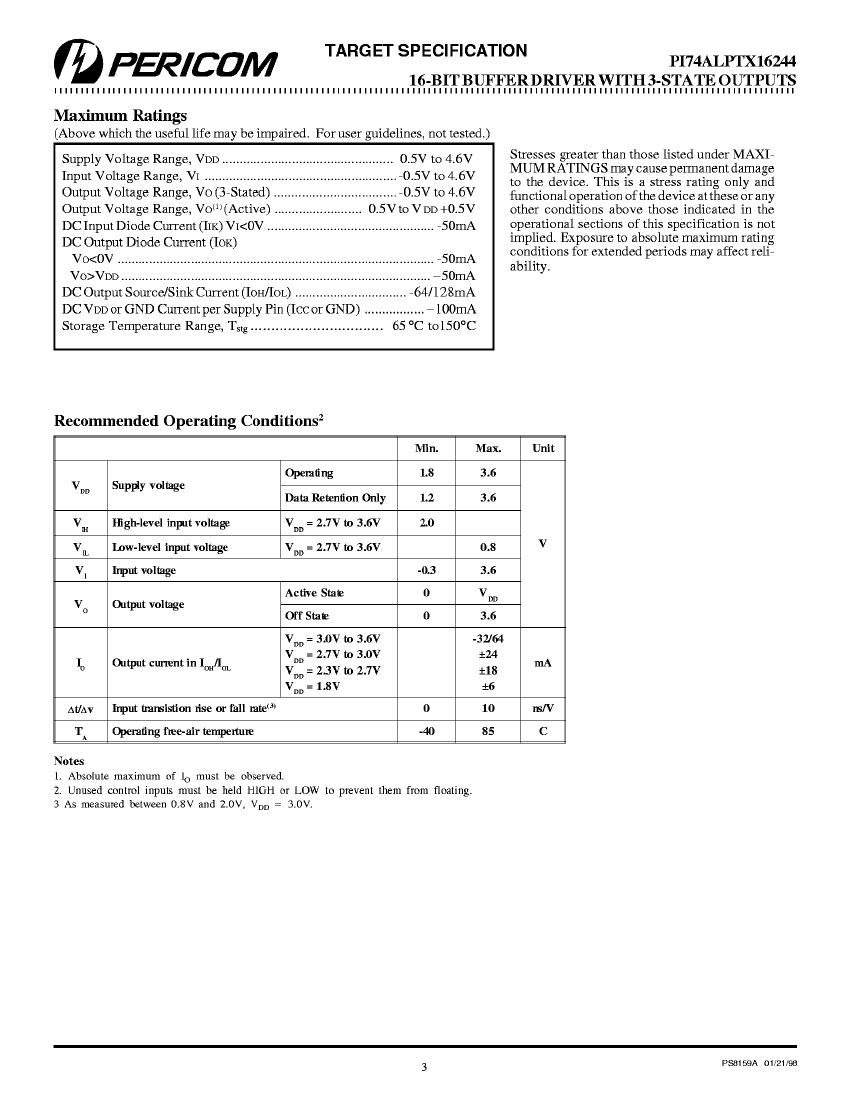

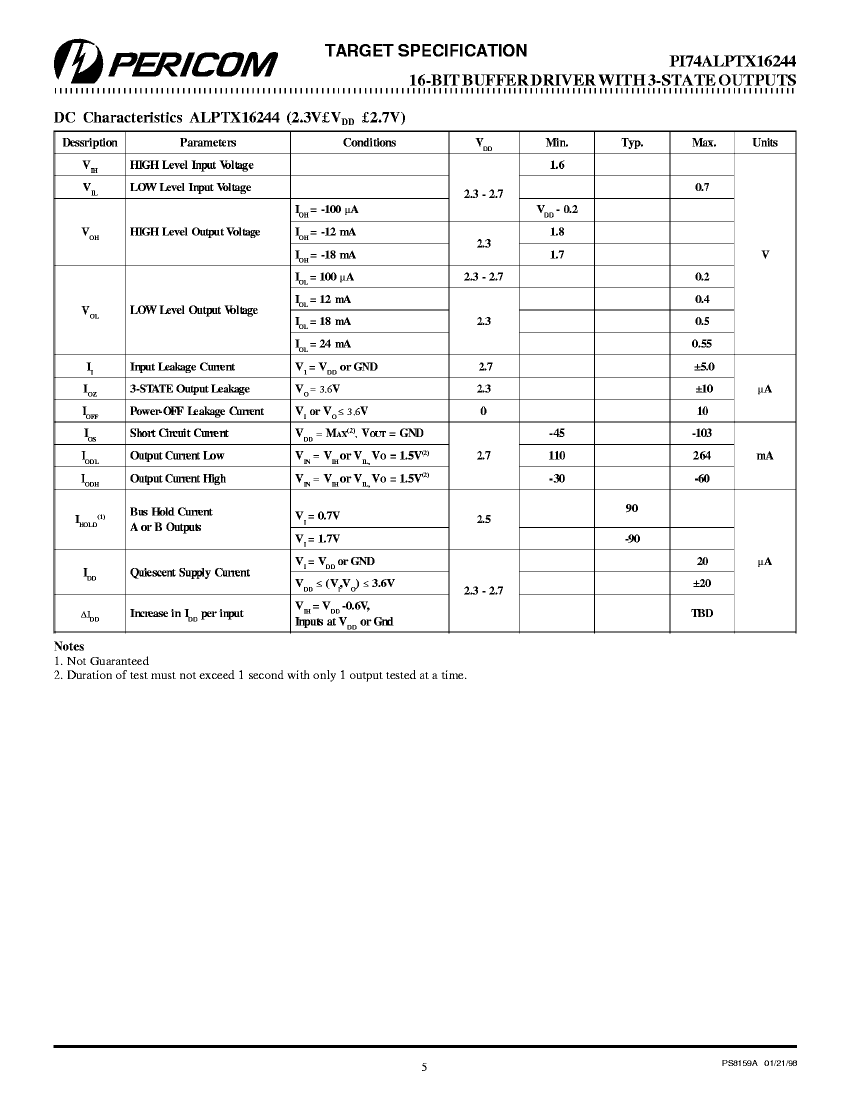

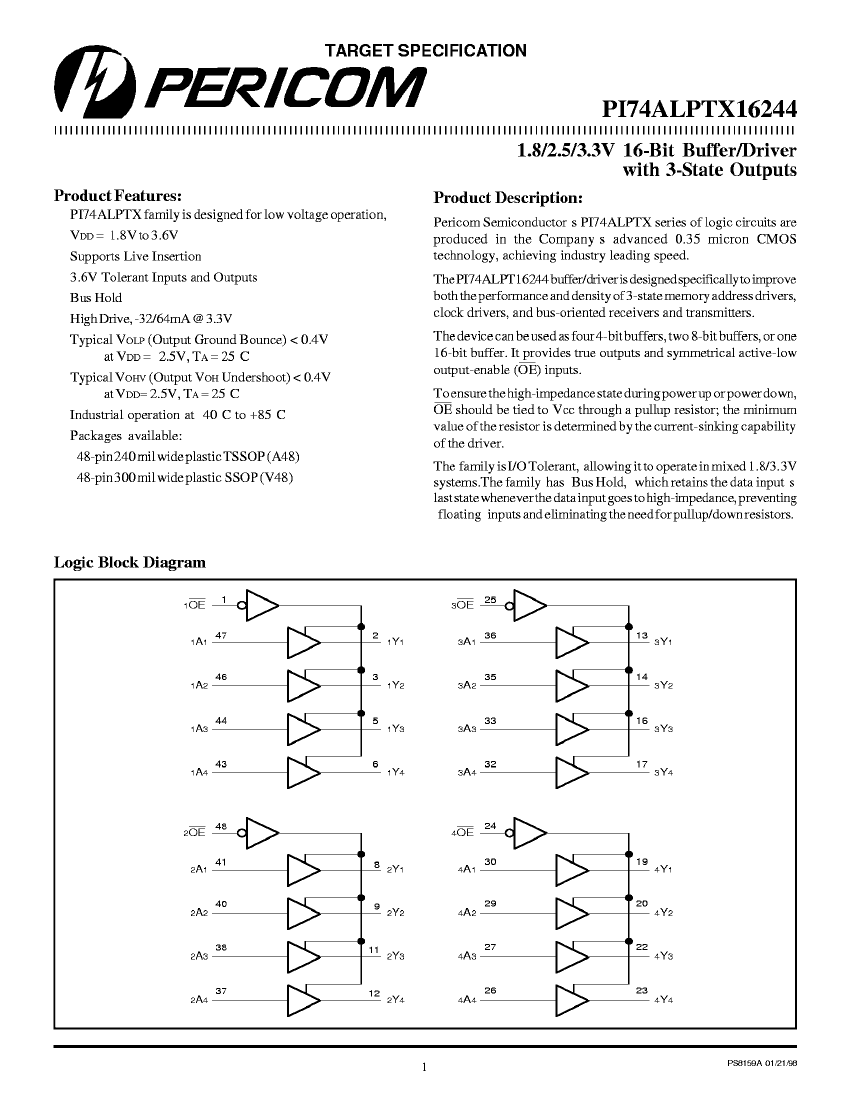

PI74ALPTX16244A Preview
