2-557101-1: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,80 CONTACTS,SKT,0.05 PITCH,R ANGLE PC TAIL TERMINAL; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-557101-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-557101-1	-	-	View	Buy Now

2-557101-1 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,80 CONTACTS,SKT,0.05 PITCH,R ANGLE PC TAIL TERMINAL

2-557101-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
body width	0.301 inch
subject depth	0.693 inch
body length	2.391 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	557101
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1

Preview

Download Datasheet

View All

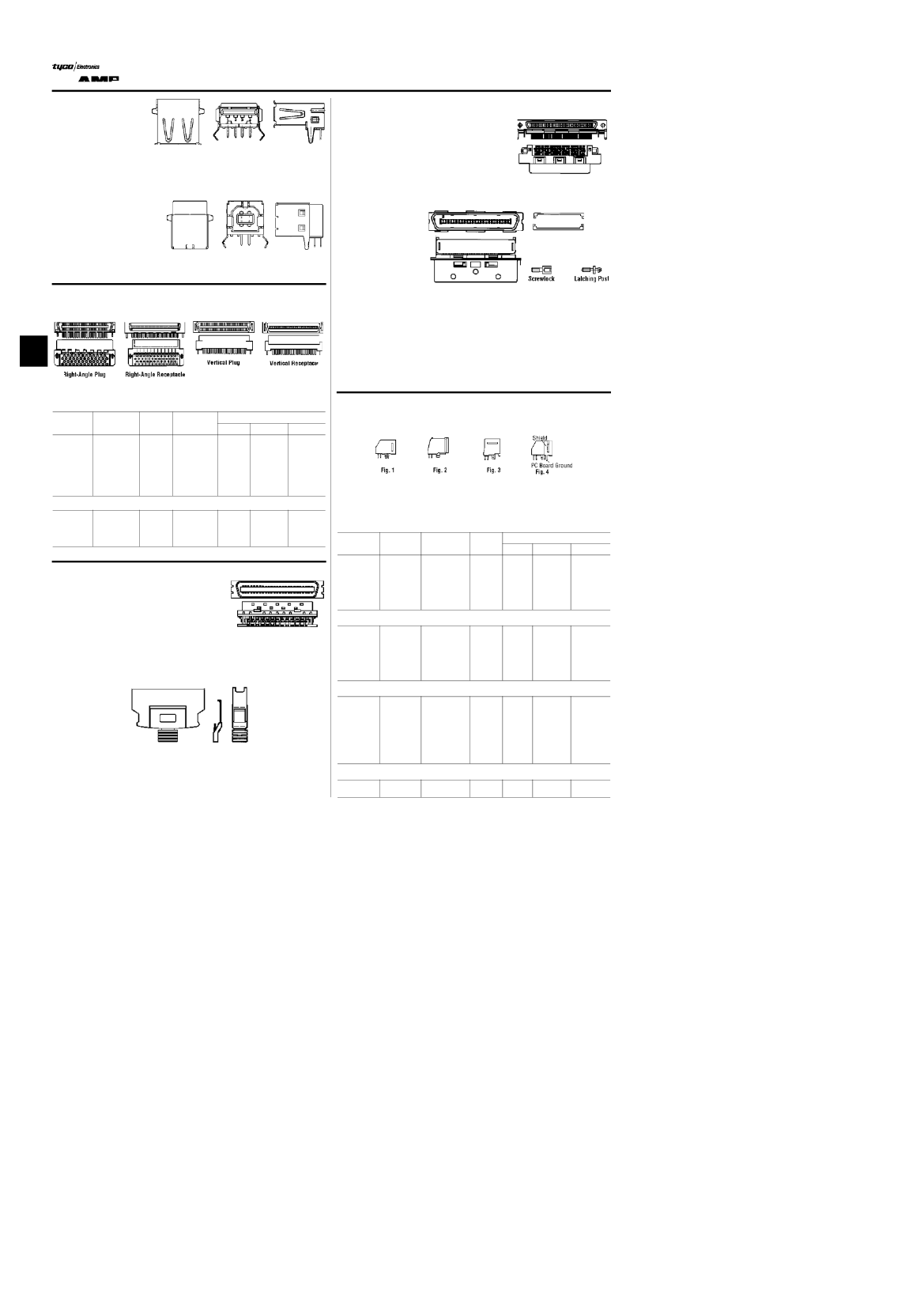

AMP/Tyco

Input/Output Connectors, Printed Circuit Board and Surface Mount Modular Jacks

Universal Serial Bus

Receptacles

Series A, 4-Position,

Right Angle Receptacle Ñ

Thru Hole

Solder Tail Length:

0.090" (2.29 mm).

512-0044.

787616-1.

1-99

........................................................................................................EACH

100-499......................................................................................................................................EACH

500-999......................................................................................................................................EACH

.65

.54

.50

CHAMP 0.8 mm Series Connectors

68-Position, Receptacle Assembly, Shielded Right-

Angle with Thru-Hole

and Hybrid Leads

Inserts:

UL 94V-O rated thermoplastic, natural, SMT compatible.

Shell:

Steel, plated 0.005" min. bright tin over 0.0025" min. copper.

Contacts:

Phosphor bronze, duplex plated 0.000076" min. gold

over 0.00076" min. palladium nickel on mating end, 0.00375" min.

bright tin-lead on solder end, all over 0.00127" nickel underplating.

512-0112.

787254-1. Thru-hole, high profile.

1-99

..................................................................EACH

8.11

100-499......................................................................................................................................EACH 7.30

500-999......................................................................................................................................EACH 6.09

Series B, 4-Position,

Right Angle Receptacle Ñ

Thru Hole

512-0052.

787780-1.

1-99

........................................................................................................EACH

100-499......................................................................................................................................EACH

500-999......................................................................................................................................EACH

.74

.67

.61

68-Position, Plug Kit,

Unassembled,

Shielded Cable Connector

Housing:

LCP, UL 94V-O rated,

natural.

Termination Covers:

LCP, UL 94V-O rated, black.

Shell:

Carbon steel, plated

0.00508" min. tin-lead over

0.00127" min. copper.

Contacts:

Phosphor bronze, DURAGOLD

plated 0.000076" min. gold on mating end, 0.00127" min. tin-lead on solder end, all over 0.00127" nickel

underplating 30 AWG solid or stranded wire.

512-0113.

787131-3.

1-99

........................................................................................................EACH

9.61

100-499......................................................................................................................................EACH 8.65

500-999......................................................................................................................................EACH 7.21

512-2447.

787004-3. Screwlock.

1-99

.....................................................................................EACH

100-499......................................................................................................................................EACH

500-999......................................................................................................................................EACH

.99

.89

.74

CHAMP 0.050" Series I Connectors

Board-to-Board Applications

Housing and Tin Plate:

LCP, 94V-O rated, black.

Contacts:

Phosphor bronze, plated 0.00003" min. gold

in contact area, tin-lead in solder tail area.

Boardlocks:

Brass, plated tin-lead.

Right-Angle

Stock

No.

512-2413

512-2399

512-2419

512-2421

512-0131

512-0133

512-2411

512-2412

512-2427

Mfr.Õs

Type

557101-5

557100-9

557101-9

1-557101-7

2-557100-1

2-557101-1

2-557100-9

4-557100-9

4-557101-9

No. of

Pos.

80*

120

140

Description

Receptacle

Plug

Receptacle

Plug

Receptacle

Plug

Receptacle

EACH

1-99

3.10

10.04

5.76

10.31

6.14

6.60

18.16

21.17

10.72

100-499

2.82

9.04

5.18

9.28

5.53

5.94

16.34

19.05

9.65

500-999

2.58

7.53

4.32

7.74

4.61

4.95

13.62

15.88

8.04

512-2449.

787003-3. Latching post, boardmount.

1-99

..........................................................EACH

1.54

100-499......................................................................................................................................EACH 1.39

500-999......................................................................................................................................EACH 1.16

Printed Circuit Board and Surface Mount Modular Jacks

Vertical with End Blocks and Keying Posts

512-2429

512-2435

512-0141

512-2433

512-2423

*VAFC standard.

557102-5

557103-9

2-557103-5

3-557102-7

3-557103-7

100

160

Plug

Receptacle

Plug

Receptacle

4.49

9.86

8.27

22.01

4.04

8.87

7.45

19.81

3.37

7.40

6.21

16.51

Housing:

Polyester, UL 94 V-0 rated, black (except for offset latch).

Contact:

.014 thick phosphor bronze.

Plated:

.000050 gold in contact area and .000150 tin-lead on solder tails. Meet or exceed FCC part 68 rules and regulations;

REA PE-76 and UL1863, Communications Circuit accessories. UL listed, CSA Certified.

Low Profile (.495 Height), Thru-Hole, Side Entry Ñ Fig. 1

Stock

No.

512-5750

512-5735

512-5752

512-8599

512-5754

512-5756

512-5758

512-5760

Mfr.Õs

Type

555163-1

555163-2

555165-1

555165-2

555162-1

555164-1

555166-1

555167-1

No. of

Cont.

6 (4-Loaded)

8-Keyed

Panel

Stops

Yes

EACH

1-99

.64

.51

.50

.68

.56

100-499

.58

.57

.46

.45

.61

.50

500-999

.48

.39

.38

.51

.42

CHAMP 0.050 Series II Connectors

Wire-to-Board Application Cable Plug Connectors

36-Position

Housing and Covers:

Glass-filled PBT, 94V-O rated, black.

Contacts:

Phosphor bronze, plated 0.00003" min. gold in contact

area, tin-lead in solder tail area.

512-0143.

2-175677-5.

1-99.....................................................................................................EACH 7.41

100-499......................................................................................................................................EACH 6.73

500-999......................................................................................................................................EACH 6.17

Standard Height, Side Entry without Flange Ñ Fig. 2

512-5768

512-8707

512-5770

512-5796

512-5797

512-5772

512-5774

512-5776

520249-2

520250-2

520250-3

555980-1

555979-1

520470-3

520251-4

520426-4

4-Handset

6 (4-Loaded)

Yes

.57

.47

.49

.60

.47

.65

.50

.68

.51

.42

.44

.54

.42

.58

.45

.62

.43

.35

.36

.45

.35

.49

.38

.51

Wire-to-Board Application Plug Enclosure Kit 36-Position

Top Entry with Center Latch Ñ Fig. 3

512-5780

512-5799

512-5782

512-5786

512-5790

512-5801

512-5784

512-5788

512-5802

512-5803

520257-2

520258-2

520258-3

520259-4

520260-4

520425-2

520425-3

556416-1

555799-1

557969-1

4-Handset

6 (4-Loaded)

8-Keyed

6 (4-Loaded)

8-Keyed

8-Shielded

Yes

.44

.47

.49

.50

.64

.49

.50

.87

.98

.40

.42

.44

.45

.58

.44

.45

.79

.88

.33

.35

.36

.38

.48

.36

.38

.66

.73

Enclosure:

PBT, 94V-O rated, beige white.

Shield:

Steel, plated nickel over copper.

Locking Spring:

Stainless steel, overmolded with PBT, 94V-O rated, beige white.

512-0144.

176793-5.

1-99

........................................................................................................EACH

5.21

100-499......................................................................................................................................EACH 4.69

500-999......................................................................................................................................EACH 3.91

Low Profile, Side Entry, Shielded with PCB Ground Ñ Fig. 4

512-5755

512-5763

555154-1

555153-1

Yes

.75

.81

.68

.72

.56

.60

388

ALLIED
