PI74ALVCH16344AEX: DescriptionBus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56; Categorylogic logic; File Size124KB，4 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI74ALVCH16344AEX Overview

Bus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56

PI74ALVCH16344AEX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	compliant
ECCN code	EAR99
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G56
JESD-609 code	e3
length	14 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	2
Number of functions	4
Number of ports	5
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm

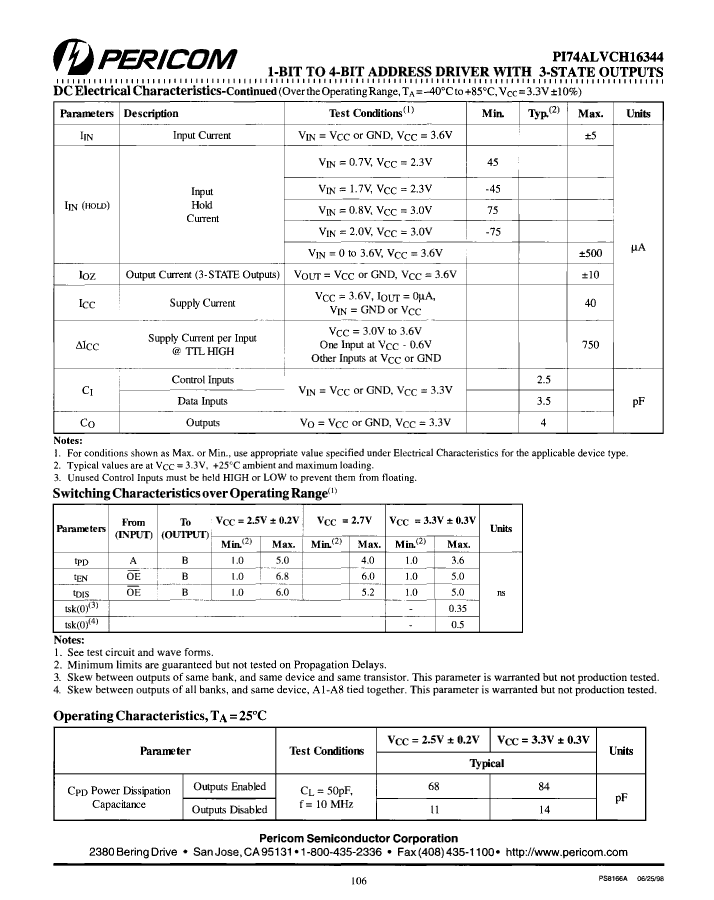

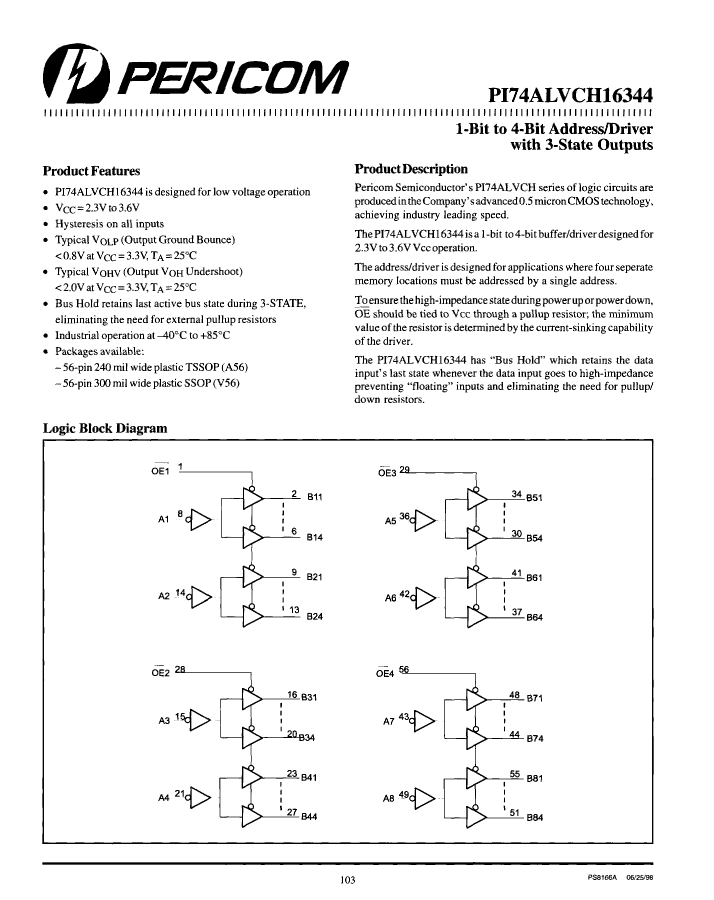

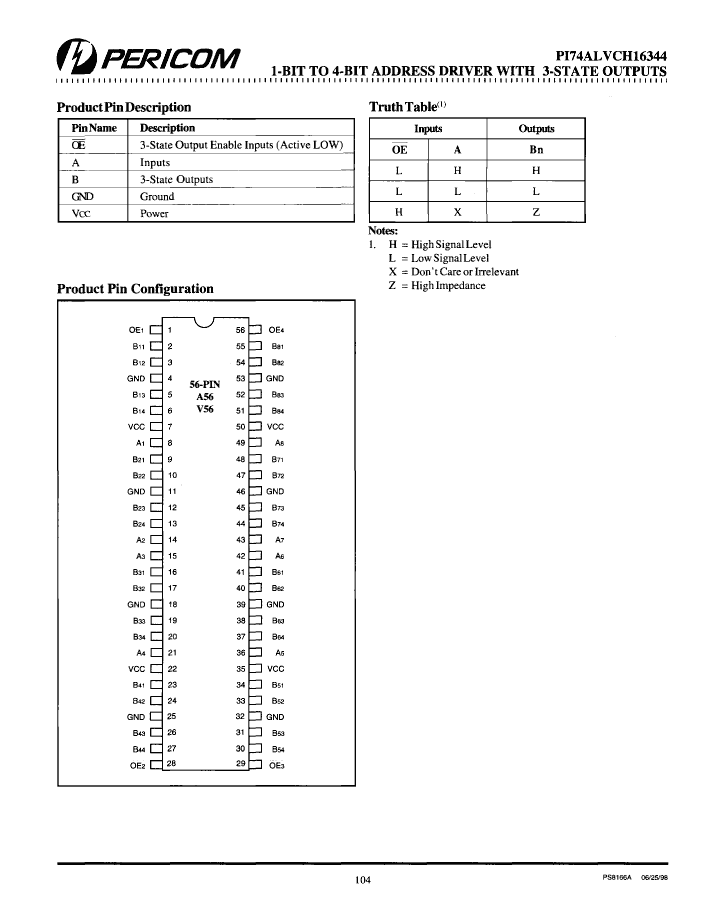

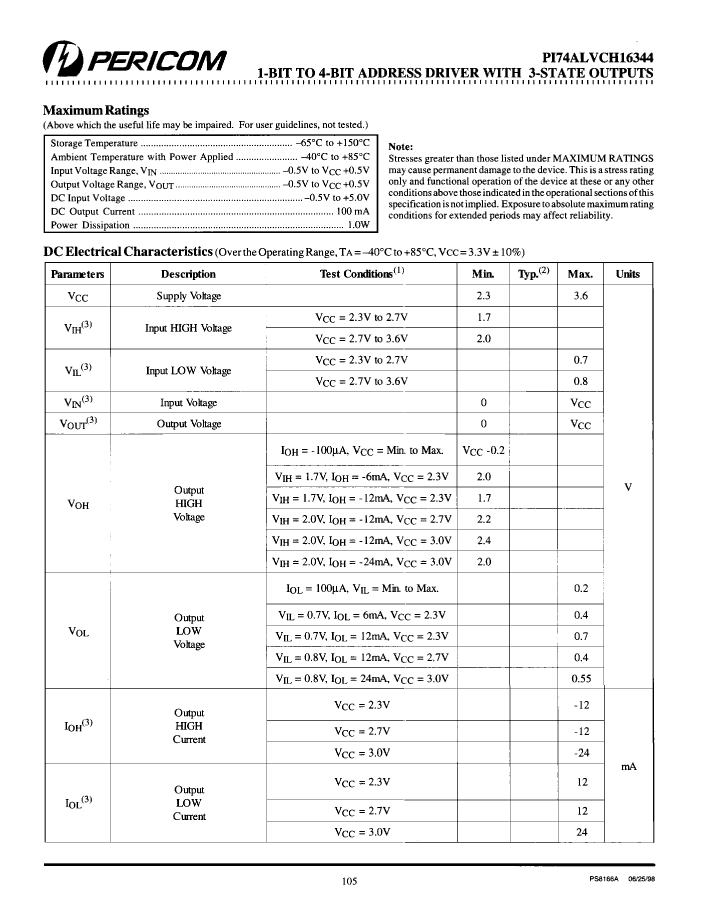

PI74ALVCH16344AEX Preview
