PI74ALVCT16260VE datasheet, PDF

Datasheet> All Categories > logic> logic> PI74ALVCT16260VE

PI74ALVCT16260VE: DescriptionMultiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56; Categorylogic logic; File Size148KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI74ALVCT16260VE Overview

Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56

PI74ALVCT16260VE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	56
Reach Compliance Code	unknown
ECCN code	EAR99
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G56
JESD-609 code	e3
length	18.415 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Number of functions	12
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm

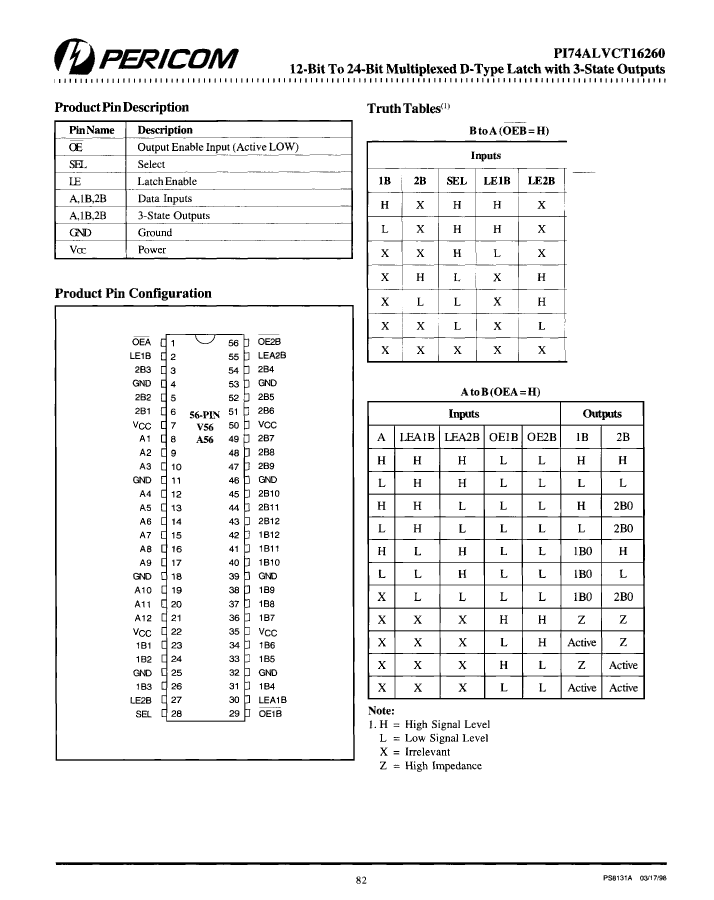

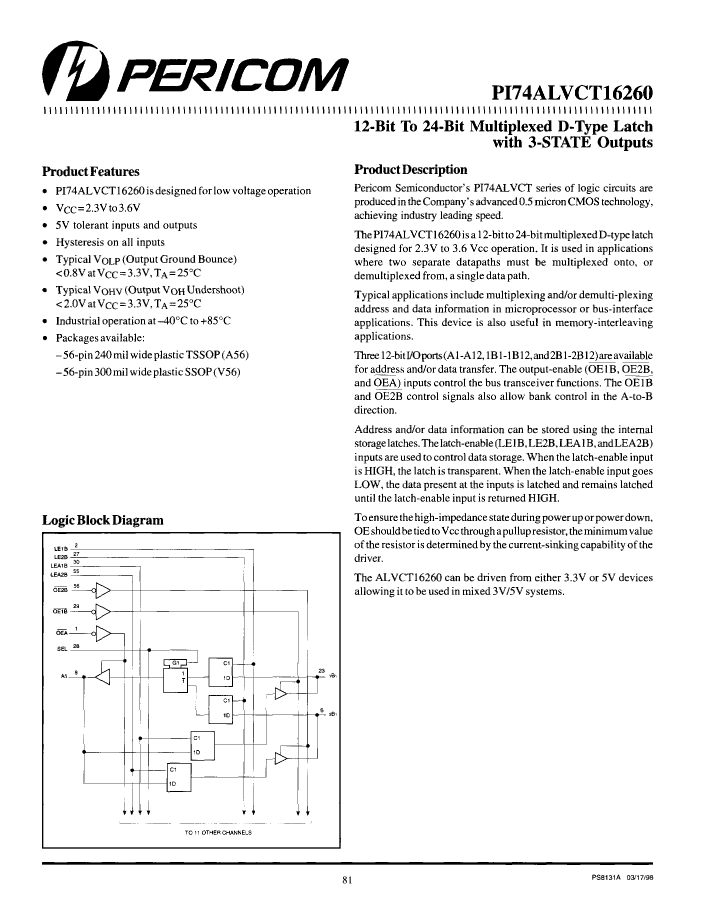

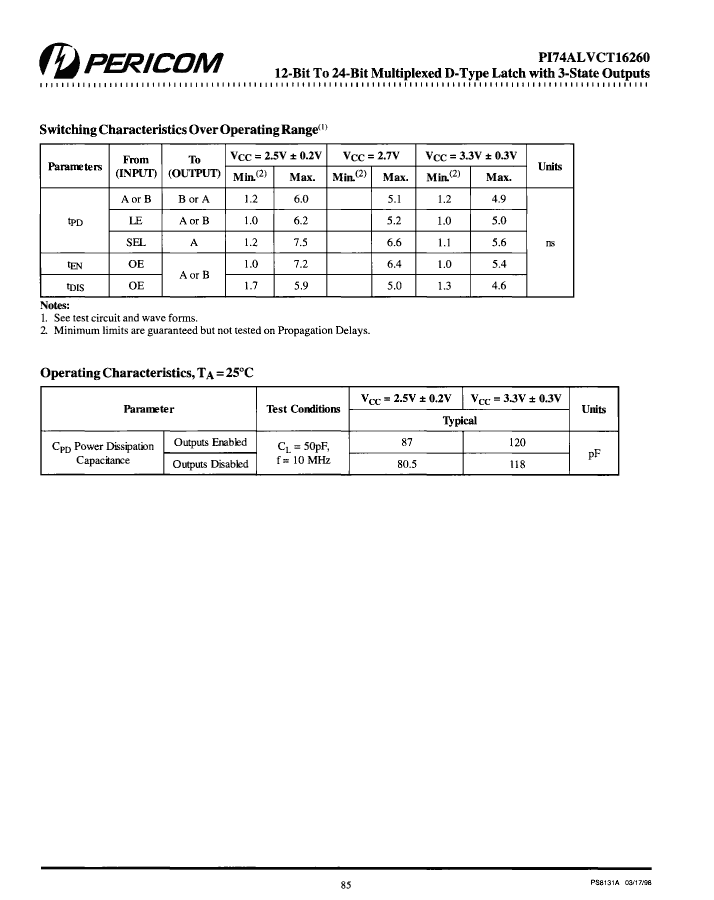

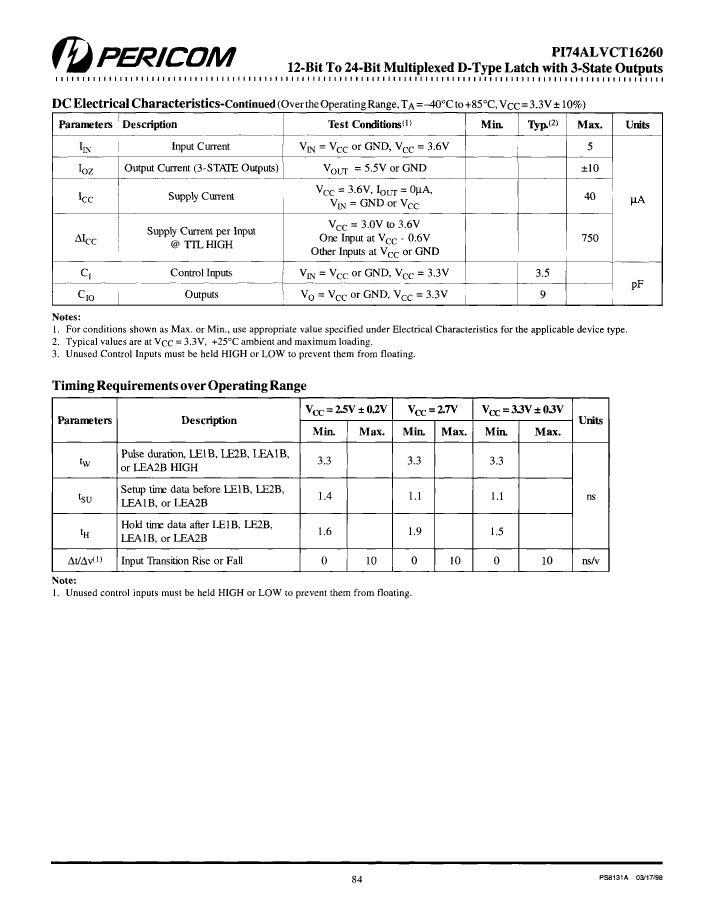

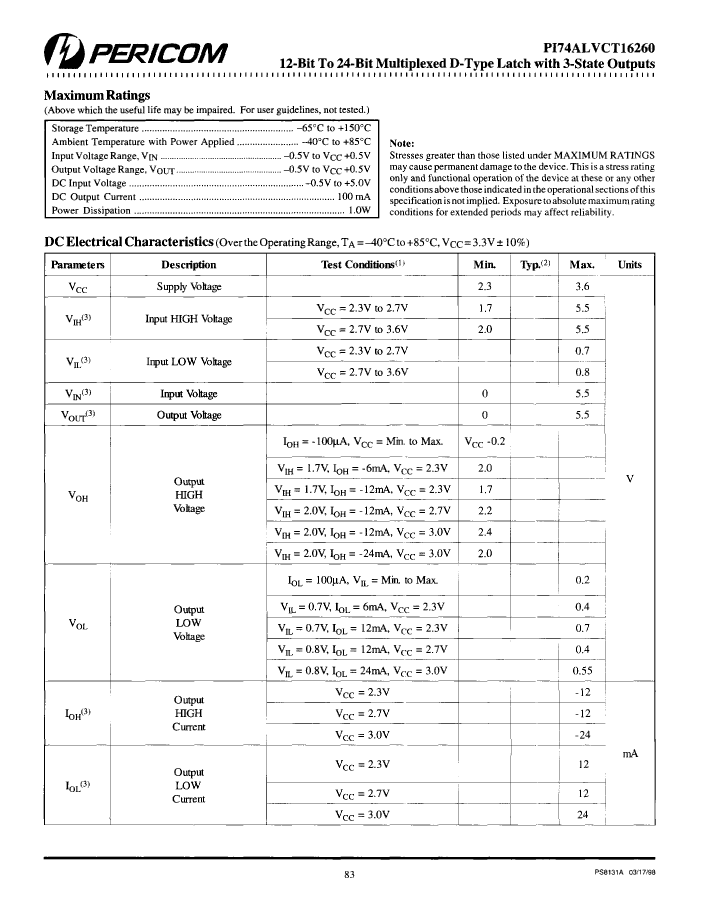

Preview

Download Datasheet

View All

PI74ALVCT16260VE Related Products

	PI74ALVCT16260VE	PI74ALVCT16260AX	PI74ALVCT16260VX	PI74ALVCT16260AE	PI74ALVCT16260AEX	PI74ALVCT16260VEX
Description	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP	TSSOP	SSOP	TSSOP	TSSOP	SSOP
package instruction	SSOP,	TSSOP,	SSOP,	TSSOP,	TSSOP,	SSOP,
Contacts	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e3	e0	e0	e3	e3	e3
length	18.415 mm	14 mm	18.415 mm	14 mm	14 mm	18.415 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER
Number of functions	12	12	12	12	12	12
Number of terminals	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	SSOP	TSSOP	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	1.2 mm	2.794 mm	1.2 mm	1.2 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.635 mm	0.5 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	6.1 mm	7.5 mm	6.1 mm	6.1 mm	7.5 mm
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free
