USH5010-AIK28 datasheet, PDF - EEWORLD Datasheet

USH5010-AIK28: DescriptionSPST, 1 Func, 8 Channel, CMOS, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC The signal circuit; File Size406KB，8 Pages; ManufacturerUniversal Semiconductor Inc

Download Datasheet Parametric Compare View All

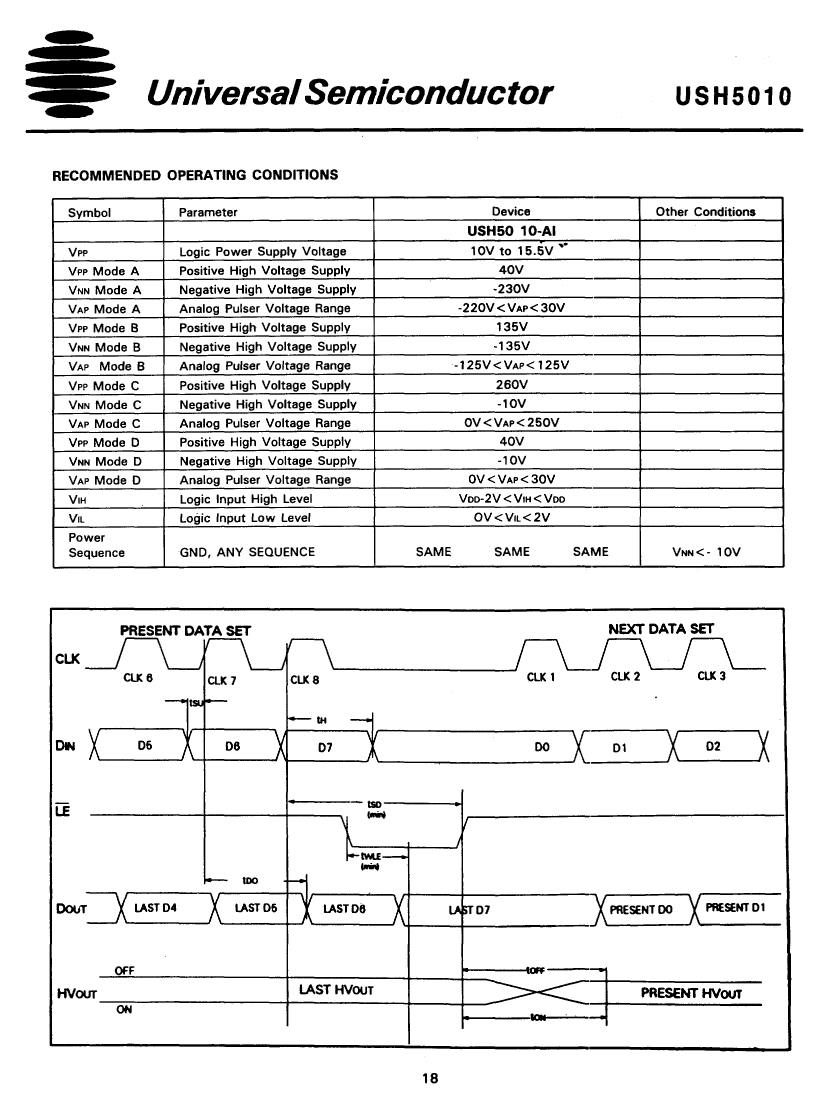

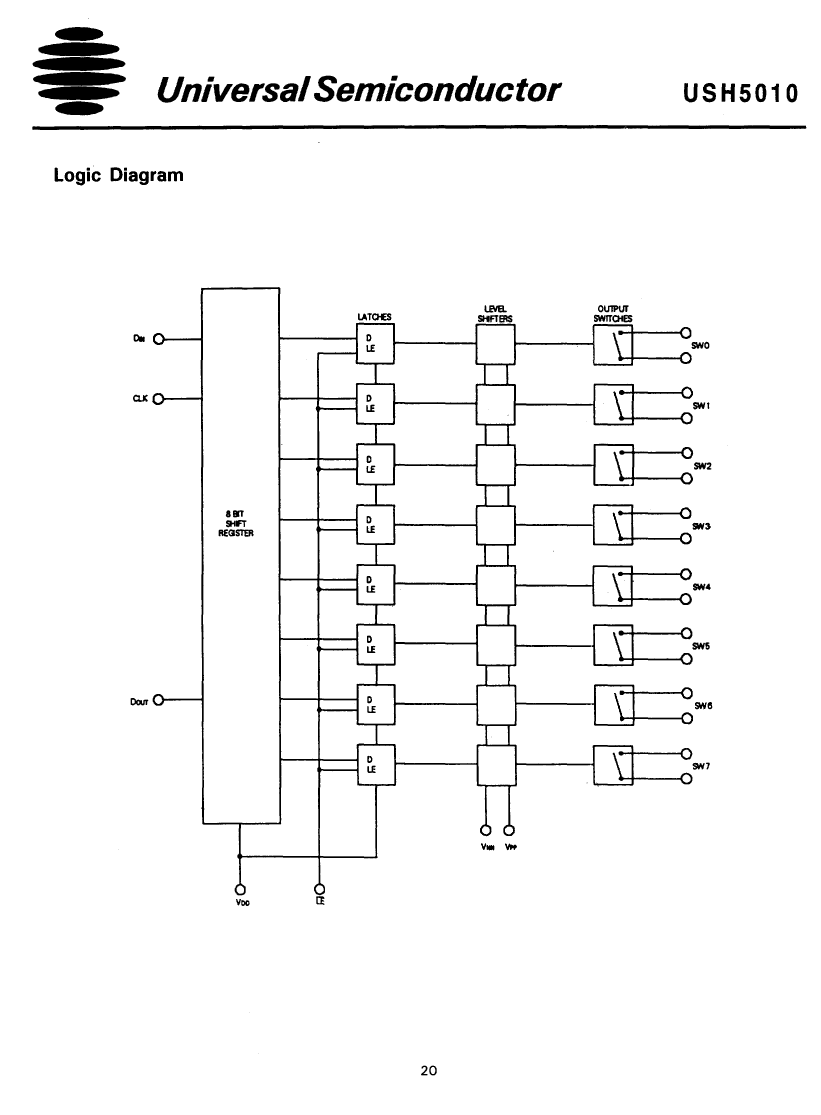

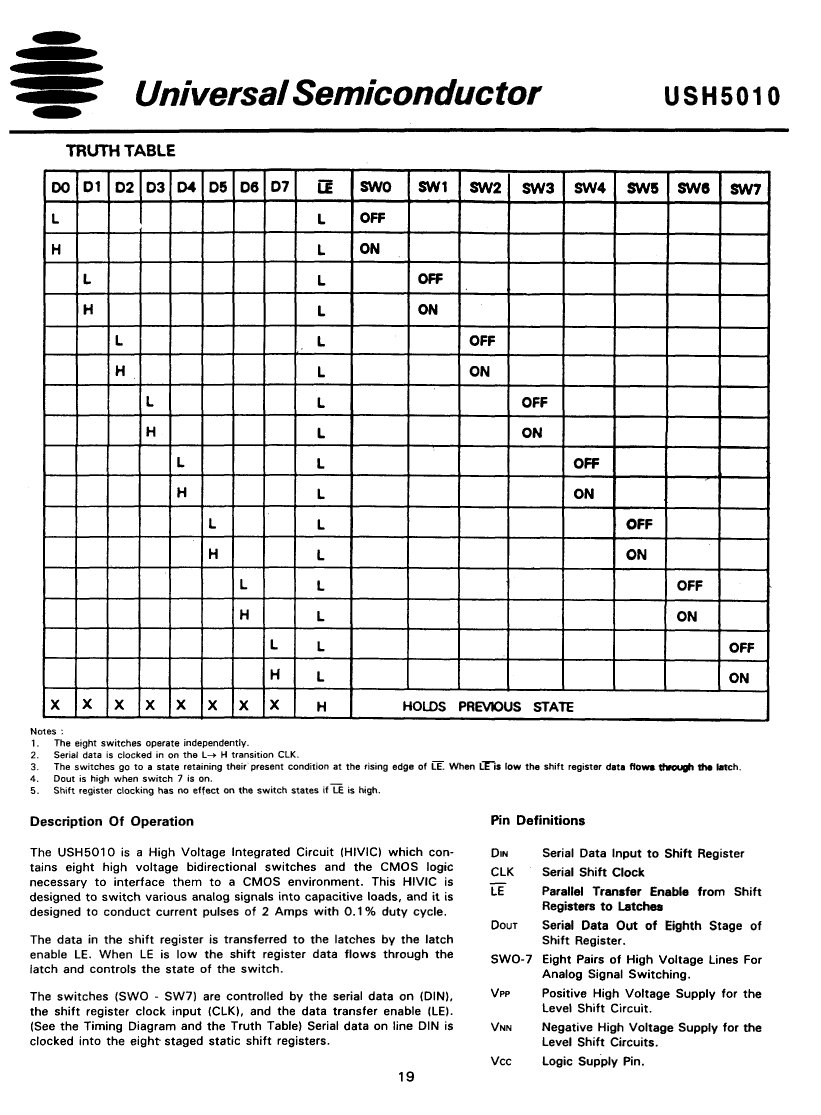

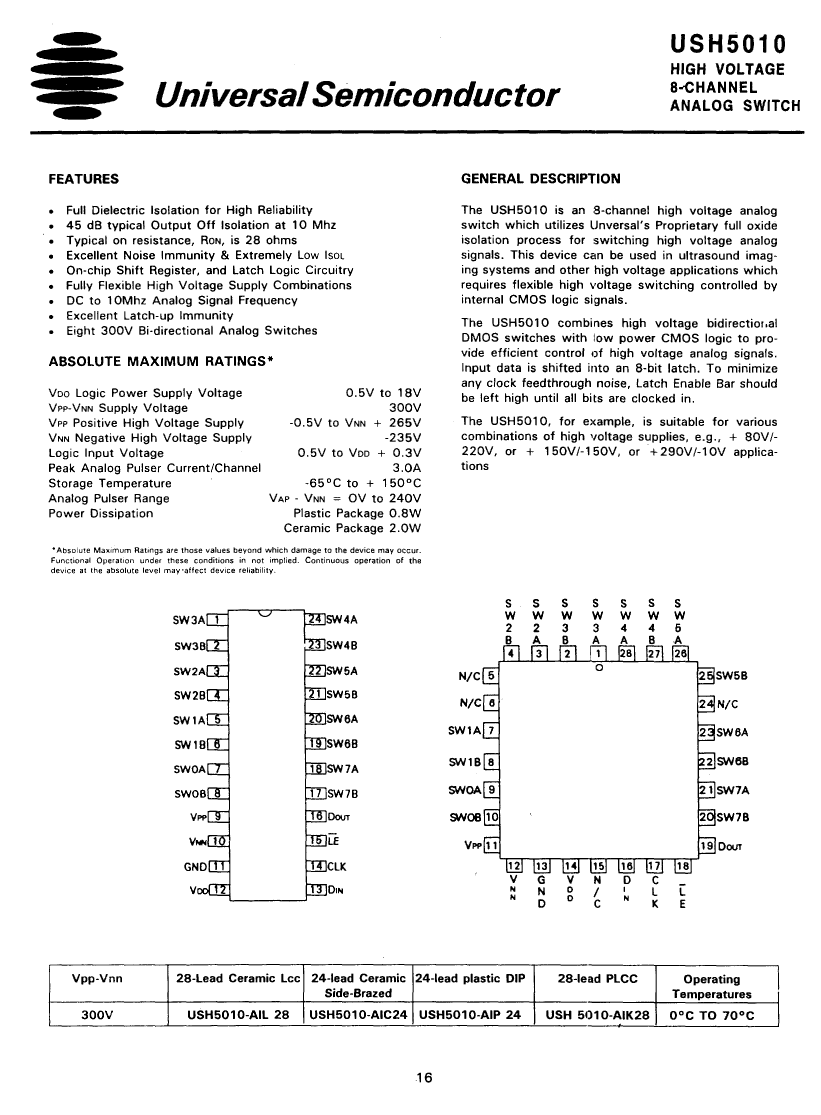

USH5010-AIK28 Overview

SPST, 1 Func, 8 Channel, CMOS, PQCC28, PLASTIC, LCC-28

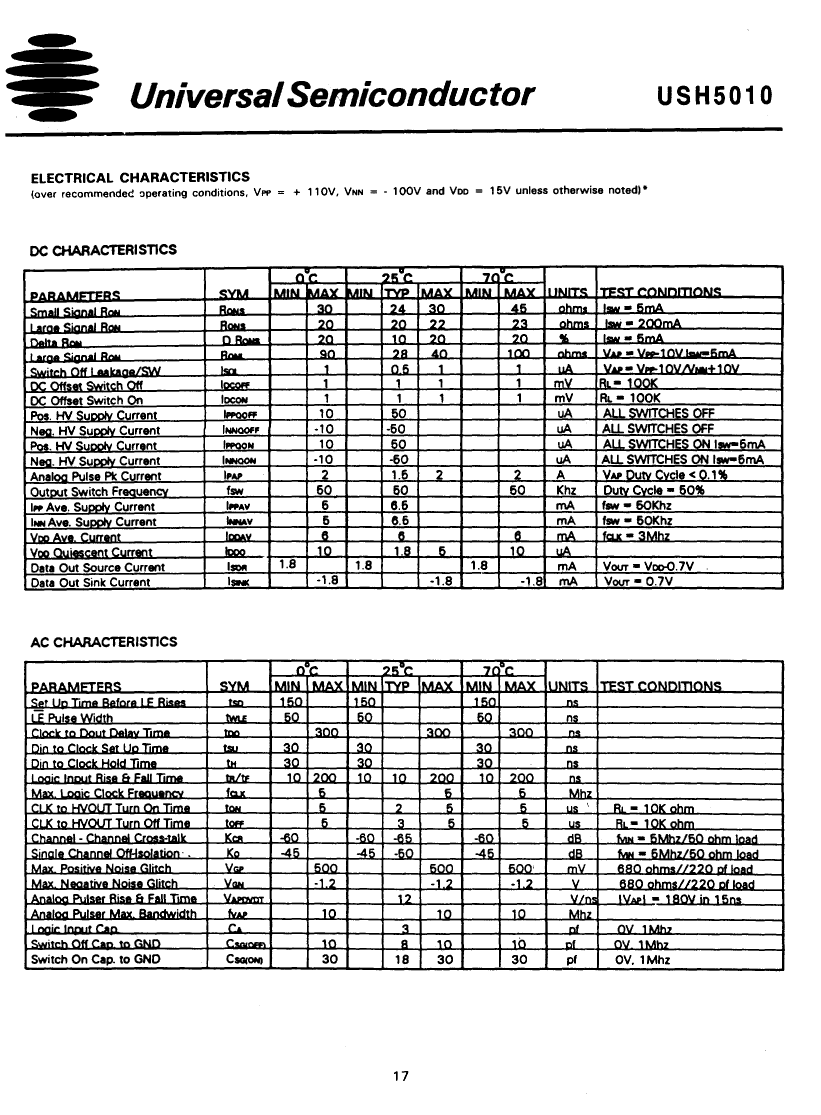

Parameter Name	Attribute value
Maker	Universal Semiconductor Inc
Parts packaging code	QLCC
package instruction	,
Contacts	28
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-PQCC-J28
Number of channels	8
Number of functions	1
Number of terminals	28
Nominal off-state isolation	45 dB
On-state resistance matching specifications	9 Ω
Maximum on-state resistance (Ron)	45 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	5000 ns
Maximum connection time	5000 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD

	USH5010-AIK28	USH5010-AIP24	USH5010-AIL28	USH5010-AIC24
Description	SPST, 1 Func, 8 Channel, CMOS, PQCC28, PLASTIC, LCC-28	SPST, 1 Func, 8 Channel, CMOS, PDIP24, PLASTIC, DIP-24	SPST, 1 Func, 8 Channel, CMOS, CQCC28, CERAMIC, LCC-28	SPST, 1 Func, 8 Channel, CMOS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24
Parts packaging code	QLCC	DIP	QLCC	DIP
Contacts	28	24	28	24
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	S-PQCC-J28	R-PDIP-T24	S-CQCC-N28	R-CDIP-T24
Number of channels	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	24	28	24
Nominal off-state isolation	45 dB	45 dB	45 dB	45 dB
On-state resistance matching specifications	9 Ω	9 Ω	9 Ω	9 Ω
Maximum on-state resistance (Ron)	45 Ω	45 Ω	45 Ω	45 Ω
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	NO
Maximum disconnect time	5000 ns	5000 ns	5000 ns	5000 ns
Maximum connection time	5000 ns	5000 ns	5000 ns	5000 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL	QUAD	DUAL
