Leaded ceramic multilayer capacitors
FEATURES
•
Very high capacitance per unit
volume
•
Low cost.
APPLICATIONS
These conformally coated radial
leaded capacitors are designed for
commercial and industrial
applications in four dielectrics,
NP0 (ultra-stable), X7R (stable) and
Z5U, Y5V (general purpose).
Applications include timing,
coupling/decoupling, signal
comparison and biasing. Mono-kap™
capacitors are suitable for automatic
insertion equipment.
DESCRIPTION
The basic capacitor construction
consists of ceramic dielectric
materials processed into a tape with a
typical thickness range from
0.025 to 0.076 mm. Metal electrode
patterns are applied using a thick film
screening process. Multiple layers
are stacked and laminated in such a
manner that electrodes are
alternately exposed when the pattern
is cut into individual chip capacitors.
The capacitors are fired through a
high temperature profile to mature the
ceramic and metal into a
homogeneous unit.
QUICK REFERENCE DATA
VALUE
DESCRIPTION
Capacitance range
Rated DC voltage
Tolerance on capacitance
Temperature coefficient
2252
305 .....
50 V
±5%
NP0 (C0G)
2252
306 .....
100 V
2252
325 .....
50 V
X7R
2252
326 .....
100 V
±10%
2252
345 .....
50 V
handbook, 4 columns
Mono-kap
TM
series
MGA336
Fig.1 Component outlines.
Metal end terminations are applied
and fired to provide electrical
connection between the individual
layers. Tinned leads are attached
using a solder.
Encapsulation consists of a
moisture-resistant gold colour
conformal epoxy coating that meets
the flame requirements of
“UL94V-0”.
2252
346 .....
100 V
2252
362 .....
25 V
2252
365 .....
50 V
10 pF to 0.022
µF
100 pF to 1.0
µF
1000 pF to 2.2
µF
±20%;
+80%/−20%
Z5U
0.01 to 1.0
µF
+80%/−20%
Y5V
1999 Apr 15
2
BC Components
Product specification
Leaded ceramic multilayer capacitors

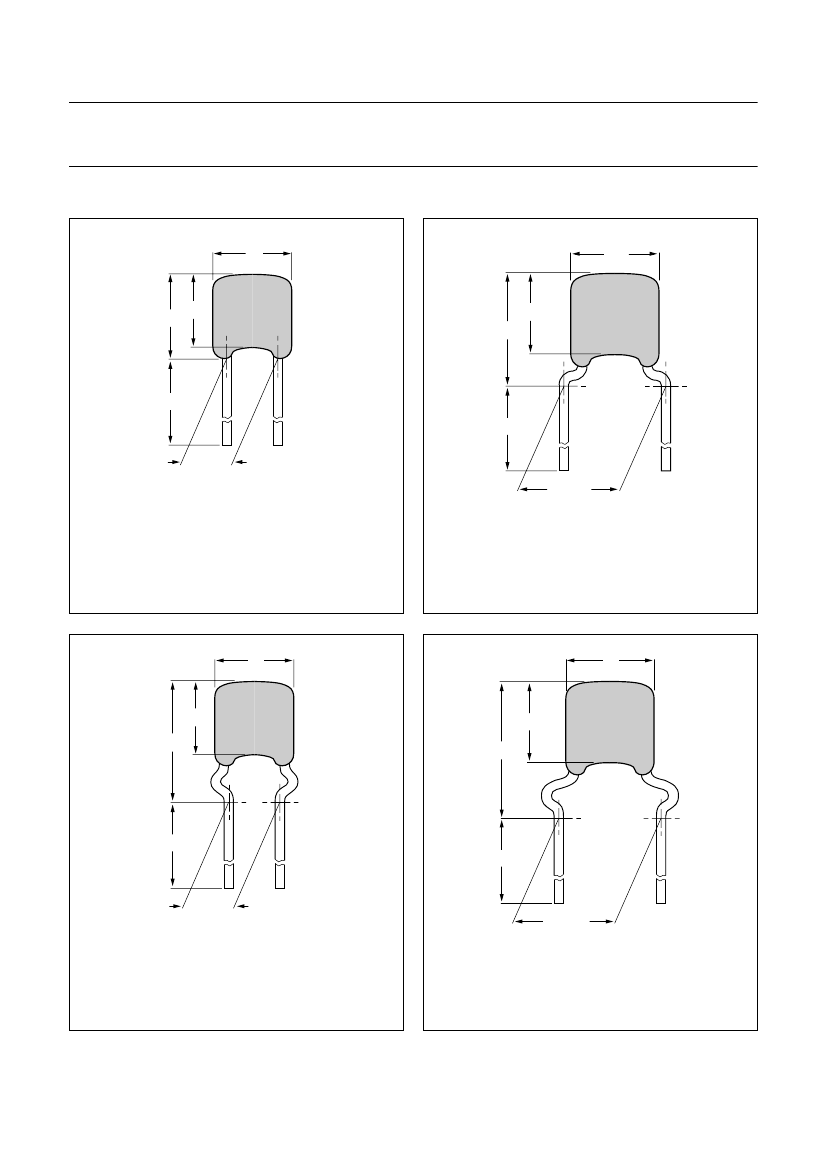

MECHANICAL DATA
Mono-kap
TM
series
W
W
SH
H
SH
H
L
L
2.5
±0.8
CCA965
5.0
±0.8
CCA966
Dimensions in mm.
Dimensions in mm.
Fig.2
Component outline for lead spacing
2.5
±0.8
mm (straight wires).
Fig.3
Component outline for lead spacing
5.0
±0.8
mm (flat bent wires).
W
handbook, halfpage
handbook, halfpage
W
H
SH
SH
H
L
L
2.5
±0.8
CCA967
5.0
±0.8
Dimensions in mm.
Lead style available on request.
CCA968
Dimensions in mm.
Fig.4
Component outline for lead spacing
2.5
±0.8
mm (outside kink wires).
Fig.5
Component outline for lead spacing
5.0
±0.8
mm (outside kink wires).
1999 Apr 15
3
BC Components
Product specification
Leaded ceramic multilayer capacitors
Physical dimensions
Table 1
SIZE
CODE
15
20
30
Notes
1. Bulk packed products have a standard lead length L
≥
25.4 mm.
2. Dimensions between the parentheses are in inches.
3. Thickness defined as T.
Marking
(1)(2)
(see Fig.6)
Capacitance code (CCC):
10 pF to 99 pF;
actual value in pF (2 digits only)
100 pF and above;
coded capacitance value
(same as used in P/N).
Capacitance tolerance (T):
Standard EIA tolerance.
Material code (M):
A = NP0 (C0G)
C = X7R
E = Z5U
Y = Y5V.
Voltage code (V):
1 = 100 V
3 = 25 V
5 = 50 V.
(1) 100 pF and above in size code 15 are
marked without capacitance tolerance
code (T).
(2) Only size code 30 and above are
marked with the material code (M)
and voltage code (V).
handbook, 4 columns
Mono-kap
TM
series
Capacitor dimensions and mass; notes 1 and 2
W
max
(mm)
4.0
(0.15)
5.0
(0.20)
7.5
(0.30)
H
max
(mm)
4.0
(0.15)
5.0
(0.20)
7.5
(0.30)
T
max
(3)
(mm)
Fig.2
2.5
(0.100)
3.2
(0.13)
3.8
(0.15)
5.58
(0.220)
6.58
(0.259)
9.08
(0.357)
MAX. SEATING HEIGHT (SH)
(mm)
Fig.3
6.50
(0.256)
7.50
(0.295)
10.70
(0.421)
Fig.4
7.50
(0.295)
8.50
(0.335)
11.00
(0.433)
Fig.5
7.50
(0.295)
8.50
(0.335)
11.0
(0.433)
≈0.15
≈0.16
≈0.42
MASS
(g)
CCCT
M V
MGA337
Fig.6 Markings on the body.
PACKAGING
For details refer to data handbook PA06b, section
“Leaded ceramic multilayer
capacitors”,
chapter
“Packaging”.
1999 Apr 15
4
