SF1006G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SF1006G

SF1006G: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size321KB，3 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

SF1006G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF1006G	-	-	View	Buy Now

SF1006G Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3

SF1006G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	TO-220AB
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNITION
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

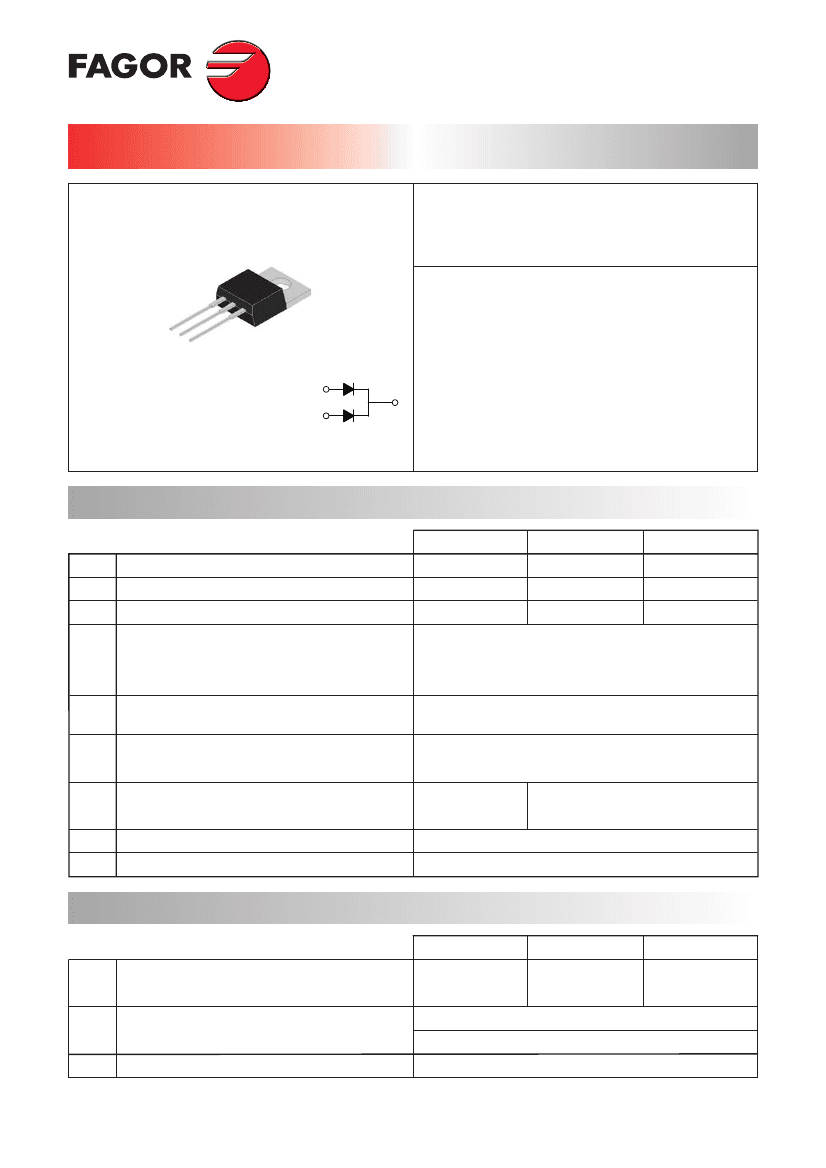

SF1006G Preview

SF10G

10 Amp. Glass Passivated Ultrafast Recovery Rectifier

TO-220AB

Voltage

200 to 600 V

• Glass Passivated Junction

• High current capability

Current

10 A

• The plastic material

U/L recognition 94 V-0

Case

• Terminals: Leads solderable per

MIL-STD202

• Low forward Voltage drop

Common Cathode

Suffix "C"

Absolute Maximum Ratings, according to IEC publication No. 134

SF1004G

200

140

200

RRM

RMS

F (AV)

Peak recurrent reverse voltage (V)

Maximum RMS voltage (V)

Maximum DC blocking voltage (V)

Maximum Average Forward current

at T

= 100 °C

(both diodes conducting)

8.3 ms. peak forward surge current

(Jedec Method)

SF1006G

400

280

400

10 A

SF1008G

600

420

600

FSM

stg

125 A

35 ns

70 pF

50 pF

– 65 to + 150 °C

Max. reverse recovery time from

= 0.5 A ; I

= 1 A ; I

= 0.25 A

Typical Junction Capacitance at 1 MHz

and reverse voltaje of 4V

Operating temperature range

Storage temperature range

Electrical Characteristics

SF1004G

thj-C

Max. forward voltage drop

at I

= 5 A

Max. Instantaneous reverse

current at V

= V

RRMax

Typical Thermal Resistance

= 25 °C

= 100 °C

0.975 V

SF1006G

1.3 V

10 µA

400 µA

3.5 °C/W

SF1008G

1.7 V

Jul - 07

SF10G

10 Amp. Glass Passivated Ultrafast Recovery Rectifier

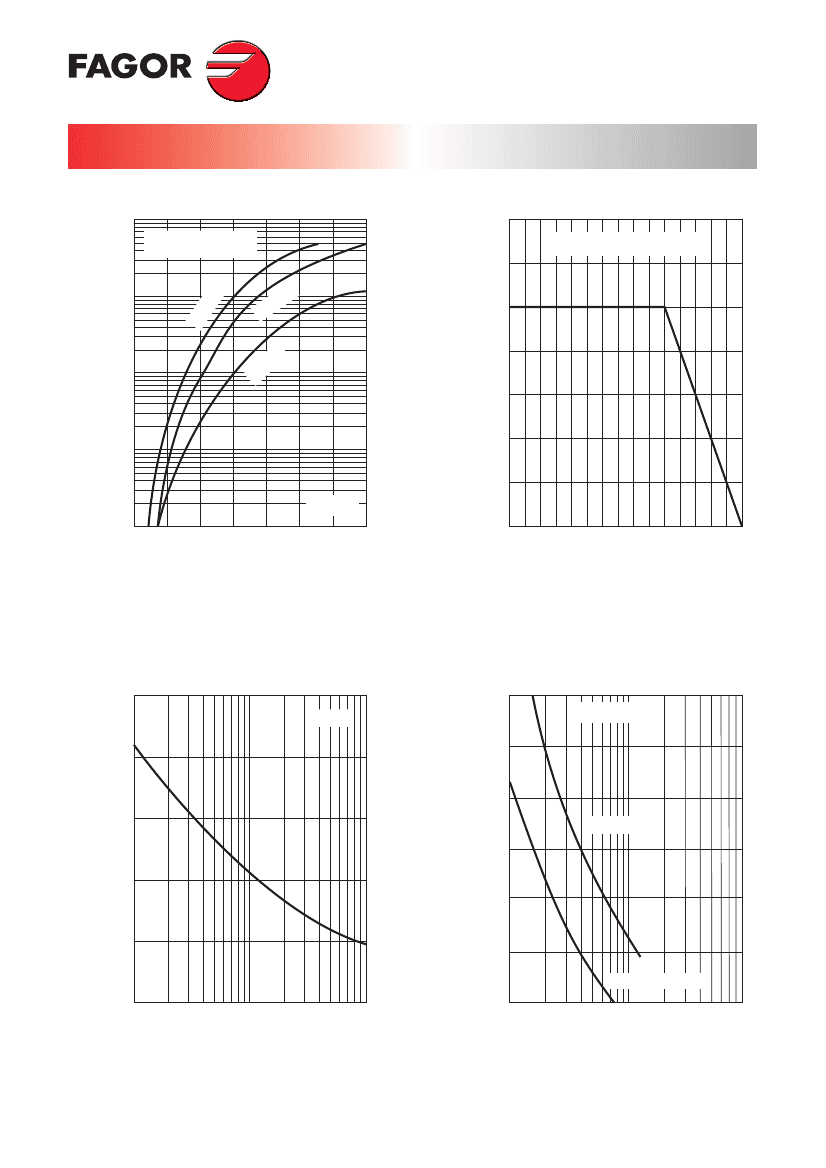

TYPICAL FORWARD CHARACTERISTIC

FORWARD CURRENT DERATING CURVE

100

instantaneous forward current (A)

F(AV)

, average forward rectified current (A)

PULSE WIDTH = 300 µs

1% DUTY CYCLE

RESISTIVE OR INDUCTIVE LOAD

0.3

0.1

0.03

= 25 °C

0.01

0.4 0.6 0.8

1.0

1.2 1.4 1.6

1.8

100

150

, instantaneous forward voltage (V)

, case temperature (°C)

MAXIMUM NON-REPETITIVE

PEAK FORWARD SURGE CURRENT

TYPICAL JUNCTION CAPACITANCE

150

= 25 °C

100

= 25 °C

FSM

, peak forward surge current (A)

, junction capacitance (pF)

120

SF1004G

SF1006G-SF1008G

100

Number of cycles at 60 Hz.

, reverse voltage (V)

Jul - 07

SF10G

10 Amp. Glass Passivated Ultrafast Recovery Rectifier

PACKAGE MECHANICAL DATA

TO-220AB

REF.

DIA

DIMENSIONS

Milimeters

Max.

Min.

4.44

1.14

2.54

0.35

0.68

2.41

13.46

14.90

2.62

3.56

5.84

3.74

4.70

1.40

2.79

0.64

10.5

0.94

2.67

14.22

15.10

2.87

4.06

6.86

3.91

Jul - 07

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SF1006G Related Products

	SF1006G	SF1008G	SF1004G
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 10A, 600V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
Parts packaging code	TO-220AB	TO-220AB	TO-220AB
package instruction	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Contacts	3	3	3
Reach Compliance Code	compliant	unknown	compliant
Other features	UL RECOGNITION	UL RECOGNITION	UL RECOGNITION
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3	e3
Maximum non-repetitive peak forward current	125 A	125 A	125 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	600 V	200 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
