3SZ1KMB338MSB35080 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3SZ1KMB338MSB35080

3SZ1KMB338MSB35080: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size78KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3SZ1KMB338MSB35080 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, RADIAL LEADED

3SZ1KMB338MSB35080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.541428 mA
Manufacturer's serial number	CU
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	6400 mA
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	BINDING POST

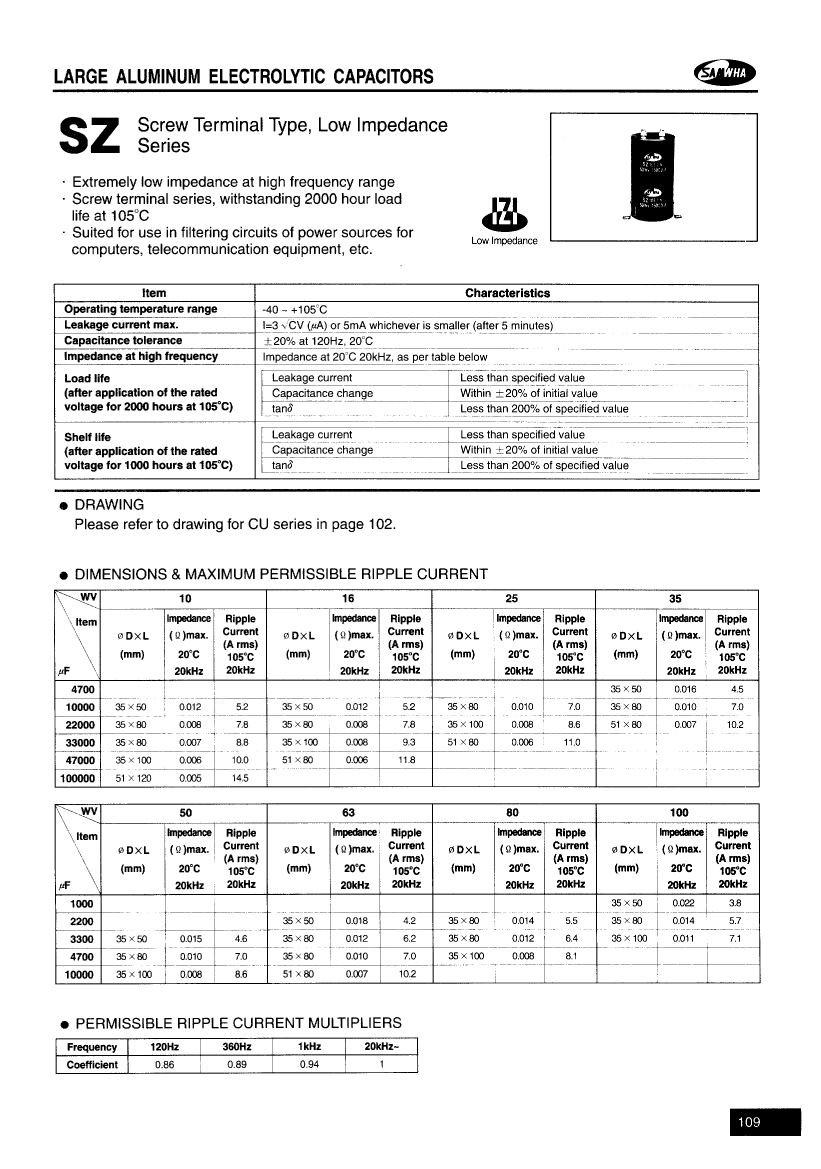

3SZ1KMB338MSB35080 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3SZ1KMB338MSB35080 Related Products

	3SZ1KMB338MSB35080	3SZ2AMB228MSB35080	3SZ1AMB229MSB35080	3SZ1AMB339MSB35080	3SZ1JMB338MSB35080	3SZ1KMB228MSB35080	3SZ1HMB109MSB35100	3SZ1JMB109MSB51080
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2200uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 22000uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 33000uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 3300uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 2200uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10000uF, Chassis Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 10000uF, Chassis Mount, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	RADIAL LEADED	RADIAL LEADED	RADIAL LEADED	RADIAL LEADED	RADIAL LEADED	RADIAL LEADED	,	,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	3300 µF	2200 µF	22000 µF	33000 µF	3300 µF	2200 µF	10000 µF	10000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	1.541428 mA	1.407125 mA	1.407125 mA	1.723369 mA	1.367882 mA	1.258571 mA	2.12132 mA	2.381176 mA
Manufacturer's serial number	CU	CU	CU	CU	CU	CU	CU	CU
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	80 V	100 V	10 V	10 V	63 V	80 V	50 V	63 V
ripple current	6400 mA	5700 mA	7800 mA	8800 mA	6200 mA	5500 mA	8600 mA	10200 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST
Maker	SAMWHA	SAMWHA	SAMWHA	SAMWHA	SAMWHA	SAMWHA	-	-
