PHD24D-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PHD24D-H

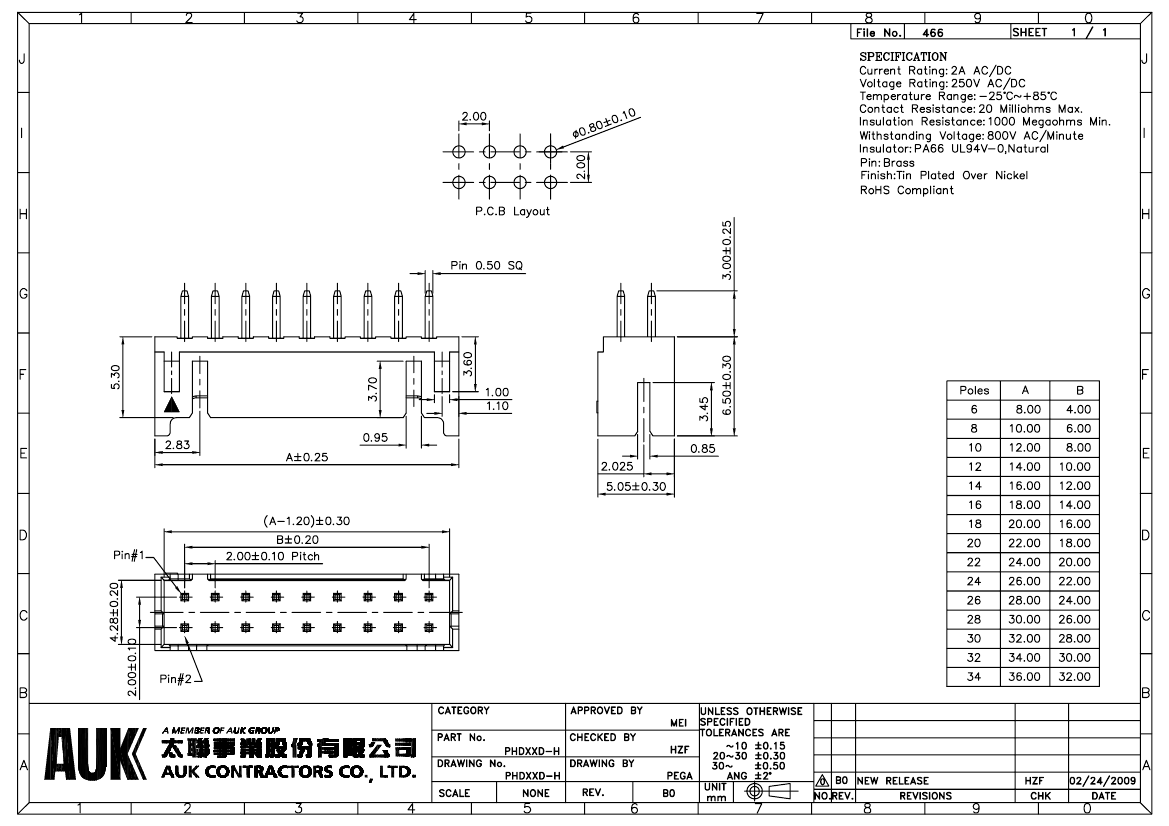

PHD24D-H: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size172KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

PHD24D-H Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle

PHD24D-H Parametric

Parameter Name	Attribute value
Maker	AUK Contractors Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.199 inch
subject depth	0.256 inch
body length	1.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	PHD
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation option 2	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

PHD24D-H Related Products

	PHD24D-H	PHD16D-H	PHD22D-H	PHD10D-H	PHD06D-H	PHD14D-H
Description	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch
body length	1.024 inch	0.709 inch	0.945 inch	0.472 inch	0.315 inch	0.63 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	PHD	PHD	PHD	PHD	PHD	PHD
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	16	22	10	6	14
