2-640432-4 datasheet, PDF - EEWORLD Datasheet

2-640432-4: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

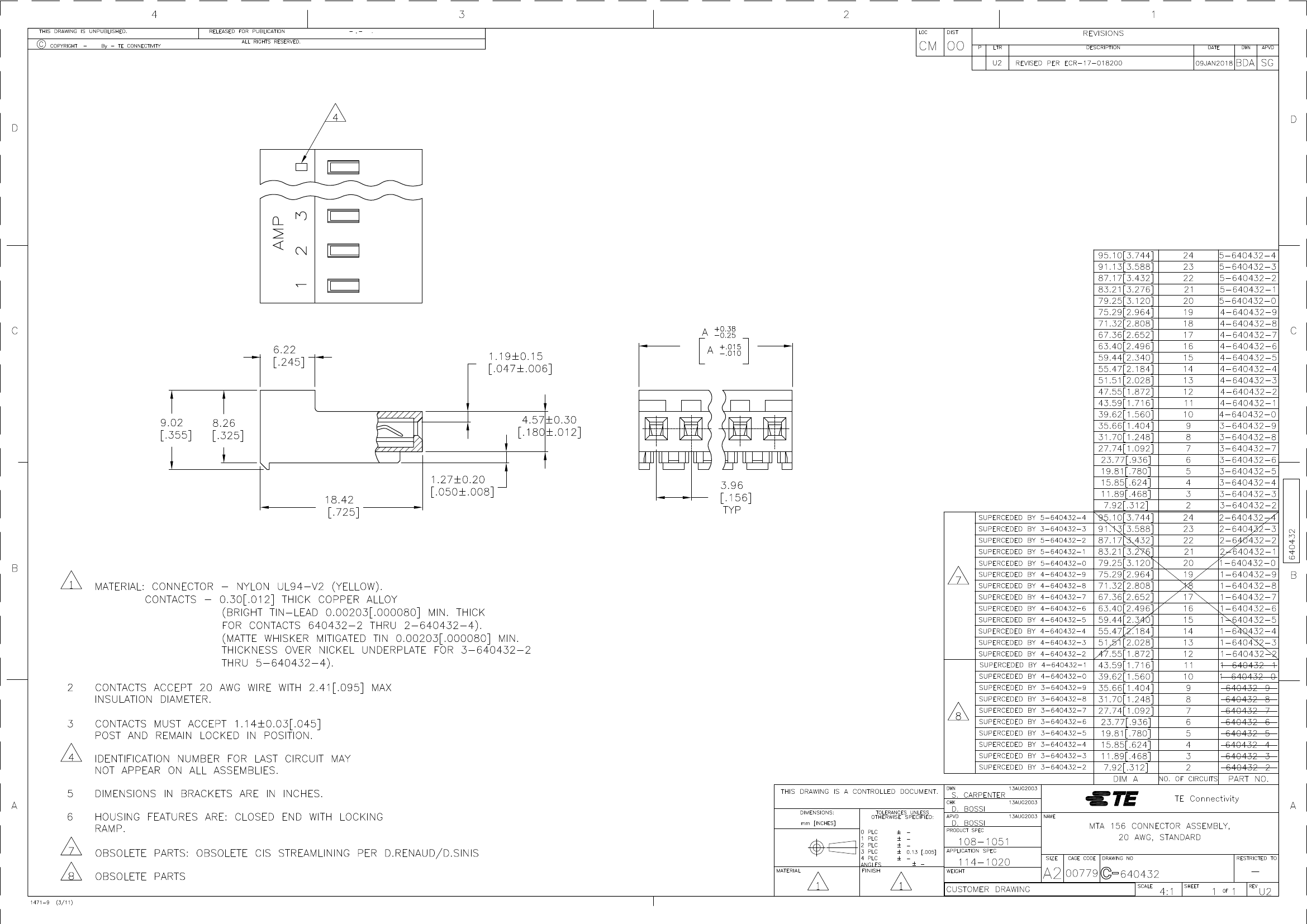

Download Datasheet Parametric Compare View All

2-640432-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-640432-4	-	-	View	Buy Now

HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	CLOSED END, TERMINATION
body width	0.725 inch
subject depth	0.355 inch
body length	3.744 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V
Insulation resistance	5000000 Ω
Insulator color	ORANGE
insulator material	NYLON
Plug contact pitch	0.156 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.48 inch
Termination type	IDC
Total number of contacts	24
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

	2-640432-4	2113-N2-18-50
Description	HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	26 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER
Reach Compliance Code	compli	unknown
Connector type	BOARD CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE
Installation type	CABLE	BOARD
Number of rows loaded	1	2
Termination type	IDC	SOLDER
Total number of contacts	24	26
