CMDA7AG7A1S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CMDA7AG7A1S

CMDA7AG7A1S: DescriptionSingle Color LED, Green, Clear Nondiffused, SURFACE MOUNT PACKAGE-3; CategoryLED optoelectronic/LED photoelectric; File Size404KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

CMDA7AG7A1S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMDA7AG7A1S	-	-	View	Buy Now

CMDA7AG7A1S Overview

Single Color LED, Green, Clear Nondiffused, SURFACE MOUNT PACKAGE-3

CMDA7AG7A1S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CML Innovative Technologies
package instruction	SURFACE MOUNT PACKAGE-3
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	GREEN
Configuration	SINGLE
Lens type	CLEAR NONDIFFUSED
Nominal luminous intensity	150.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	520 nm
shape	RECTANGULAR
surface mount	YES
perspective	130 deg

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

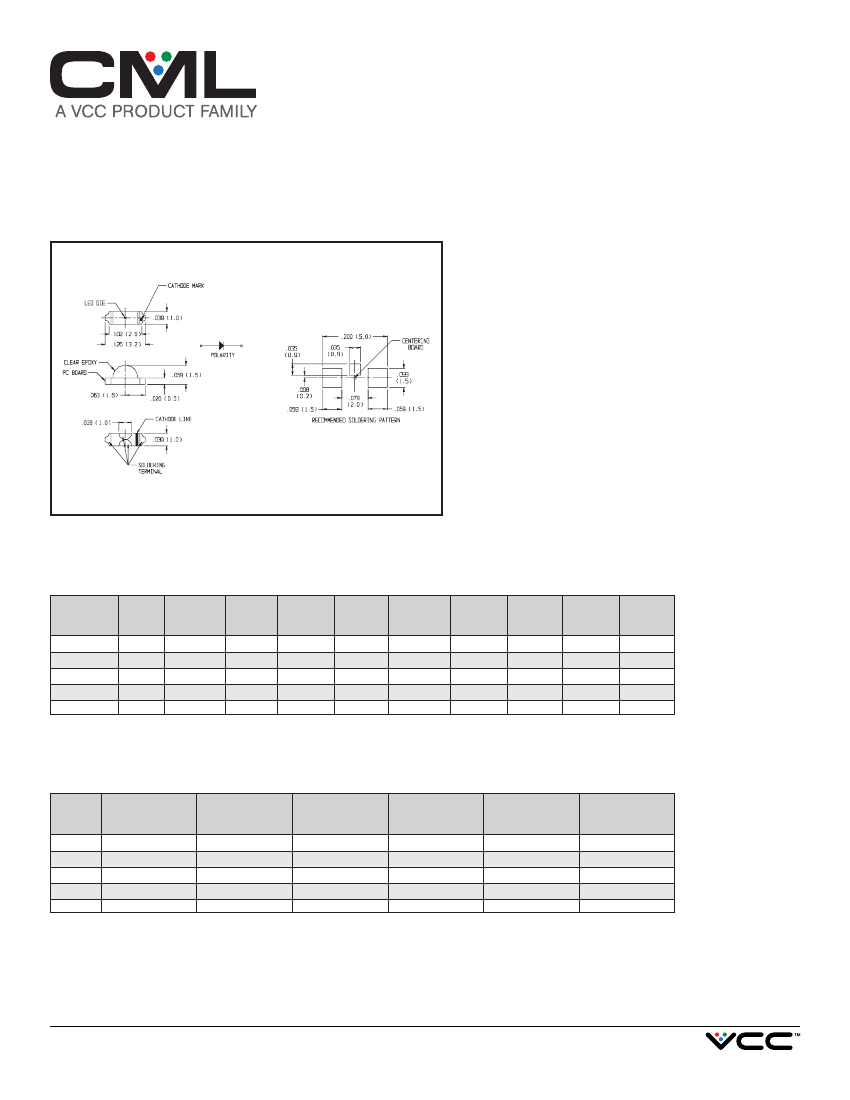

CMDA7 Series HIGH BRIGHTNESS Right Angle Surface Mount LED

Description and Features

Features

• High brightness

• Small size

• Industry standard

Footprint

• Non-diffused optics

• Right angle emitting

• Compatible with IR

solder profiles

• Ideal for use with

Light Pipes

• Available in 8 mm tape

on 7" diameter reel

• Packaged 3,000 pieces

per reel

Applications

• LCD backlighting

• Push button

backlighting

• Front panel indicator

• Symbol indicator

• Microdisplays

• Small message panel

signage

CAUTION: CMDA6AG

and CMDA6CB are

Class 1 ESD sensitive

per MIL-STD-1686.

Please observe

appropriate precautions

during handling and

processing.

NOTES:

1. All dimensions are in inches (mm)

2. 1 micro second @ 10% duty cycle

Electro-Optical Characteristics and Ratings

Part

Number

CMDA7CB7A1S

CMDA7AG7A1S

CMDA7DY7A1S

CMDA7BA7A1S

CMDA7AR7A1S

Output

Color

Blue

Green

Amber

Orange

Red

Diffusion

Package

Color

Clear

Test

Current

(mA)

Forward

Voltage

Typ. (V)

3.4

1.9

Forward

Voltage

Max. Typ. (V)

3.9

2.4

Luminous

Intensity

Min. (mcd)

Luminous

Intensity

Typ. (mcd)

150

Peak

Wavelength

(nm)

469

520

595

609

637

Viewing

Angle

(Degrees)

130

Non-Diffused

Absolute Maximum Ratings to = 25°C

Part

Number

Power

Dissipation

(mW)

Operating

Temperature

(°C)

-30 to +85

Storage

Temperature

(°C)

-40 to +85

Peak Forward

Current Max.

(See note 2) (mA)

100

Reverse Voltage

(IR = 100 mA)

(V)

Lead Solder Time

at 230°C

(Seconds)

The model numbers listed above are standard off the shelf parts. For the user who may have a requirement calling for

various color/electrical specifications, a part number can be determined by calling the factory.

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

CMDA7AG7A1S Related Products

	CMDA7AG7A1S	CMDA7BA7A1S	CMDA7DY7A1S	CMDA7AA7A1S	CMDA7CB7A1S	CMDA7AR7A1S	CMDA7BR7A1S
Description	Single Color LED, Green, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, Orange, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, Amber, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, Orange, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, Blue, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, Red, Clear Nondiffused, SURFACE MOUNT PACKAGE-3	Single Color LED, High Efficiency Red, Clear Nondiffused, SURFACE MOUNT PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3	SURFACE MOUNT PACKAGE-3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED
color	GREEN	ORANGE	AMBER	ORANGE	BLUE	RED	HIGH EFFICIENCY RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED
Nominal luminous intensity	150.0 mcd	95.0 mcd	95.0 mcd	9.0 mcd	60.0 mcd	95.0 mcd	11.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"
peak wavelength	520 nm	609 nm	595 nm	605 nm	469 nm	637 nm	630 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
surface mount	YES	YES	YES	YES	YES	YES	YES
perspective	130 deg	130 deg	130 deg	130 deg	130 deg	130 deg	130 deg
Base Number Matches	-	1	1	1	1	1	-
