PI5C34X2245ZA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PI5C34X2245ZA

PI5C34X2245ZA: DescriptionBus Driver, CBT/FST/QS/5C/B Series, 4-Func, 8-Bit, True Output, CMOS, PDSO80, PLASTIC, DFN-80; Categorylogic logic; File Size215KB，4 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

PI5C34X2245ZA Overview

Bus Driver, CBT/FST/QS/5C/B Series, 4-Func, 8-Bit, True Output, CMOS, PDSO80, PLASTIC, DFN-80

PI5C34X2245ZA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	DFN
package instruction	VSON, SOLCC80,.24,20
Contacts	80
Reach Compliance Code	compliant
ECCN code	EAR99
series	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-N80
JESD-609 code	e0
length	20.5 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	4
Number of ports	2
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	VSON
Encapsulate equivalent code	SOLCC80,.24,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
propagation delay (tpd)	1.25 ns
Certification status	Not Qualified
Maximum seat height	0.84 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	6 mm

PI5C34X2245ZA Preview

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI5C34X2245

Product Features

32-Bit, 2-Port Bus Switch

with 25-Ohm Series Resistor

Near-zero propagation delay

25-ohm series resistor termination

5-ohm switches connect inputs to outputs

Direct bus connection when switches are ON

Ultra-low quiescent power (0.2µA typical)

Ideally suited for notebook applications

Pin compatible with QS34X245

Industrial operating temperature: 40°C to +85°C

Packages available:

80-pin 150 mil wide plastic BQSOP (B)

80-pin plastic very Fine Pitch dual flat No lead (DFN) Z)

Product Description

Pericom Semiconductors PI5C series of logic circuits are produced

using the Companys advanced submicron CMOS technology.

The PI5C34X2245 is a 32-bit, 2-port bus switch. Four enable signals

(BEn) turn the switches on. The bus switch creates no

additional propagational delay or additional ground bounce noise.

The device has a built-in 25-ohm resistor to reduce noise resulting

from reflection, thus eliminating the need for an external

terminating resistor.

Product Pin Configuration

GND

BE1

BE2

BE3

BE4

Logic Block Diagram

BE1

GND

A15

BE2

A16

B15

B16

80-Pin

B, Z

A23

BE3

A24

B23

B24

A31

BE4

B31

Truth Table

(1)

Function

Disconnect

Connect

Note:

1. H = High Voltage Level

L = Low Voltage Level

Hi-Z = High Impedance

BEn

A0 31

Hi- Z

0 31

Pin Name

BEn

A0- A31

B0- B31

Product Pin Description

I/O

D e s cription

Bus Enable Input (Active LO W)

Bus A

Bus B

PS8196A

08/06/01

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI5C34X2245

32-Bit, 2-Port BusSwitch

with 25-Ohm Series Resistor

Maximum Ratings

(Above which the useful life may be impaired. For user guidelines, not tested.)

Storage Temperature ............................................................ 65°C to +150°C

Ambient Temperature with Power Applied ............................ 40°C to +85°C

Supply Voltage to Ground Potential ........................................ 0.5V to +7.0V

DC Input Voltage ..................................................................... 0.5V to +7.0V

DC Output Current ..............................................................................120 mA

Power Dissipation ................................................................................... 0.5W

Note:

Stresses greater than those listed under MAXIMUM

RATINGS may cause permanent damage to the

device. This is a stress rating only and functional

operation of the device at these or any other con-

ditions above those indicated in the operational

sections of this specification is not implied. Exposure

to absolute maximum rating conditions for extended

periods may affect reliability.

DC Electrical Characteristics

(Over the Operating Range, T

= 40°C to +85°C, V

= 5V ±10%)

Parame te rs

OZH

De s cription

Input HIGH Voltage

Input LOW Voltage

Input HIGH Current

Input LOW Current

High Impedance Output Current

Clamp Diode Voltage

Short Circuit Current

(3)

Switch On Resistance

(4)

Te s t Conditions

(1)

Guaranteed Logic HIGH Level

Guaranteed Logic LOW Level

= Max., V

= V

= Max., V

= GND

0 - A, B - V

= Min., I

= 18mA

A (B) = 0V, B (A) = V

= Min., V

= 0.0V, I

= 48mA

= Min., V

= 2.4V, I

= 15mA

M in.

2.0

0.5

100

Typ

(2)

0.7

M ax.

0.8

±1

1.2

Ω

µA

Units

Capacitance

= 25°C, f = 1 MHz)

Parame te rs

(5)

O FF

D e s cription

Input Capacitance

A/B Capacitance, Switch O ff

A/B Capacitance, Switch O n

= 0V

Te s t Conditions

Typ.

Units

Notes:

1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.

2. Typical values are at V

= 5.0V, T

= 25°C ambient and maximum loading.

3. Not more than one output should be shorted at one time. Duration of the test should not exceed one second.

4. Measured by the voltage drop between A and B pin at indicated current through the switch. ON resistance is determined by

the lower of the voltages on the two (A,B) pins.

5. This parameter is determined by device characterization but is not production tested.

PS8196A

08/06/01

321098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI5C34X2245

32-Bit, 2-Port BusSwitch

with 25-Ohm Series Resistor

Power Supply Characteristics

Parame te rs

∆I

CCD

D e s cription

Q uiescent Power Supply Current

Supply Current per Input @ TTL HIGH

Supply Current per Input per MHz

(4)

Te s t Conditions

(1)

= Max.

= Max.,

A & B Pins O pen

BEn = GND,

Control Input

Toggling

50% Duty Cycle

= GND or V

= 3.4V

(3)

M in. Typ

(2)

M ax. Units

0.1

3.0

2.5

µA

0.25

mA/

MHz

Notes:

1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device.

2. Typical values are at Vcc = 5.0V, +25°C ambient.

3. Per TTL driven input (V

= 3.4V, control inputs only); A and B pins do not contribute to Icc.

4. This current applies to the control inputs only and represent the current required to switch internal capacitance at the

specified frequency. The A and B inputs generate no significant AC or DC currents as they transition. This parameter

is not tested, but is guaranteed by design.

PI5C34X2245 Switching Characteristics over Operating Range

PI5C34X2245

Com.

Parame te r

PLH

PHL

PZH

PZL

PHZ

PLZ

D e s cription

Propagation Delay

(2,3)

AX to Bx, Bx to Ax

Bus Enable Time

BEx to Ax or Bx

Bus Disable Time

BEx to Ax or Bx

= 50pF

= 500 ohms

1.5

Conditions

(1)

M in.

M ax.

1.25

7.5

5.5

Units

Notes:

1. See test circuit and waveforms.

2. This parameter is guaranteed but not tested on Propagation Delays.

3. The bus switch contributes no propagational delay other than the RC delay of the ON resistance of the switch and the load

capacitance. The time constant for the switch alone is of the order of 0.25ns for 50pF load. Since this time constant is much

smaller than the rise/fall times of typical driving signals, it adds very little propagational delay to the system. Propagational

delay of the bus switch when used in a system is determined by the driving circuit on the driving side of the switch and its

interaction with the load on the driven side.

PS8196A

08/06/01

.020

0.50 BSC

.007

.011

0.17

0.27

0.10 M C A B

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI5C34X2245

32-Bit, 2-Port BusSwitch

with 25-Ohm Series Resistor

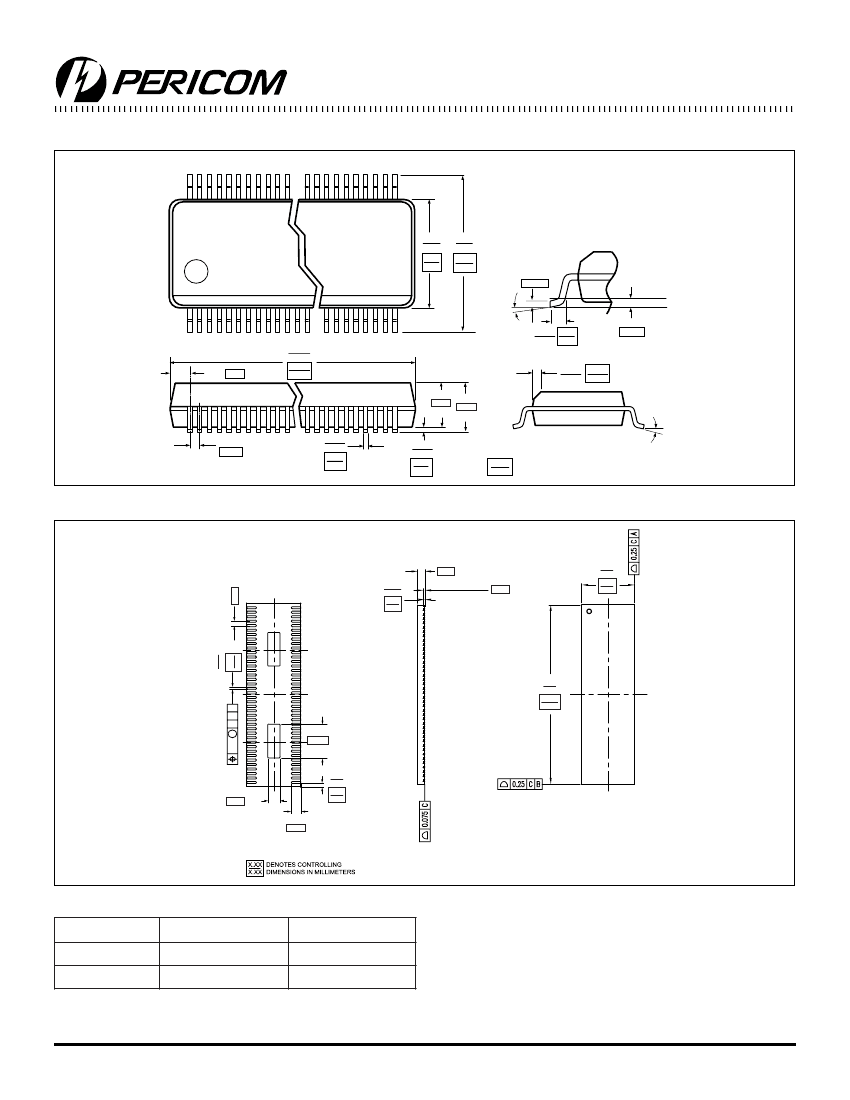

80-Pin 150 Mil Wide Plastic BQSOP (B) Package

.150

.157

3.80

4.00

.228

.244

5.80

6.20

.008 NOM

0.203

Gauge Plane

5˚

0.803

0.811

20.40

20.60

.019 0.50

.029 0.75

.010

0.254 BSC

0.50

.019

REF

.010

.016

.063

1.60

Nom

.078

2.0

Max

0.254 x 45˚

0.406

.0197

BSC

0.50

.007

.010

0.17

0.27

5˚

.002

.009

0.05

0.25

X.XX

DENOTES DIMENSIONS

IN MILLIMETERS

80-Pin Plastic Very Fine Pitch Dual Flat No lead (DFN) (Z) Package

.033

0.84 MAX

.00

.0016

STANDOFF 0.00

0.04

LEAD THICKNESS

.008

0.20 NOM

.232

.240

5.90

6.10

.803

.811

20.40

20.60

.115

2.925

NOM

2 PLACES

.033

0.85

NOM

2 PLACES

.014

.016

0.35

4 PLACES

.040

.035

0.90

NOM

Ordering Information

Part

PI5C34X2245B

PI5C34X2245Z

Package

DFN (Z)

Te mpe rature

40°C to +85°C

80 BQ SO P (B)

Pericom Semiconductor Corporation

2380 Bering Drive • San Jose, CA 95131 • 1-800-435-2336 • Fax (408) 435-1100 • http://www.pericom.com

PS8196A

08/06/01
