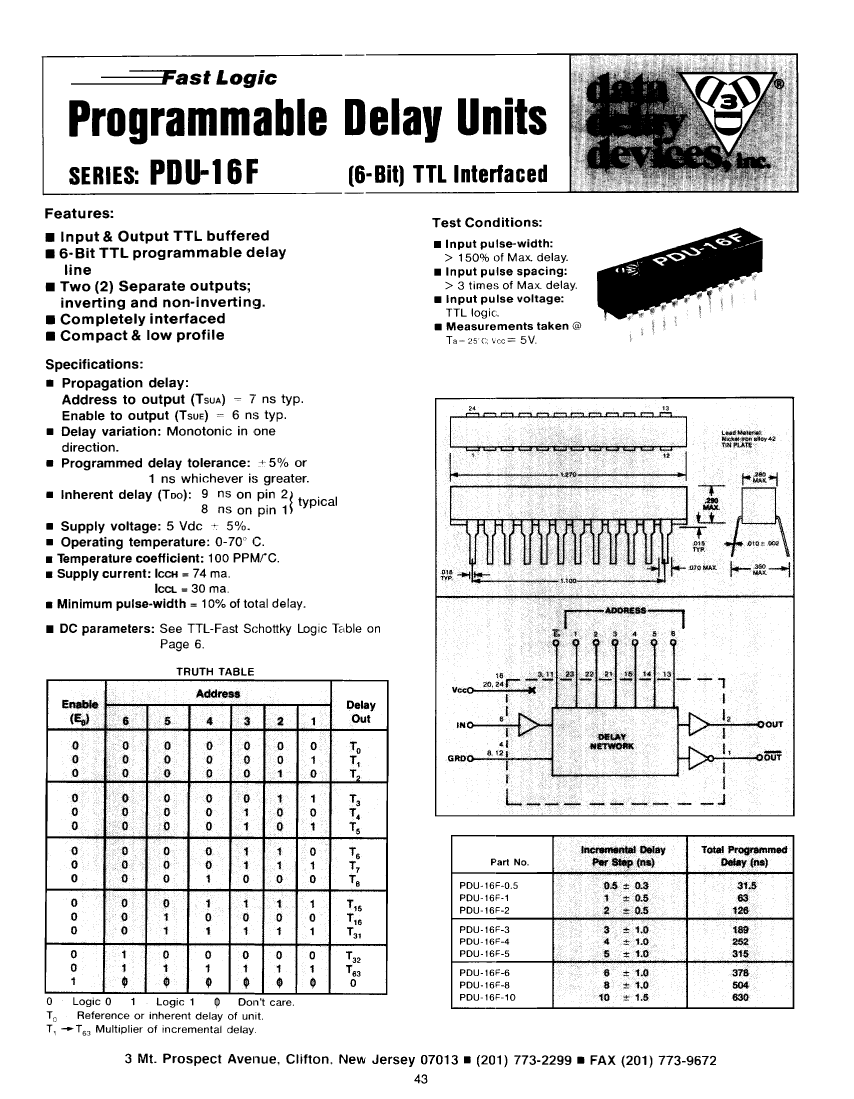

Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Data Delay Devices |
| Parts packaging code | DIP |
| package instruction | LOW PROFILE, DIP-24/17 |
| Contacts | 24/17 |
| Reach Compliance Code | compliant |
| Other features | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. |
| series | F |
| Input frequency maximum value (fmax) | 37.037 MHz |
| JESD-30 code | R-XDIP-T17 |
| JESD-609 code | e3 |
| length | 33.02 mm |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 63 |
| Number of terminals | 17 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | UNSPECIFIED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 74 mA |
| programmable delay line | YES |
| Certification status | Not Qualified |
| Maximum seat height | 7.62 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | TIN |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Total delay nominal (td) | 135 ns |
| width | 7.62 mm |
| PDU-16F-2ME9 | PDU-16F-10ME9 | PDU-16F-8ME9 | PDU-16F-3ME9 | PDU-16F-6ME9 | PDU-16F-0.5MC4 | PDU-16F-1ME9 | PDU-16F-5ME9 | PDU-16F-4ME9 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 | Active Delay Line, Programmable, 1-Func, 63-Tap, Complementary Output, TTL, LOW PROFILE, DIP-24/17 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | LOW PROFILE, DIP-24/17 | LOW PROFILE, DIP-24/17 | DIP, | DIP, | DIP, | SOP, | DIP, | LOW PROFILE, DIP-24/17 | LOW PROFILE, DIP-24/17 |
| Reach Compliance Code | compliant | compli | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. |
| series | F | F | F | F | F | F | F | F | F |
| Input frequency maximum value (fmax) | 37.037 MHz | 7.82473 MHz | 9.74659 MHz | 25.2525 MHz | 12.9199 MHz | 123.457 MHz | 69.4444 MHz | 15.4321 MHz | 19.1571 MHz |
| JESD-30 code | R-XDIP-T17 | R-XDIP-T17 | R-XDIP-T17 | R-XDIP-T17 | R-XDIP-T17 | R-XDSO-G24 | R-XDIP-T17 | R-XDIP-T17 | R-XDIP-T17 |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| length | 33.02 mm | 33.02 mm | 33.02 mm | 33.02 mm | 33.02 mm | 32.512 mm | 33.02 mm | 33.02 mm | 33.02 mm |
| Logic integrated circuit type | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 |
| Number of terminals | 17 | 17 | 17 | 17 | 17 | 24 | 17 | 17 | 17 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | SOP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum supply current (ICC) | 74 mA | 74 mA | 74 mA | 74 mA | 74 mA | 74 mA | 74 mA | 74 mA | 74 mA |
| programmable delay line | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.112 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | YES | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Total delay nominal (td) | 135 ns | 639 ns | 513 ns | 198 ns | 387 ns | 40.5 ns | 72 ns | 324 ns | 261 ns |
| Maker | Data Delay Devices | - | Data Delay Devices | - | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | - | DIP | DIP | DIP |
| Contacts | 24/17 | 24/17 | 24/17 | 24/17 | 24/17 | - | 24/17 | 24/17 | 24/17 |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | - | 7.62 mm | 7.62 mm | 7.62 mm |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | - | - | - |
