2328-6121-TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2328-6121-TB

2328-6121-TB: Description28 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size858KB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

2328-6121-TB Overview

28 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

2328-6121-TB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	2300
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

™

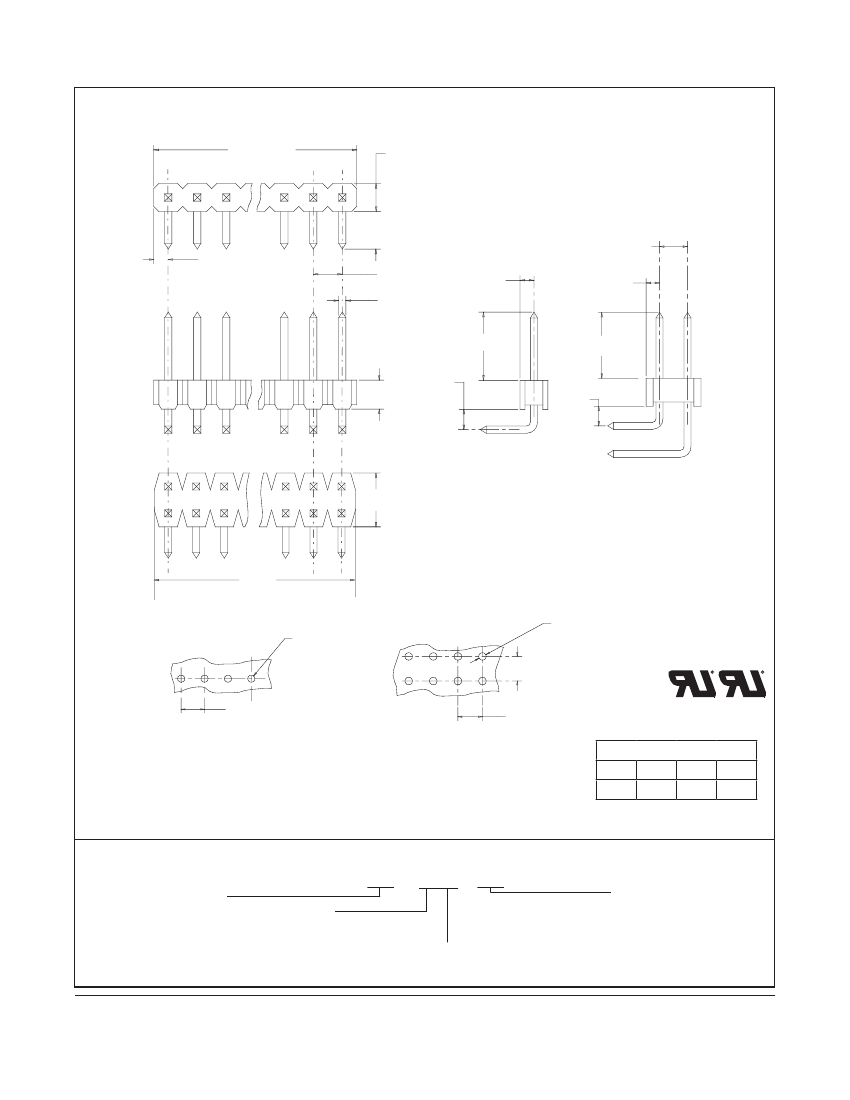

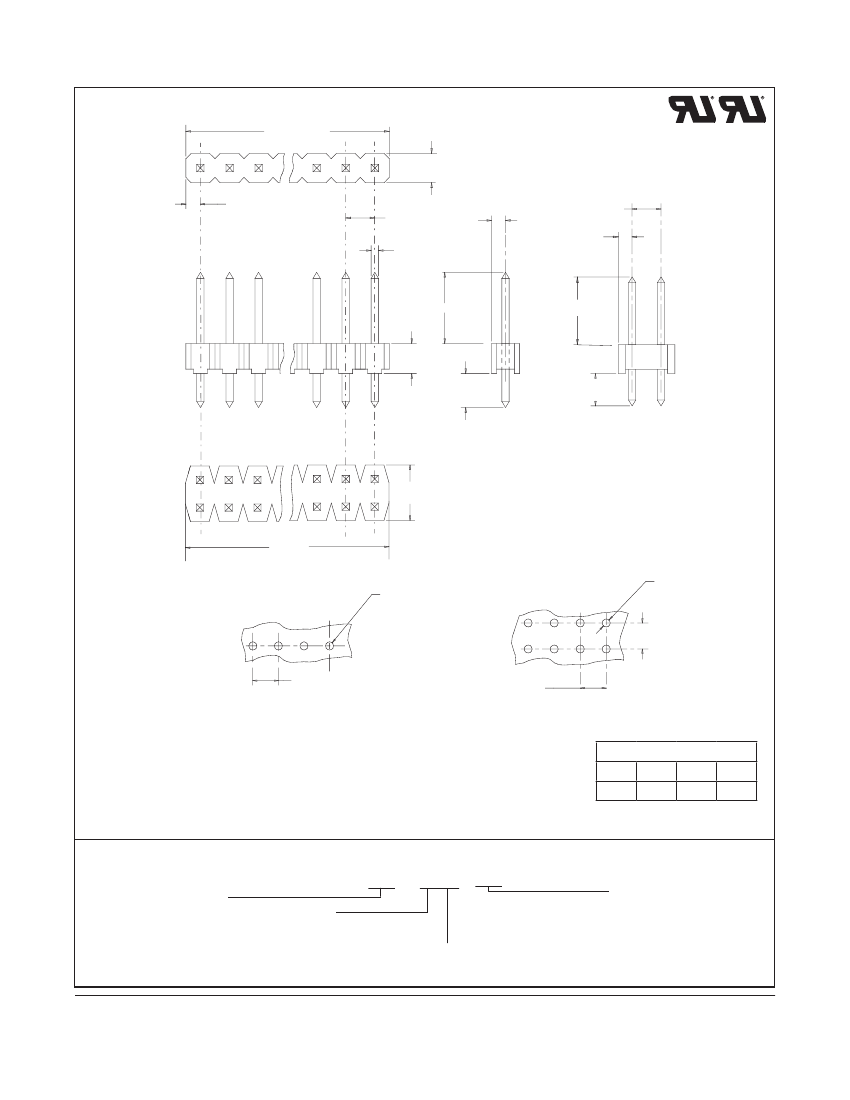

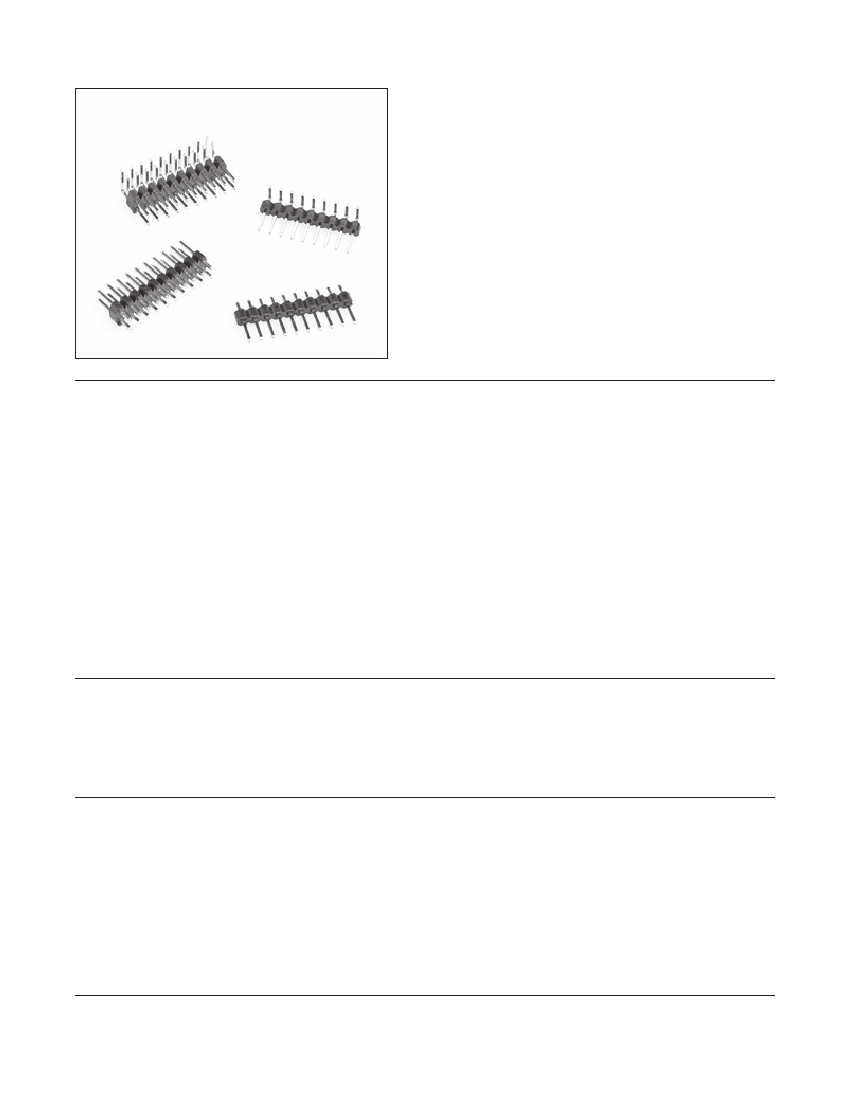

Pin Strip Header

.100" and .100" × .100" Straight and Right Angle, Solder Tail

•

2300 Series

One and two row versions

Straight and right angle versions

Tin lead or gold plating available

Tapered tip does not cut the socket wipe during

insertion, reducing operational failure and repairs

• Board retention feature available

• Two-row right angle mates with Pak 100 wiremount

sockets anywhere on the board

• See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: August 4, 2008

TS-0766-B

Sheet 1 of 3

Physical

Insulation:

Material: Glass Filled Thermoplastic

Flammability: UL 94V-0

Color: Black

Contact:

Material: Copper Alloy

Plating:

Underplating: 50 μ" [ 1.27 μm ] Nickel

Wiping Area: Tin or Gold (See Ordering Information)

Solder Tails: 100 μ" [ 2.54 μm ] 90/10 Tin Lead

Marking:

None

Electrical

Current Rating:

3 A

Insulation Resistance:

> 5 × 10

at 500 V

Withstanding Voltage:

100 V

RMS

at Sea Level

Environmental

Temperature Rating:

55°C to +105°C

UL File No.: E68080
