L-53MBCK

Description
Single Color LED, Blue, Water Clear, T-1 3/4, 5mm,
CategoryLED optoelectronic/LED    photoelectric
File Size56KB,3 Pages
ManufacturerKingbright
Websitehttp://www.us.kingbright.com
Environmental Compliance
Download Datasheet Parametric View All

L-53MBCK Overview

Single Color LED, Blue, Water Clear, T-1 3/4, 5mm,

L-53MBCK Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerKingbright
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
colorBLUE
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity110.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height8.6 mm
method of packingBULK
peak wavelength430 nm
shapeROUND
size5 mm
surface mountNO
T codeT-1 3/4
Terminal pitch2.54 mm
perspective16 deg

L-53MBCK Preview

T-1 3/4 (5mm) SOLID STATE LAMP
L-53MBCK
BLUE
Features
!
LOW POWER CONSUMPTION.
!
POPULAR
Description
The Blue source color devices are made with GaN on
SiC Light Emitting Diode.
Static electricity and surge damage the LEDS. It is
recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.
T-1 3/4 DIAMETER PACKAGE.
!
GENERAL PURPOSE LEADS.
!
RELIABLE AND RUGGED.
!
LONG
LIFE - SOLID STATE RELIABILITY.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAC0507
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: NOV/19/2002
DRAWN: X.T.HU
PAGE: 1 OF 3
Selection Guide
P ar t N o .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
L-53MBCK
BLUE (GaN)
WATER CLEAR
50
Ty p .
110
V i ew i n g
An g l e
2θ1/2
16°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
D ev i c e
Ty p .
430
466
60
100
4.0
4.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
B lu e
105
30
150
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un its
mW
mA
mA
V
SPEC NO: DSAC0507
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: NOV/19/2002
DRAWN: X.T.HU
PAGE: 2 OF 3

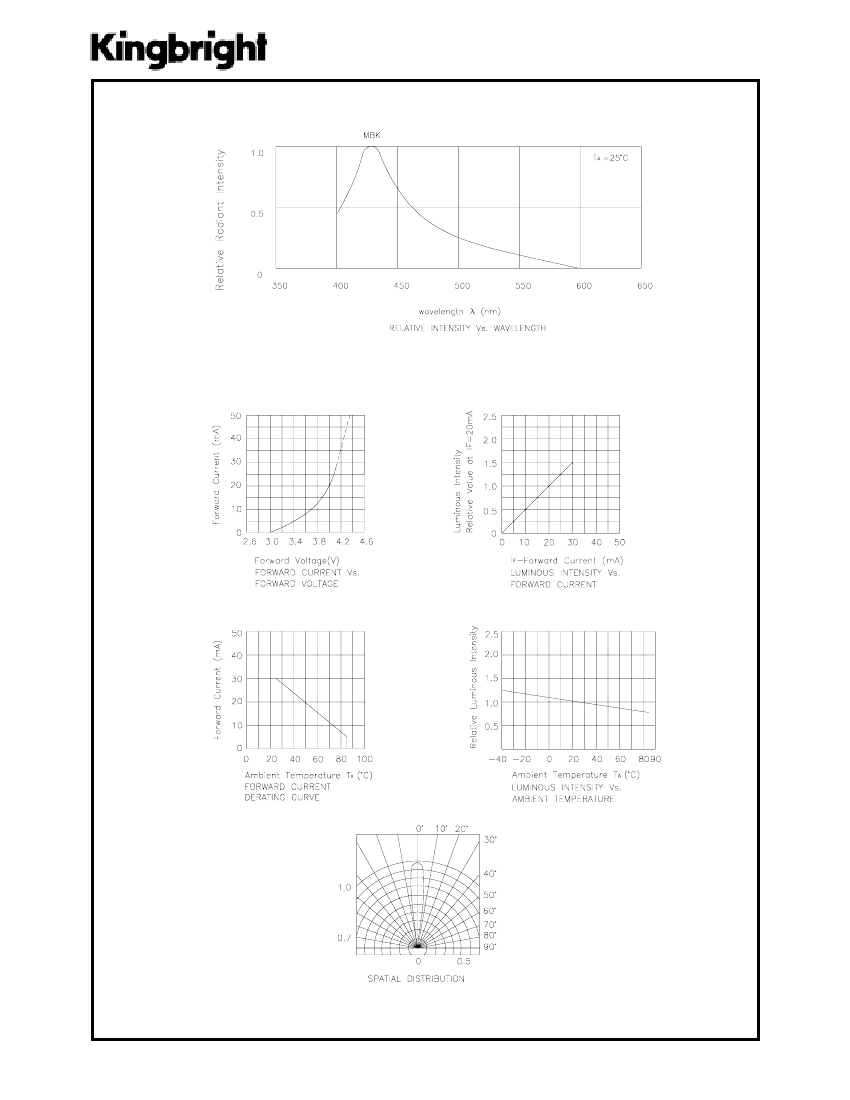

Blue
L-53MBCK
SPEC NO: DSAC0507
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: NOV/19/2002
DRAWN: X.T.HU
PAGE: 3 OF 3
