L-53VGC-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-53VGC-E

L-53VGC-E: DescriptionSingle Color LED, Green, Water Clear, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size82KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-53VGC-E Overview

Single Color LED, Green, Water Clear, T-1 3/4, 5mm,

L-53VGC-E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	4500.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	518 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg

L-53VGC-E Preview

T-1 3/4 (5mm) SOLID STATE LAMP

L-53VGC-E

GREEN

Features

WATER

Description

MATERIAL EFFICIENCY.

The Green source color devices are made with DH

InGaN on GaAs substrate Light Emitting Diode.

CLEAR LENS IS AVAILABLE.

AND RUGGED.

OUTSTANDING

RELIABLE

COMPATIBLE/LOW CURRENT CAPABILITY.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: KDA0548

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: SEP/23/2001

DRAWN: J.X.FU

PAGE: 1 OF 3

Selection Guide

Par t No .

Dic e

L en s Ty p e

Iv (m c d )

@ 20 m A

Min .

L-53VGC-E

GREEN (InGaN)

WATER CLEAR

2800

Ty p .

4500

V i ew i n g

An g l e

2θ1/2

30 °

Note:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

Electrical / Optical Characteristics at T

)

=25°C

Sy m b o l

peak

∆λ

1/2

Par am et er

Peak Wavelength

Dominate Wavelength

Spectral Line Halfwidth

Capacitance

Forward Voltage

Reverse Current

Green

D ev i c e

Ty p .

518

525

4.0

4.5

Max .

Un it s

Tes t Co n d it io n s

IF=20mA

VF=0V;f=1MHz

IF=20mA

V R = 5V

Absolute Maximum Ratings at T

)

=25°C

Par am et er

Power dissipation

DC Forward Current

Peak Forward Current [1]

Reverse Voltage

Operating/Storage Temperature

Lead Solder Temperature [2]

Notes:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 4mm below package base.

Gr een

12 0

15 0

-40

C To +85

°C

260

C For 5 Seconds

Un it s

SPEC NO: KDA0548

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: SEP/23/2001

DRAWN: J.X.FU

PAGE: 2 OF 3

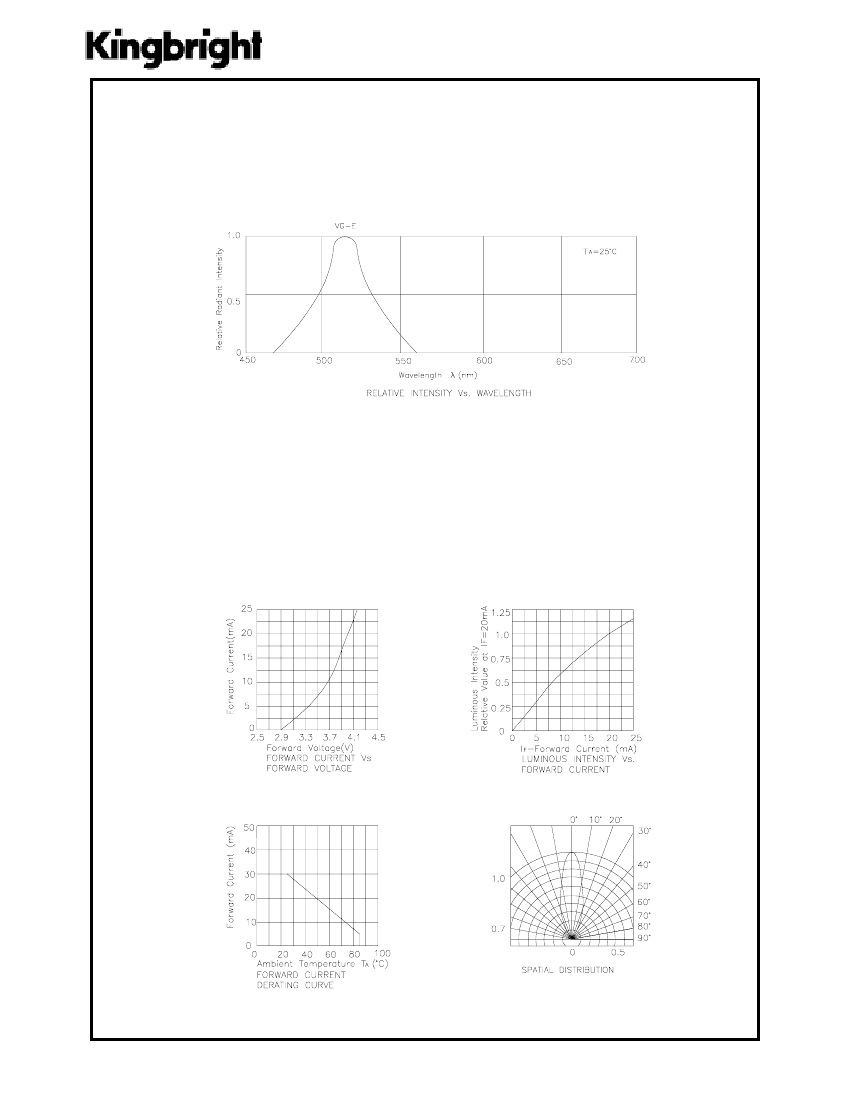

Green L-53VGC-E

SPEC NO: KDA0548

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: SEP/23/2001

DRAWN: J.X.FU

PAGE: 3 OF 3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
