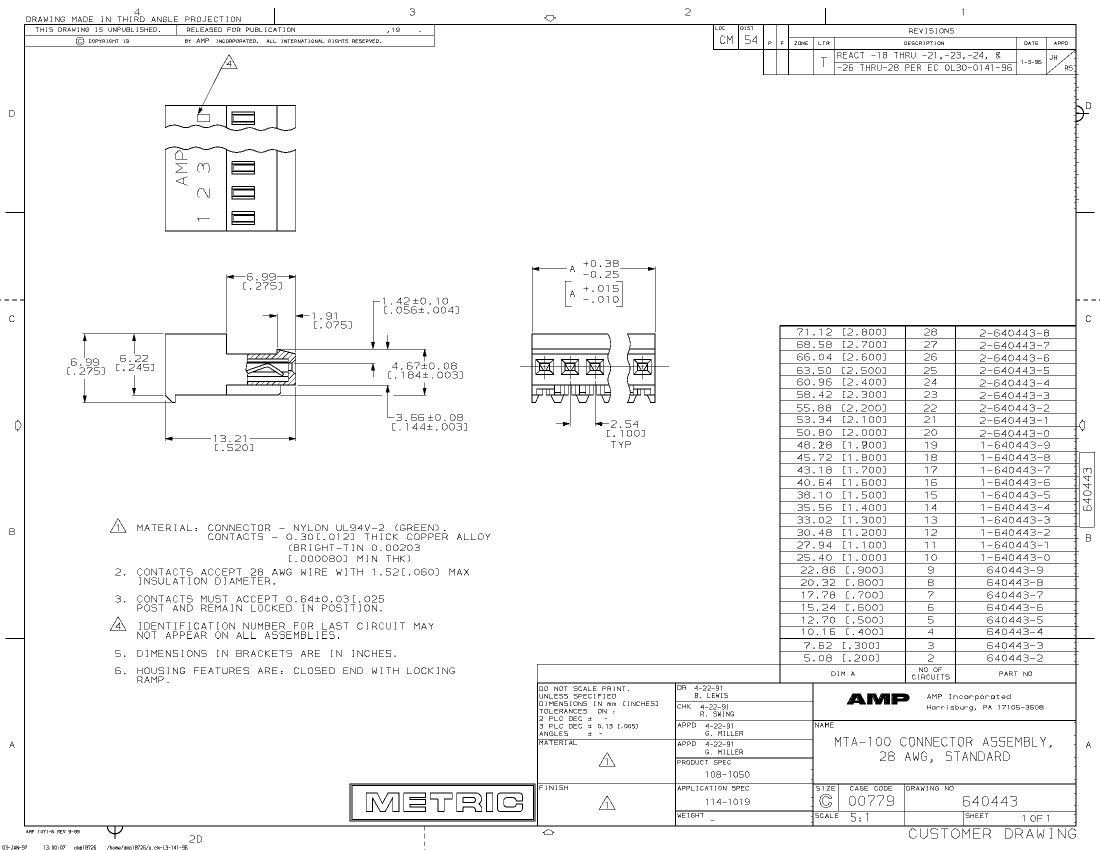

PDF
Preview

2-640443-0

Description
20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size38KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

2-640443-0 Online Shopping

Suppliers Part Number Price MOQ In stock
2-640443-0 - - View Buy Now

2-640443-0 Overview

20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC

2-640443-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresAMP
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number640443
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts20
UL Flammability Code94V-2
Base Number Matches1

Preview

Download Datasheet

2-640443-0 Related Products

2-640443-0 2-640443-1 2-640443-2 2-640443-3 2-640443-4 2-640443-5 2-640443-6 2-640443-7 1-640443-7 1-640443-9
Description 20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 21 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 22 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 23 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 24 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 25 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 26 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 27 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC 17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC 19 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code unknow unknow compli unknow unknow compli unknow unknow unknown unknown
Other features AMP AMP AMP AMP AMP AMP AMP AMP AMP CLOSED END, LOOSE PIECE PKG.
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC
Total number of contacts 20 21 22 23 24 25 26 27 17 19
UL Flammability Code 94V-2 94V-2 94V-2 94V-2 94V-2 94V-2 94V-2 94V-2 94V-2 94V-2
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 - EAR99
Contact completed and terminated TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - -
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 - -
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE -
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT - STRAIGHT
Base Number Matches 1 1 1 1 1 1 1 1 - -
body width - 0.275 inch 0.275 inch 0.275 inch - 0.275 inch 0.275 inch 0.275 inch - 0.275 inch
subject depth - 0.52 inch 0.52 inch 0.52 inch - 0.52 inch 0.52 inch 0.52 inch - 0.52 inch
body length - 2.1 inch 2.2 inch 2.3 inch - 2.5 inch 2.6 inch 2.7 inch - 1.9 inch
Body/casing type - PLUG PLUG PLUG - PLUG PLUG PLUG - PLUG
Contactor design - PREASSEM CONN PREASSEM CONN PREASSEM CONN - PREASSEM CONN PREASSEM CONN PREASSEM CONN - PREASSEM CONN
contact mode - RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR
Contact resistance - 6 mΩ 6 mΩ 6 mΩ - 6 mΩ 6 mΩ 6 mΩ - 6 mΩ
Contact style - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT - SQ PIN-SKT
Dielectric withstand voltage - 750VAC V 750VAC V 750VAC V - 750VAC V 750VAC V 750VAC V - 750VAC V
Durability - 25 Cycles 25 Cycles 25 Cycles - 25 Cycles 25 Cycles 25 Cycles - 25 Cycles
maximum insertion force - 8.896 N 8.896 N 8.896 N - 8.896 N 8.896 N 8.896 N - 8.896 N
Insulation resistance - 5000000000 Ω 5000000000 Ω 5000000000 Ω - 5000000000 Ω 5000000000 Ω 5000000000 Ω - 5000000000 Ω
Insulator color - GREEN GREEN GREEN - GREEN GREEN GREEN - GREEN
insulator material - NYLON NYLON NYLON - NYLON NYLON NYLON - NYLON
Plug contact pitch - 0.1 inch 0.1 inch 0.1 inch - 0.1 inch 0.1 inch 0.1 inch - 0.1 inch
Maximum operating temperature - 105 °C 105 °C 105 °C - 105 °C 105 °C 105 °C - 105 °C
Minimum operating temperature - -55 °C -55 °C -55 °C - -55 °C -55 °C -55 °C - -55 °C
Plating thickness - 80u inch 80u inch 80u inch - 80u inch 80u inch 80u inch - 80u inch
Rated current (signal) - 5 A 5 A 5 A - 5 A 5 A 5 A - 5 A
Guideline - UL, CSA UL, CSA UL, CSA - UL, CSA UL, CSA UL, CSA - UL, CSA
reliability - COMMERCIAL COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL - COMMERCIAL
Maximum wire diameter - 22 AWG 22 AWG 22 AWG - 22 AWG 22 AWG 22 AWG - 22 AWG
Minimum wire diameter - 28 AWG 28 AWG 28 AWG - 28 AWG 28 AWG 28 AWG - 28 AWG
Evacuation force-minimum value - 3.614 N 3.614 N 3.614 N - 3.614 N 3.614 N 3.614 N - 3.614 N
