FT1034-1.2/FT1034-2.5
LT1034-1.2/LT1034-2.5
Micropower Dual Reference
Micropower Dual
Reference
U
Features
s
s
s
s
s
Description
The FT1034 is a micropower, precision 1.2V/2.5 refer-
ence combined with a 7V auxiliary reference. The 1.2V/2.5V
reference is a trimmed, thin-film, band-gap, voltage refer-
ence with 1% initial tolerance and guaranteed 20ppm/°C
temperature drift. Operating on only 20µA, the FT1034
offers guaranteed drift, low temperature cycling hyster-
esis and good long-term stability. The low dynamic im-
pedance makes the FT1034 easy to use from unregulated
supplies. The 7V reference is a subsurface zener device for
less demanding applications.
The FT1034 reference can be used as a high performance
upgrade of the FT385 or FT1004, where guaranteed
temperature drift is desired.
Guaranteed 20 ppm/
°
C Drift
Guaranteed 40 ppm/
°
C Drift (SO-8 Package)
20
µ
A to 20mA Operation (1.2V)
Dynamic Impedance: 1Ω
7V,
100µA Reference
Applications
s
s
s
Portable Meters
Precision Regulators
Calibrators

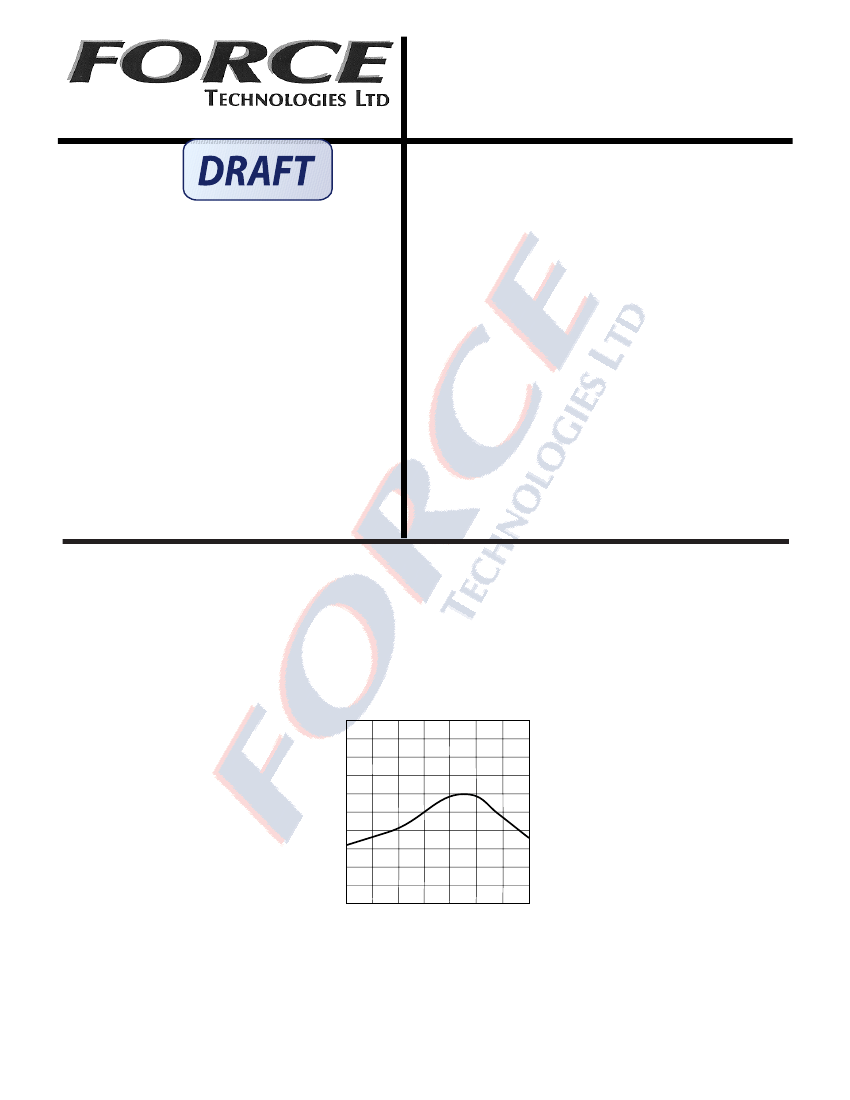

T
Temperature Drift
FT1034CS8-1.2
2.5
REVERSE VOLTAGE CHANGE (mV)
2.0
1.5
1.0
0.5
0
–0.5
–1.0
–1.5
–2.0
–2.5
–50 –25
50
25
0
75
TEMPERATURE (°C)
100
125
U
U
1
FT1034-1.2/FT1034-2.5
Micropower Dual Reference
Absolute Maximum Ratings
A
Operating Current ................................................. 20mA
Forward Current.................................................... 20mA
Storage Temperature Range ................. – 65°C to 150°C
Lead Temperature (Soldering, 10 sec).................. 300°C
N

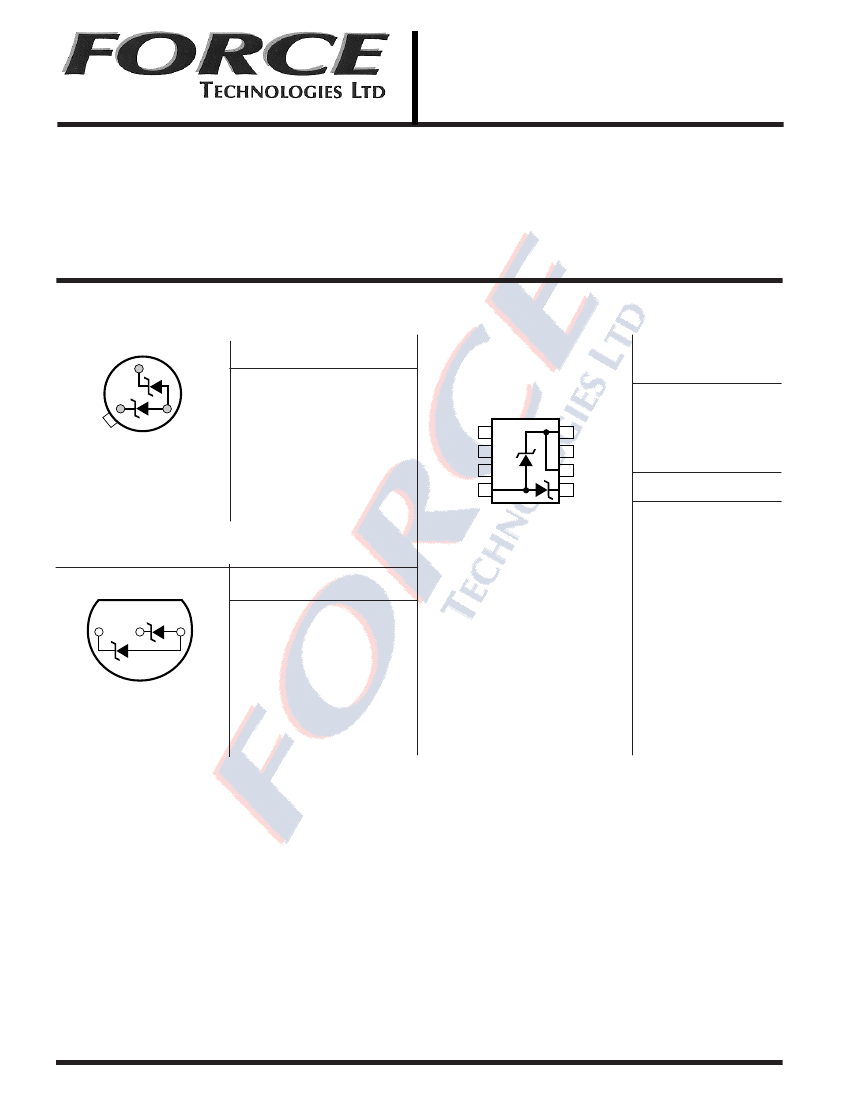

Package/Order Information
BOTTOM VIEW
1.2V
7V
ORDER PART NUMBER
FT1034BCH-1.2
FT1034BCH-2.5
FT1034BMH-1.2
FT1034BMH-2.5
FT1034CH-1.2
FT1034CH-2.5
FT1034MH-1.2
FT1034MH-2.5
H PACKAGE
3-LEAD TO-46 METAL CAN
T
JMAX
= 150°C,
θ
JA
= 440°C/ W,
θ
JC
= 80°C/ W
BOTTOM VIEW
1.2V
7V
ORDER PART NUMBER
FT1034BCZ-1.2
FT1034BCZ-2.5
FT1034BIZ-1.2
FT1034BIZ-2.5
FT1034CZ-1.2
FT1034CZ-2.5
FT1034IZ-1.2
FT1034IZ-2.5
Z PACKAGE
3-LEAD TO-92 PLASTIC
T
JMAX
= 100°C,
θ
JA
= 160°C/ W
U
U
W
W W
U
W
Operating Temperature
Commercial ............................................. 0° to 70°C
Industrial .......................................... – 40°C to 85°C
Military....................................... – 55°C to 125°C
ORDER PART
NUMBER
TOP VIEW
NC 1
NC 2
NC 3
GND 4
8
7
6
5
2.5V
NC
2.5V
7V
FT1034CS8-1.2
FT1034CS8-2.5
FT1034IS8-1.2
FT1034IS8-2.5
PART MARKING
3401
3402
1034I12
34I02
S8 PACKAGE
8-LEAD PLASTIC SO
T
JMAX
= 175°C,
θ
JA
= 150°C/ W
