2-329456-2 datasheet, PDF - EEWORLD Datasheet

2-329456-2: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

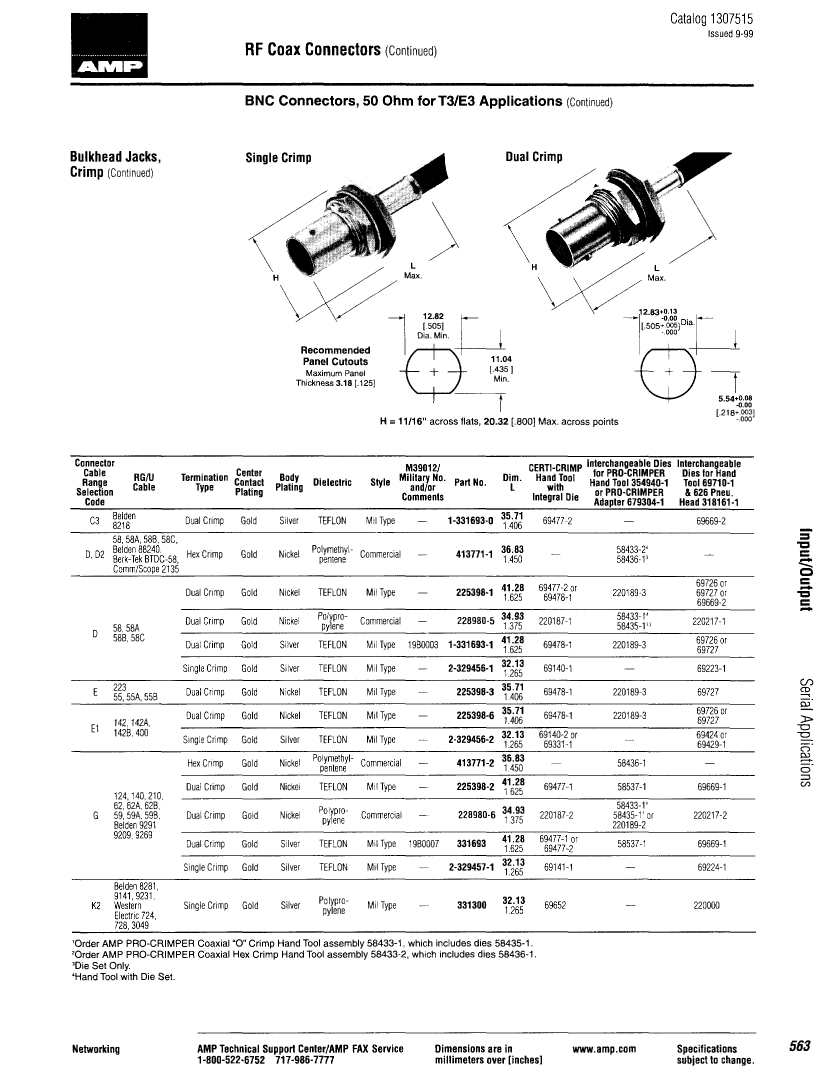

2-329456-2 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG142/U; RG142A/U; RG142B/U; RG400/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	329456
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.35
Base Number Matches	1

	2-329456-2	2-329457-1	331300
Description	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK
Reach Compliance Code	unknow	unknow	unknown
Other features	APPLICABLE CABLES: RG142/U; RG142A/U; RG142B/U; RG400/U	APPLICABLE CABLES: RG124/U; RG140/U; RG210/U; RG62/U; RG62A/U; RG62B/U; RG59/U; RG59A/U	APPLICABLE CABLES: BELDEN 8218; BELDEN 9141; BELDEN 9231
Body/casing type	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYPROPYLENE
MIL compliance	YES	YES	YES
Manufacturer's serial number	329456	329457	331300
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	2.5 GHz	2.5 GHz	2.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES
Termination type	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.35	1.35	1.35
Base Number Matches	1	1	1
