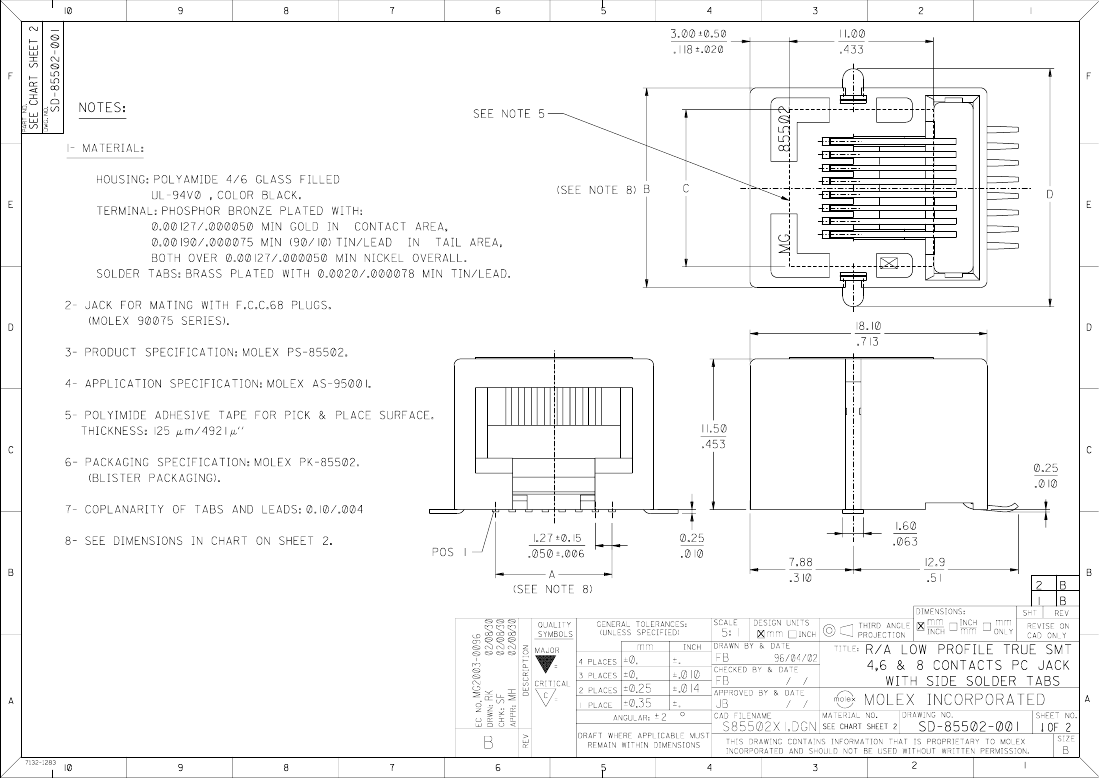

Preview

85502-0008: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking Mech, Jack,; CategoryThe connector The connector; File Size123KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

85502-0008 Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking Mech, Jack,

85502-0008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Board mount options	SOLDER HOLDING FLANGE
body width	0.453 inch
subject depth	0.713 inch
body length	0.716 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE46
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE
Terminal length
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0

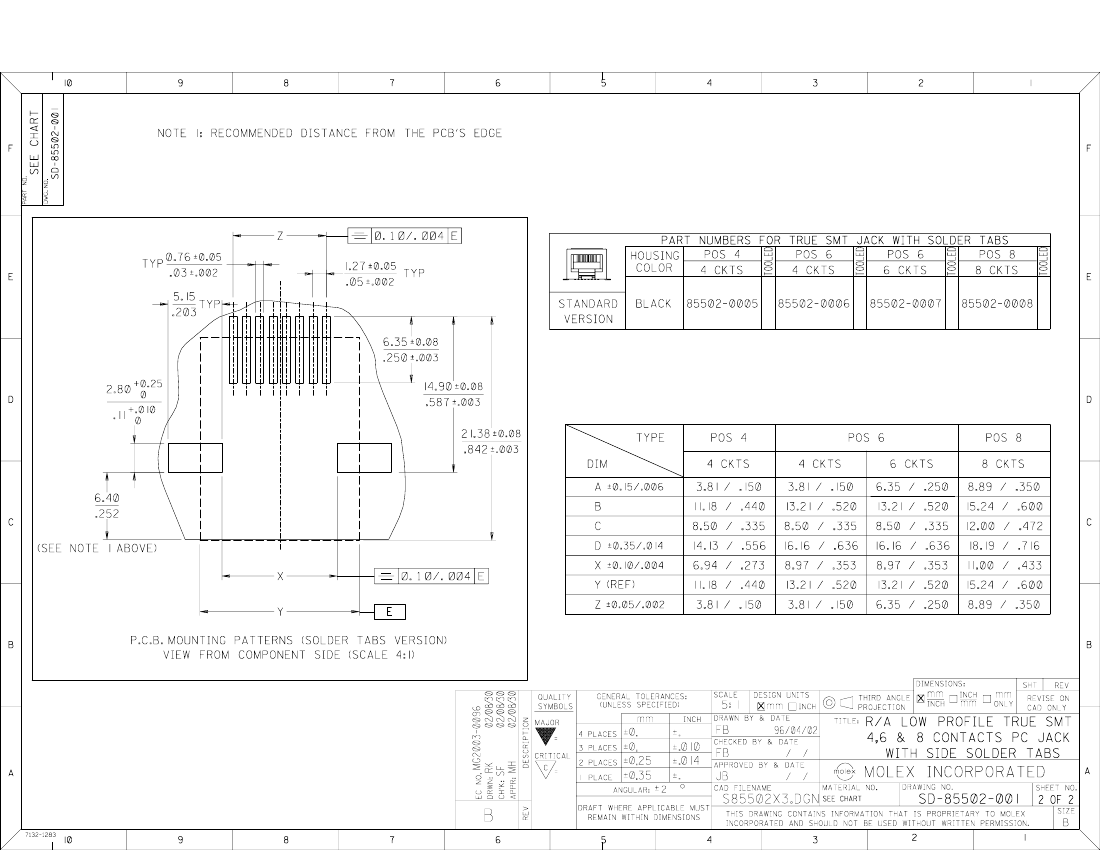

Preview

Download Datasheet

View All

85502-0008 Related Products

	85502-0008	85502-0007	85502-0005
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking Mech, Jack,	Telecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking Mech, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking Mech, Jack,
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE
body width	0.453 inch	0.453 inch	0.453 inch
subject depth	0.713 inch	0.713 inch	0.713 inch
body length	0.716 inch	0.636 inch	0.556 inch
Body/casing type	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles	500 Cycles
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYAMIDE46	GLASS FILLED POLYAMIDE46	GLASS FILLED POLYAMIDE46
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS	MULTIPLE MATING PARTS	MULTIPLE MATING PARTS
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING MECH	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of ports	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	50u inch	50u inch	50u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	6	4
UL Flammability Code	94V-0	94V-0	94V-0
Maker	Molex	-	Molex
