B1060-23: DescriptionLight-Dependent Resistor, 300V,; CategoryLED optoelectronic/LED photoelectric; File Size131KB，2 Pages; ManufacturerExcelitas

Download Datasheet Parametric Compare View All

B1060-23 Overview

Light-Dependent Resistor, 300V,

B1060-23 Parametric

Parameter Name	Attribute value
Maker	Excelitas
Reach Compliance Code	unknown
dark resistance	300000 Ω
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	LIGHT-DEPENDENT RESISTOR
Maximum output voltage	300 V
peak wavelength	.6 nm
Maximum power dissipation	0.09 W
Semiconductor material	CDS
surface mount	NO

Preview

Download Datasheet

View All

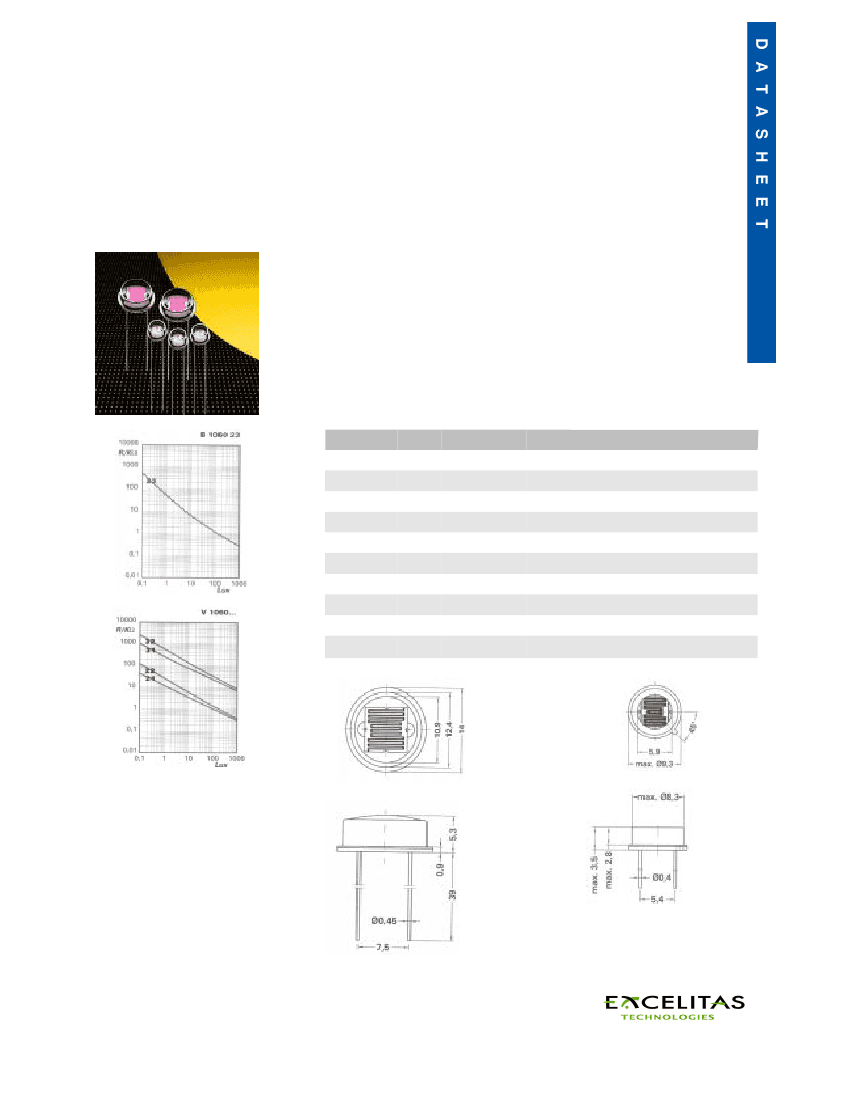

Photocells B 1060, V 1060

Metal housing TO types

Street Light control

Combustion control

This range of Photocells includes metal housings in 2 different sizes, TO-

8 and TO-5.

Operating Temperature Range: -20...+70

°C

(non continuous)

Storage Temperature Range:

-20...+80

°C

(non continuous)

Type

units

B 1060 23

R

10

KΩ

4...15

R

100

KΩ

typ.

1,6

R

01

MΩ

min

0,1

R

05

MΩ

min

0,3

V

max

V

300

P

max

mW

90

γ

10/100

typ.

λ

peak

nm

600

0,8

V 1060 21

2,9...5,5

5...9

1,0

1,6

0,02

0,06

0,18

150

90

0,8

1,30,9

600

V 1060 31

V 1060 32

40...120

100...220

25

35

0,5

1,0

1,5

3,0

300

90

0,6

0,65

600

B 10...

V 10...

all

Dimensions

in mm.

Europe:

PerkinElmer Optoelectronics

GmbH & CoKG

Wenzel Jaksch Str 31

65199 Wiesbaden / Germany

Phone +49(0)611 492 0

Fax

+49(0)611 492 170

USA:

PerkinElmer Optoelectronics

44370 Christy Street

Freemont, CA 94538-3180

Phone +510 979 6500

+800 775 6786

Fax

+510 687 1140

Asia:

PerkinElmer Optoelectronics

47, Ayer Rajah Crescent #06-12

Singapore

139947

Phone +65 775 2022

Fax

+65 775 1008

www.excelitas.com

B1060-23 Related Products

	B1060-23	113254680	113254681	113254679	113254678	113254677
Description	Light-Dependent Resistor, 300V,	Light-Dependent Resistor, 300V,	Light-Dependent Resistor, 150V,	Light-Dependent Resistor, 300V,	Light-Dependent Resistor, 150V,	Light-Dependent Resistor, 300V,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
dark resistance	300000 Ω	3000000 Ω	18000 Ω	1500000 Ω	60000 Ω	300000 Ω
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	LIGHT-DEPENDENT RESISTOR	LIGHT-DEPENDENT RESISTOR	LIGHT-DEPENDENT RESISTOR	LIGHT-DEPENDENT RESISTOR	LIGHT-DEPENDENT RESISTOR	LIGHT-DEPENDENT RESISTOR
Maximum output voltage	300 V	300 V	150 V	300 V	150 V	300 V
peak wavelength	.6 nm	.6 nm	.6 nm	.6 nm	.6 nm	.6 nm
Maximum power dissipation	0.09 W	90 W	90 W	90 W	90 W	90 W
Semiconductor material	CDS	CDS	CDS	CDS	CDS	CDS
surface mount	NO	NO	NO	NO	NO	NO
Maker	Excelitas	Excelitas	Excelitas	Excelitas	Excelitas	-
Base Number Matches	-	1	1	1	1	-
