HGTP12N60D1

Description
Insulated Gate Bipolar Transistor, 21A I(C), 600V V(BR)CES, N-Channel, TO-220AB
CategoryDiscrete semiconductor    The transistor
File Size144KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

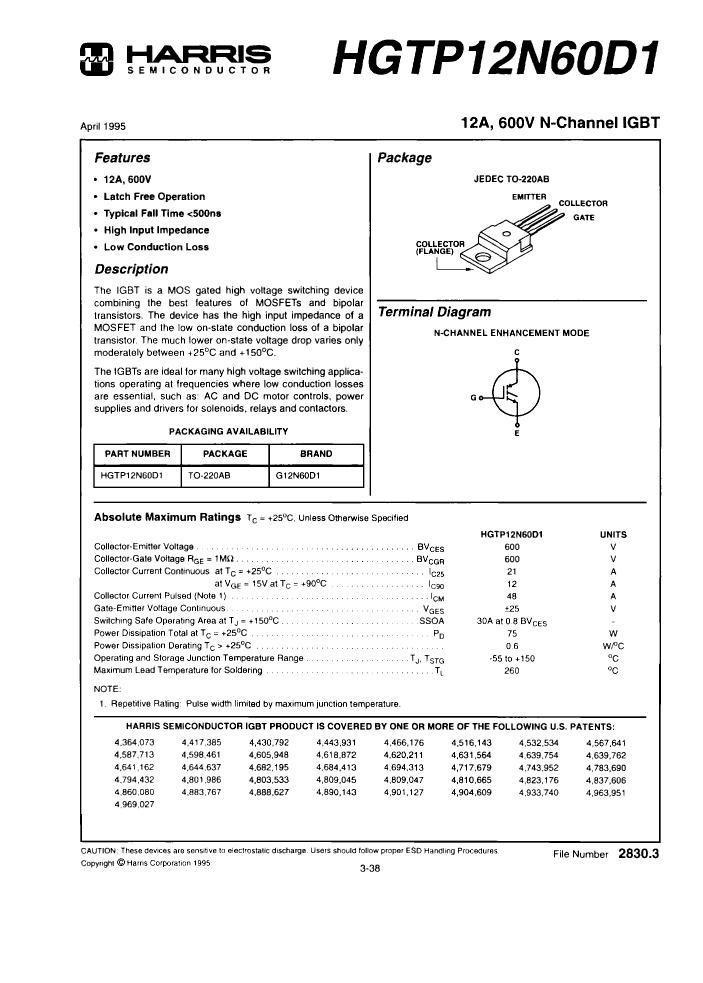

HGTP12N60D1 Overview

Insulated Gate Bipolar Transistor, 21A I(C), 600V V(BR)CES, N-Channel, TO-220AB

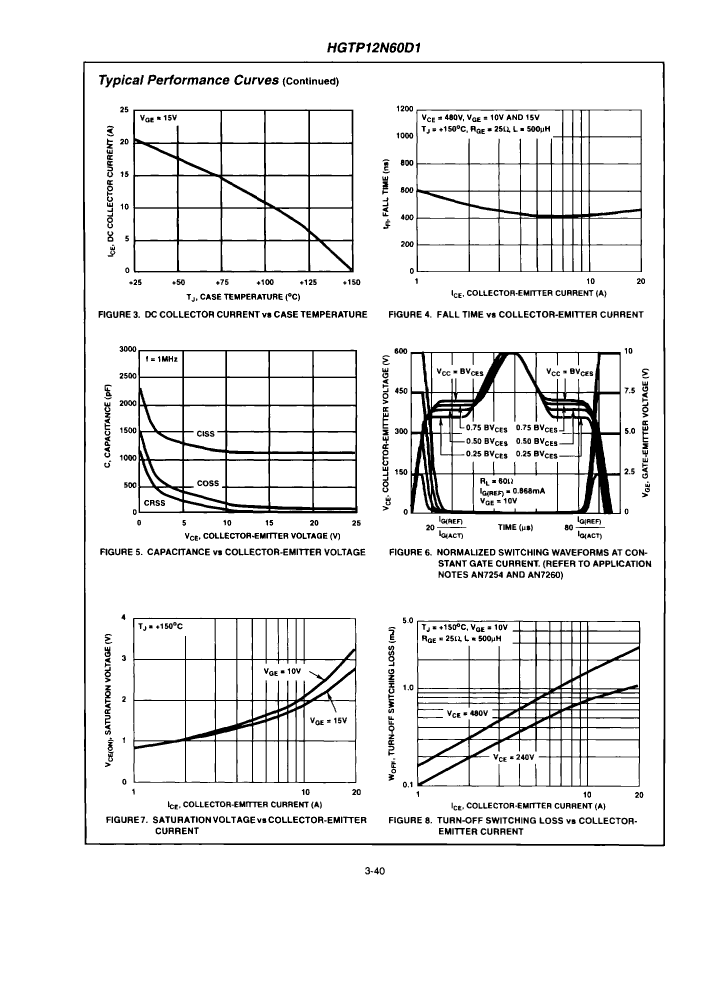

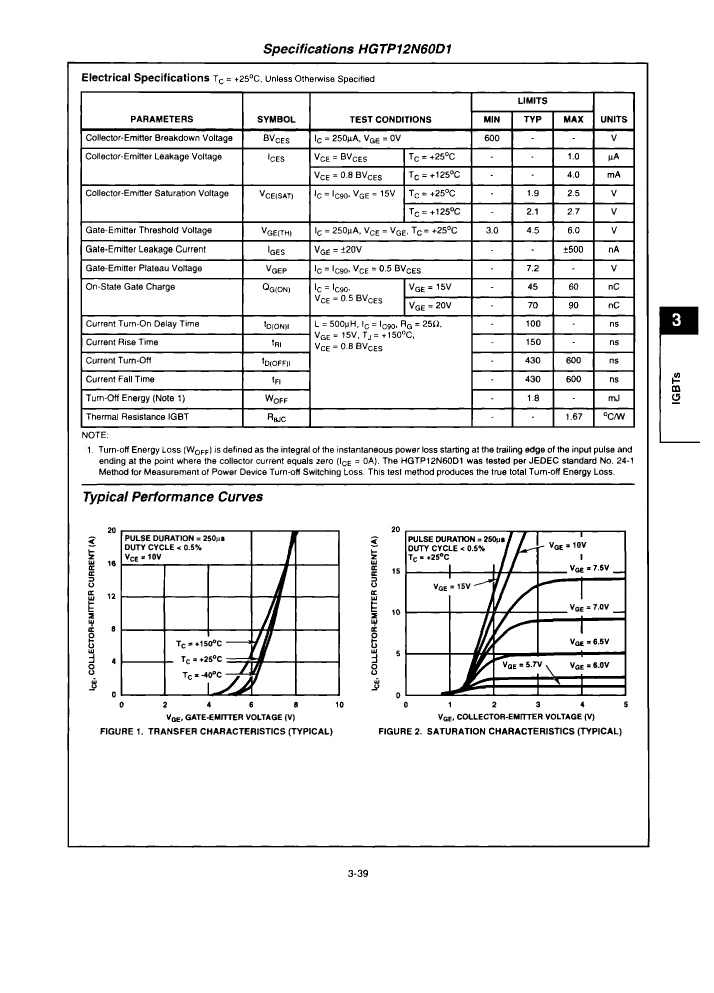

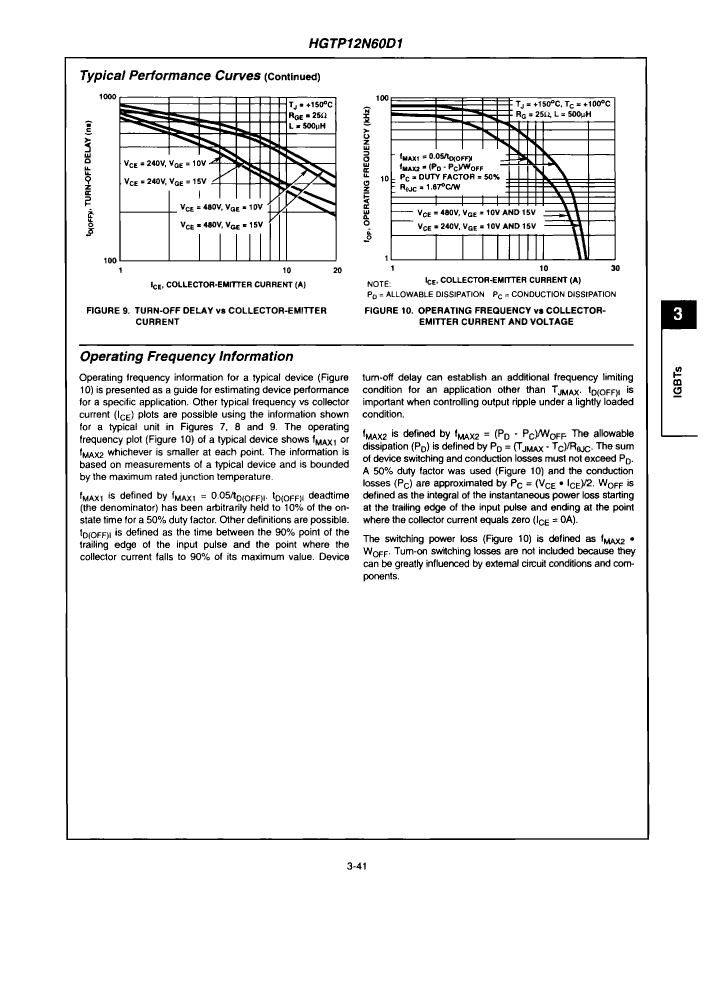

HGTP12N60D1 Parametric

Parameter NameAttribute value
MakerFairchild
package instructionFLANGE MOUNT, R-PSFM-T3
Reach Compliance Codeunknown
Shell connectionCOLLECTOR
Maximum collector current (IC)21 A
Collector-emitter maximum voltage600 V
ConfigurationSINGLE
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsMOTOR CONTROL
Transistor component materialsSILICON
Nominal off time (toff)430 ns
Nominal on time (ton)100 ns
