2-644889-3 datasheet, PDF - EEWORLD Datasheet

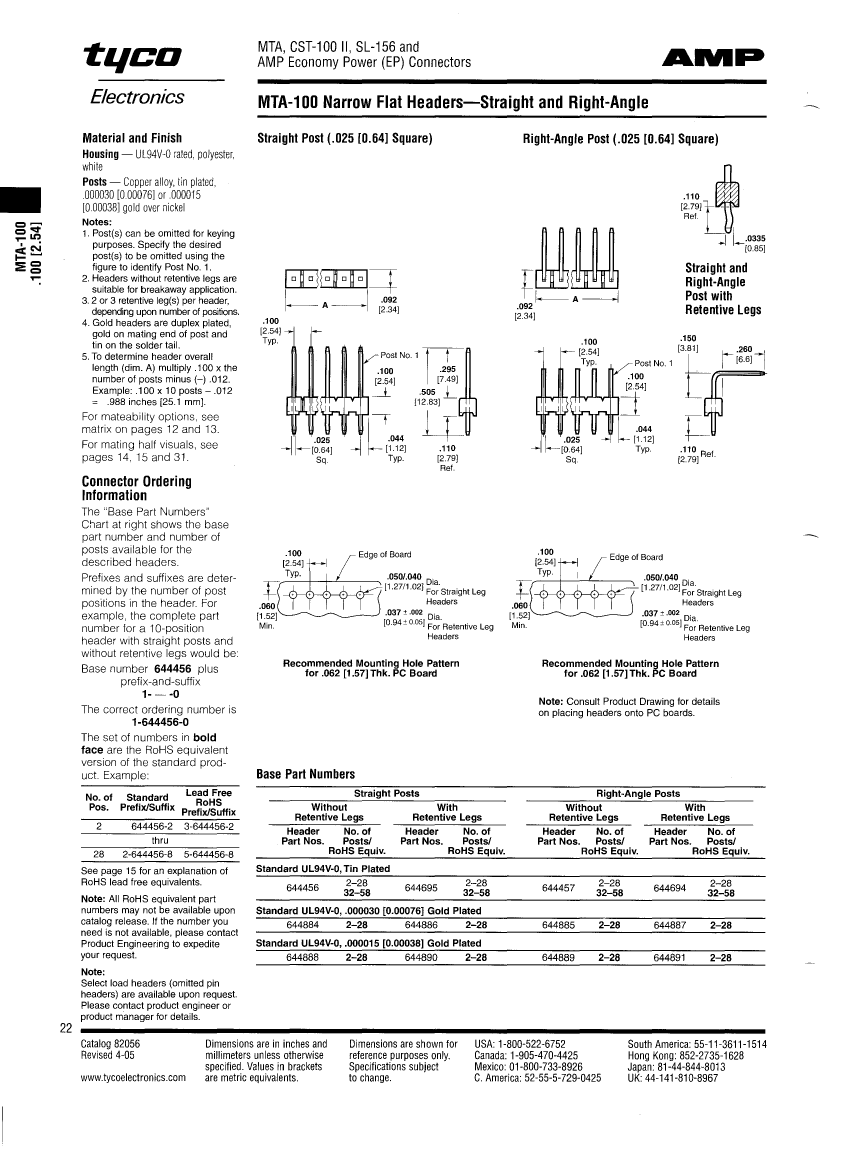

2-644889-3: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,23 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,NATURAL; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-644889-3 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,23 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,NATURAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.1 inch
subject depth	0.092 inch
body length	2.288 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	25 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYESTER
Manufacturer's serial number	644889
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE REVERSE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23
Evacuation force-minimum value	3.614 N
Base Number Matches	1
