MJ01-48SWMP-327 datasheet, PDF

MJ01-48SWMP-327: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle,; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

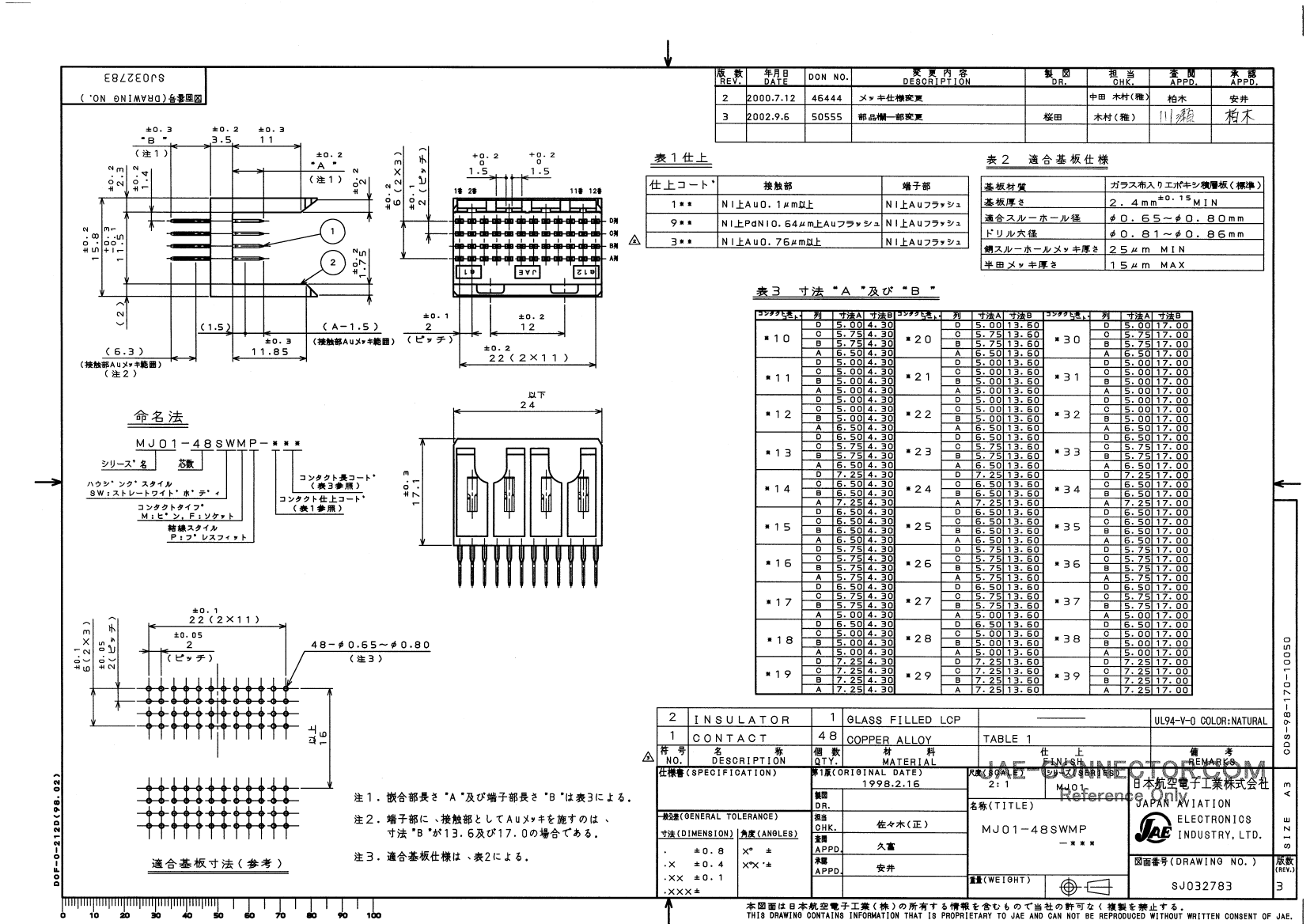

MJ01-48SWMP-327 Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CONFORMED TO IEC61076-4-104
body width	0.622 inch
subject depth	0.673 inch
body length	0.945 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	MJ01
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.535 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
