SF1050M-1/01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SF1050M-1/01

Preview

SF1050M-1/01: Description1A, 250VAC, MALE, MAINS POWER CONNECTOR; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SF1050M-1/01 Overview

1A, 250VAC, MALE, MAINS POWER CONNECTOR

SF1050M-1/01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: IEC 320; CSA; VDE, FASTON
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	1A, 250VAC
Manufacturer's serial number	SF1050M
Installation type	PANEL
Options	GENERAL PURPOSE
Total number of contacts	3

Preview

Download Datasheet

View All

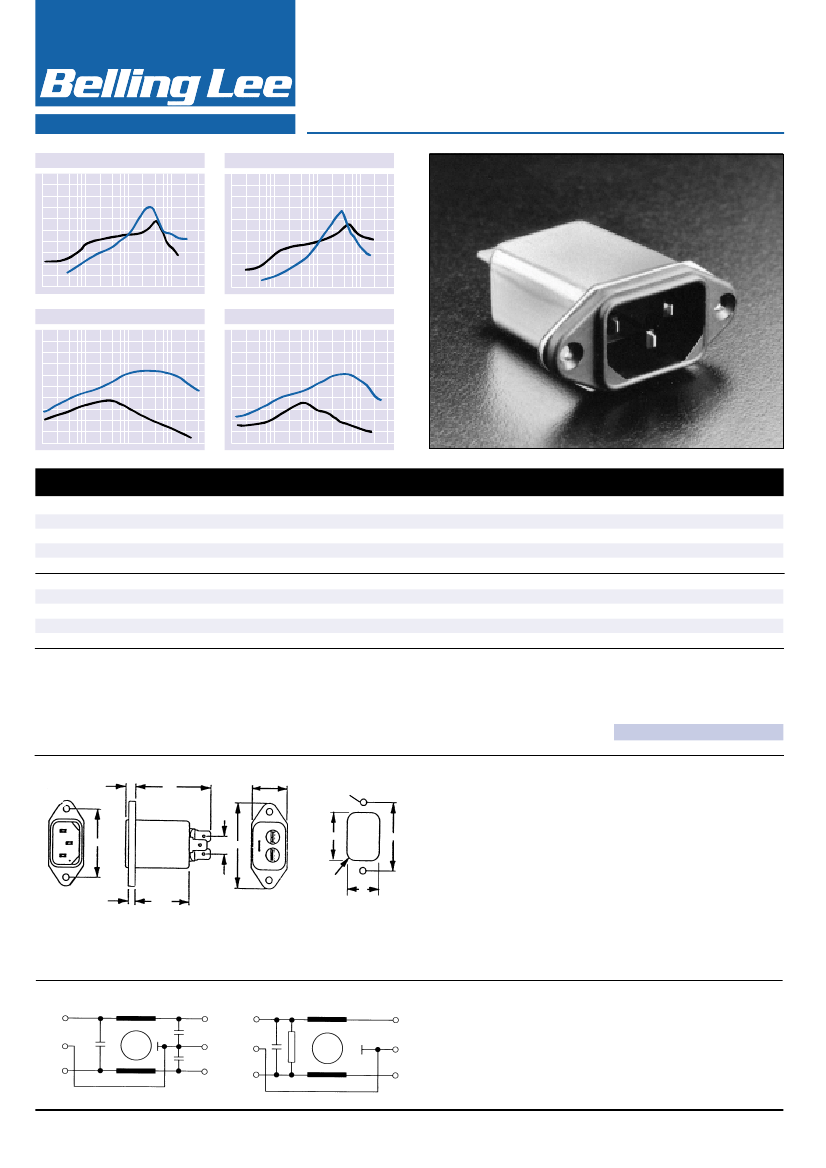

SF 1050

1 & 3 AMP STANDARD

db

COMPACT GENERAL PURPOSE IEC INLET FILTER

‘M’ VERSION FOR MEDICAL APPLICATIONS

6 & 10 AMP STANDARD

90

80

70

60

50

40

30

20

10

.1

.15

.4

1

4

10

Frequency MHz

40

100

500

SYMMETRIC

80

70

60

50

40

30

SYMMETRIC

ASYMMETRIC

20

10

.1

.15

.4

1

ASYMMETRIC

4

10

Frequency MHz

40

100

500

1 & 3 AMP MEDICAL

db

6 & 10 AMP MEDICAL

90

80

70

60

50

40

30

20

10

.1

.15

SYMMETRIC

80

70

60

50

40

30

SYMMETRIC

ASYMMETRIC

.4

1

4

10

Frequency MHz

40

100

500

20

10

.1

.15

.4

ASYMMETRIC

1

4

10

Frequency MHz

40

100

500

SF 1050

Rated

Current A

Leakage Current

@ 250V 50Hz

Inductance

mH

Connections

Input

Output

Resistor

Value MΩ

Approvals

Standard Version

SF 1050-1/01

SF 1050-3/01

SF 1050-6/01

SF 1050-10/01

Medical Version

SF 1050M-1/01

SF 1050M-3/01

SF 1050M-6/01

SF 1050M-10/01

1

3

6

10

1

3

6

10

0.2mA max

5µA max

3.0

0.85

0.35

0.16

3.0

0.85

0.35

0.16

IEC 320

6.3 x 0.8 Faston

Not Fitted

1

s

Approved

s

Temperature Range:

-25

0

C to +85

0

C

Operating Voltage:

250Vac

Operating Frequency:

0 to 400Hz

Test Voltage:

L+N to ground, 2700Vdc,

2 seconds

❏

Submitted for Approval

IEC 950

(EN 60950 Applications)

DIMENSIONS

All dimensions are nominal and in mm

5.7

48

10.5

40

28.5

PANEL

CUT OUT

40

22.5

ø3.6

50

3.5R

3.8

34.5

21

FRONT AND REAR MOUNTING

CIRCUIT DIAGRAMS

Standard Version

L

LINE

E

N

0.047µF (x2)

Medical Version (Suffix ‘M’)

L1

L

LOAD

LINE

E

N

L1

2x2200pF (Y)

L

1MΩ

E

L1

L

LOAD

E

N

0.047µF (x2)

N

L1

14

FOR MORE INFORMATION PLEASE PHONE

01638 665161

SF1050M-1/01 Related Products

	SF1050M-1/01	SF1050-10/01	SF1050-1/01	SF1050M-10/10
Description	1A, 250VAC, MALE, MAINS POWER CONNECTOR	Mains Power Connector, 10A, 250VAC, Male	1A, 250VAC, MALE, MAINS POWER CONNECTOR	Mains Power Connector, 10A, 250VAC, Male
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARDS: IEC 320; CSA; VDE, FASTON	STANDARDS: IEC 320; CSA; VDE, FASTON	STANDARDS: IEC 320; CSA; VDE, FASTON	STANDARDS: IEC 320; CSA; VDE, FASTON
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO
Power Connector Ratings	1A, 250VAC	10A, 250VAC	1A, 250VAC	10A, 250VAC
Manufacturer's serial number	SF1050M	SF1050	SF1050	SF1050M
Installation type	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	3	3	3	3
