2-640621-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-640621-3

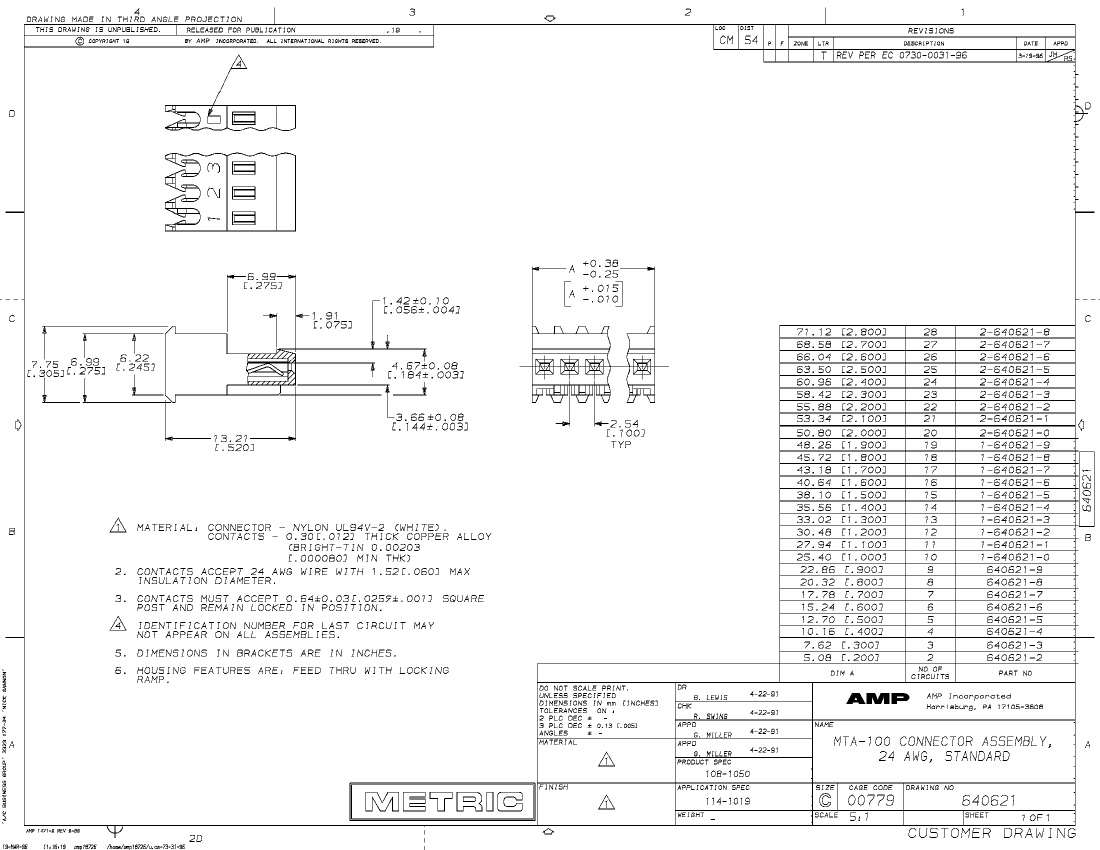

2-640621-3: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,NATURAL; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-640621-3 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,NATURAL

2-640621-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	AMP
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	640621
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	23
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

2-640621-3 Related Products

	2-640621-3	2-640621-1	2-640621-2	2-640621-4	2-640621-5	2-640621-6	2-640621-7	8122-421-8131-30
Description	HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,25 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,26 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,27 CONTACTS,SKT,0.1 PITCH,NATURAL	D Subminiature Connector, 15 Contact(s), Female and Male, Solder Terminal, Receptacle-plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown
Other features	AMP	AMP	DAISY CHAIN	DAISY CHAIN	DAISY CHAIN	DAISY CHAIN	DAISY CHAIN	OTHER STACKING CONNECTOR: 15 CONTACTS, 2/A SHELL SIZE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE AND MALE
Number of rows loaded	1	1	1	1	1	1	1	2+2
Total number of contacts	23	21	22	24	25	26	27	30
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Contact to complete cooperation	TIN LEAD	TIN LEAD	SN	SN	SN	SN	SN	-
Contact completed and terminated	TIN LEAD	TIN LEAD	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	-
Contact material	COPPER ALLOY	COPPER ALLOY	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
JESD-609 code	e0	e0	e4	e4	e4	e4	e4	-
Base Number Matches	1	1	1	1	1	1	1	-
body width	-	-	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	1.244 inch
subject depth	-	-	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.77 inch
body length	-	-	2.2 inch	2.4 inch	2.5 inch	2.6 inch	2.7 inch	1.543 inch
Body/casing type	-	-	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE-PLUG
Contactor design	-	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-
contact mode	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED
Contact resistance	-	-	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	20 mΩ
Contact style	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	-	-	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	2100VAC V
Insulation resistance	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	1000000000 Ω
Insulator color	-	-	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	WHITE
insulator material	-	-	NYLON	NYLON	NYLON	NYLON	NYLON	GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER
Plug contact pitch	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.109 inch
Maximum operating temperature	-	-	105 °C	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Rated current (signal)	-	-	4 A	4 A	4 A	4 A	4 A	3 A
Guideline	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	CUL; UL
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	-	-	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.126 inch
Maximum wire diameter	-	-	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	-
Minimum wire diameter	-	-	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	-
