223002-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 223002-9

223002-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,270 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

223002-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,270 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL

223002-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	MATING POST LENGTH=0.256
body width	0.701 inch
subject depth	0.669 inch
body length	4.247 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
maximum insertion force	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223002
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	270
Evacuation force-minimum value	.1112 N
Base Number Matches	1

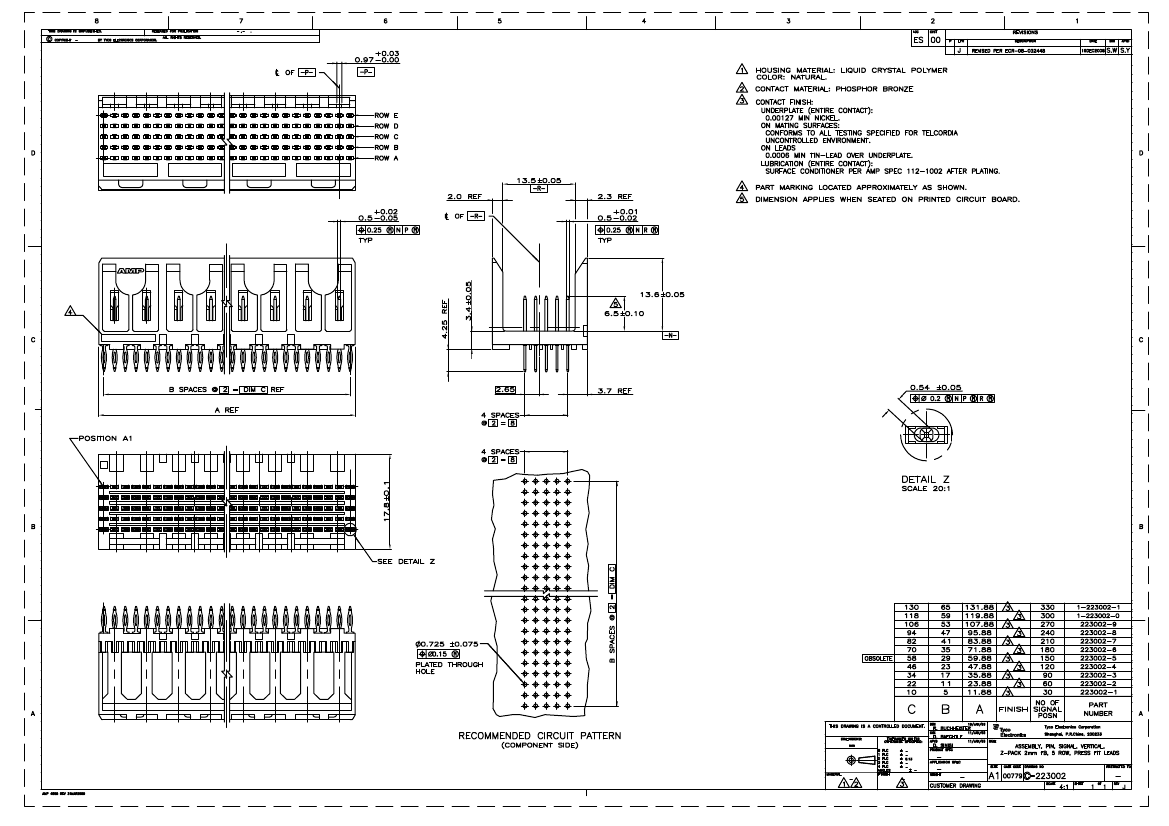

Preview

Download Datasheet

View All

223002-9 Related Products

	223002-9	353-1-014-0-T-RT1-0370	353-1-018-0-F-RT0-0370	223002-5	223002-8
Description	HEADER CONNECTOR,PCB MNT,RECEPT,270 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal	Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL
Reach Compliance Code	unknow	compliant	compliant	unknown	unknown
body width	0.701 inch	0.043 inch	0.043 inch	0.701 inch	0.701 inch
subject depth	0.669 inch	0.071 inch	0.071 inch	0.669 inch	0.669 inch
body length	4.247 inch	0.551 inch	0.709 inch	2.357 inch	3.775 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	SN	AU	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	LIQUID CRYSTAL POLYMER (LCP)	THERMOPLASTIC	THERMOPLASTIC	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223002	353	353	223002	223002
Plug contact pitch	0.079 inch	0.039 inch	0.039 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	5	2	2	5	5
Number of rows loaded	5	1	1	5	5
Maximum operating temperature	125 °C	105 °C	105 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	STAGGERED	STAGGERED	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	3.0988 mm	3.0988 mm	2.0066 mm	2.0066 mm
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL	UL	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	PRESS FIT	SURFACE MOUNT	SURFACE MOUNT	PRESS FIT	PRESS FIT
Total number of contacts	270	14	18	150	240
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible
Other features	MATING POST LENGTH=0.256	-	-	MATING POST LENGTH=0.256	MATING POST LENGTH=0.256
Body/casing type	RECEPTACLE	-	-	RECEPTACLE	RECEPTACLE
Contact completed and terminated	TIN OVER NICKEL	-	-	TIN OVER NICKEL	TIN OVER NICKEL
Durability	250 Cycles	-	-	250 Cycles	250 Cycles
maximum insertion force	.695 N	-	-	.695 N	.695 N
Match contact row spacing	0.079 inch	-	-	0.079 inch	0.079 inch
Plating thickness	FLASH inch	-	-	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING
Terminal length	0.167 inch	-	-	0.167 inch	0.167 inch
Evacuation force-minimum value	.1112 N	-	-	.1112 N	.1112 N
